Specification:

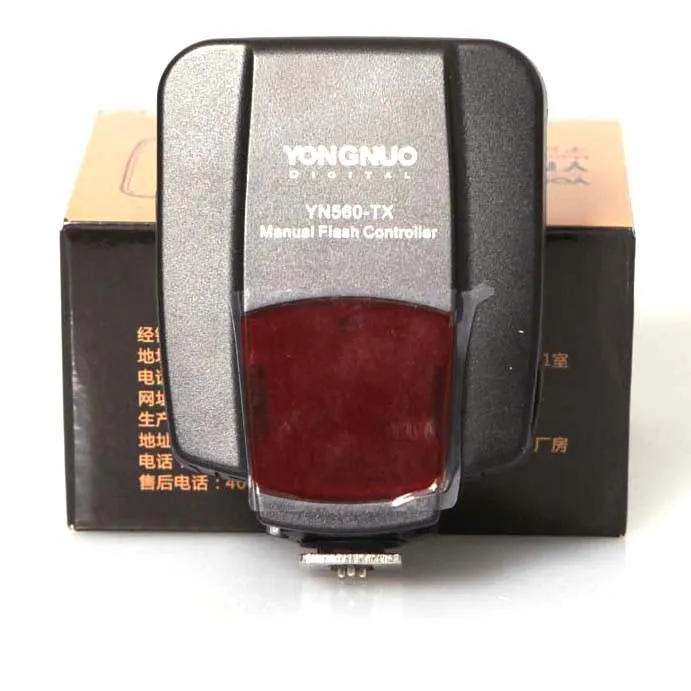

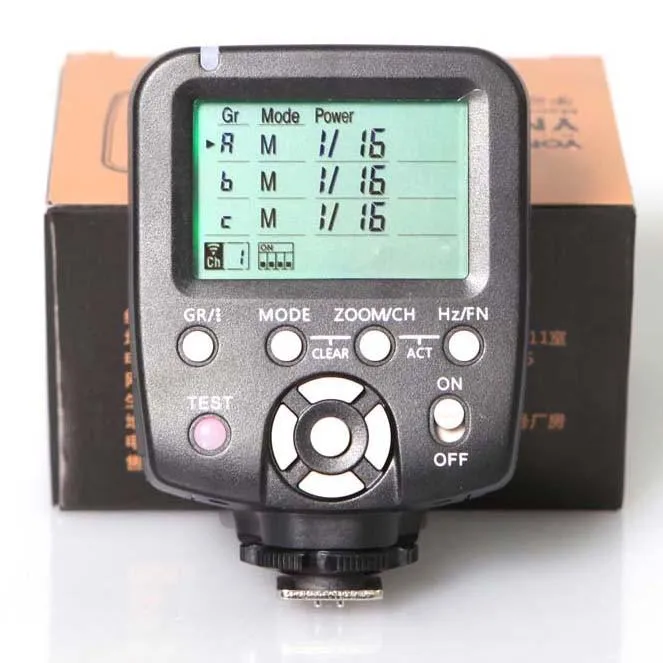

YN560-TX, Manual Flash Controller, made specially for Yongnuo YN-560 III made after January of 2013 year, but if you want to use it with our other Yongnuo flash speedlite, you just need the transceiver of Yongnuo RF-602, RF-603, RF-603 II, because YN560-TX has built-in wireless trigger system.
You can use it not only as flash controller function, but aslo use it as remote control function.
Main function:

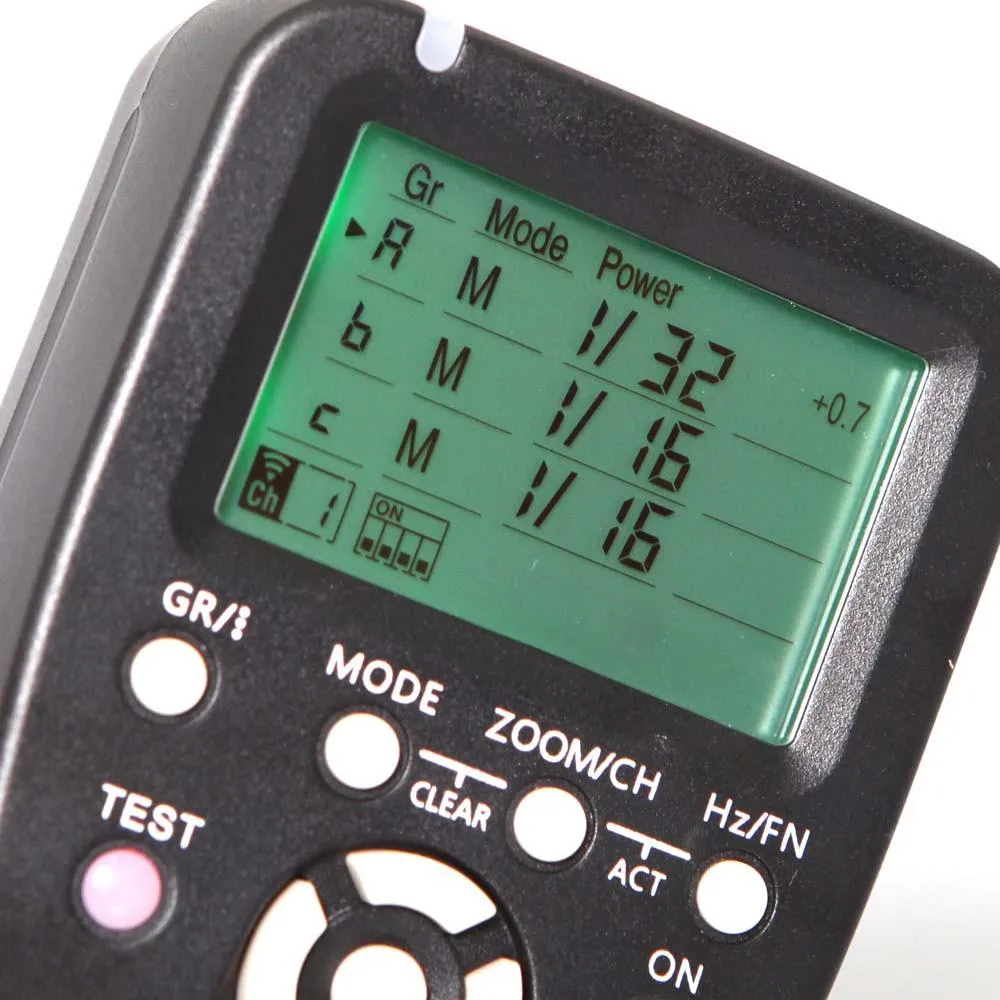

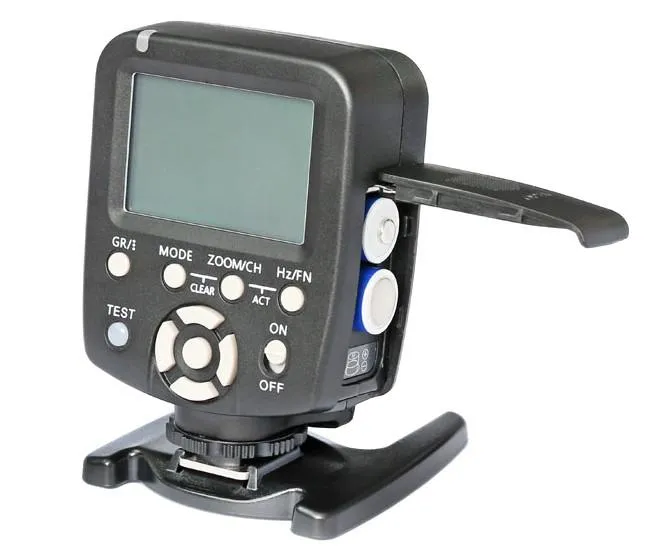

FSK 2.4G wirelss controllerM / Multi Two modeRemote Control of Flash output and Zoom per group, up to 6 groups, A/B/C/D/E/FZoom range: 24-105mShutter Interface: 2.5mm shutter interfaceCompatible with YN-560 III, RF-602, RF-603, RF-603 II16 ChannelsLarge and Clear Screen, user friendly interface100 meters transmission RangeBattery Type: AA*2Stand-by time: 120hours
Features:
1, Wireless Triggering Function
a, If you use it with YN-560 III, you need to activate the group function of YN-560 III with YN560-TX before you use them together, ( more detailed, you can see our manual. )
b, If you use it with other Yongnuo flash, like YN-560 II, YN-565EX, YN-568EX ( Manual mode ), you need a transceiver of Yongnuo RF-602, RF-603, RF-603 III.
2, Wireless Shutter Receiver Function
You can mount YN560-TX into Camera, use shutter release cable ( LS-2.5mm Series ) to connect it with your camera, and set RF-602, RF-603, RF-603 II in " transceiver " state, and then you can shutter release your camera
and you can also mount one flash into the hot shoe of flash traceiver, it also can be triggered synchronously.
Compatibility:
--- Yongnuo YN-560 III made after January of 2013 year.
--- Yongnuo RF-602 transmitter, RF-603 , RF-603 II
--- Yongnuo YN-560 II, YN-468 II, YN-565EX, YN-568EX in manual mode ( You need to use RF-602, RF-603, RF-603 II together. )
--- ALL Canon and Nikon DSLR Camera.
What's included:

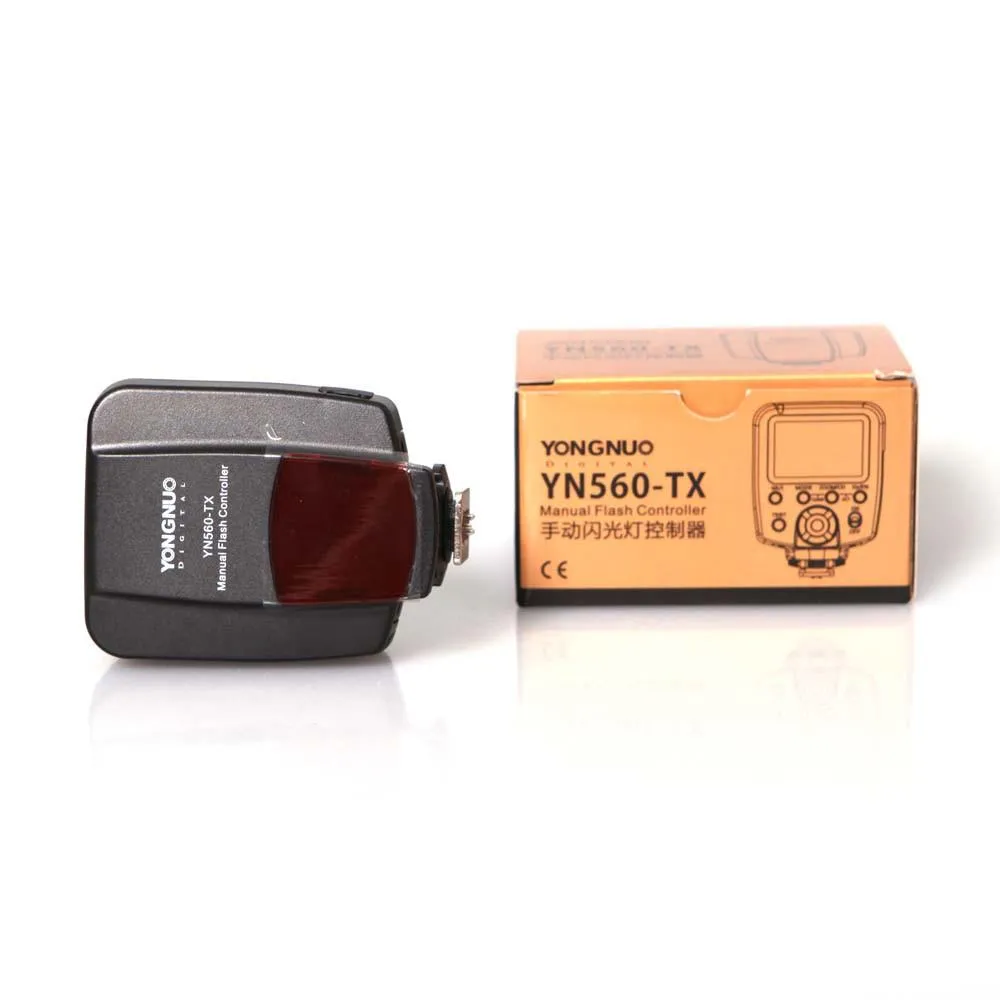

- 1 x YN560-TX Flash Controller
- 1 x Manual in English and Chinese
- 1 x Original box
