Name: Fox & Hound™ Premium Tone & Inductive Amplifier Probe Kit: Overload Protection Up to 120VAC - (3399)
SKU: 269054

Product Details ＋

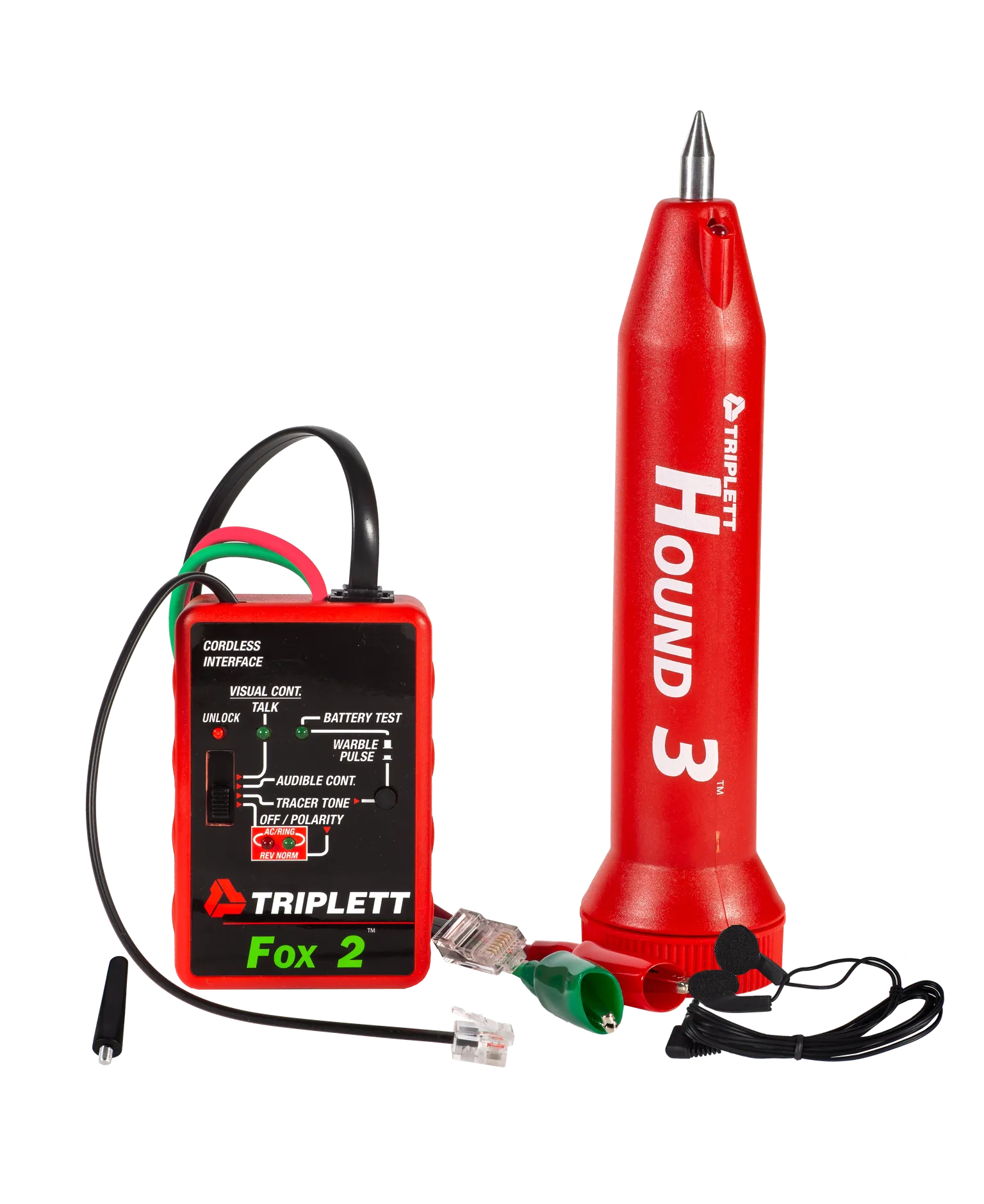

The FOX 2 and HOUND 3 wire tracing kit consists of a premium FOX 2 Tone Generator (Toner) and a newly designed HOUND 3 Inductive Amplifier (Probe).

DESCRIPTION

The FOX 2 and HOUND 3 wire tracing kit consists of a premium FOX 2 Tone Generator (Toner) and a newly designed HOUND 3 Inductive Amplifier (Probe). The FOX 2 is a battery operated handheld lightweight multi-function Toner that generates multiple tones, performs some basic telephone line tests (loop mA and line polarity), provides a visual and audible continuity test, and incorporates Triplett’s True Trace and TripLatch tests. The HOUND 3 is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs (the HOUND and HOUND 2) with built-in LED illuminators, a bandpass filter, an earphone jack, and an easy access battery cover. An included convenient carrying case (with belt loop attachment) provides ease of use and protective storage for the FOX 2 and HOUND 3. Founded in 1904, U.S.-based Triplett Test Equipment continues to be on the leading edge of specialized testers. Whether supplying vital test equipment to the U.S. Signal Corps during WWII, or providing the railroad industry with essential testers to ensure the safety of their crews and the public, Triplett prides itself in developing innovative, reliable, and durable test equipment for every technician--that also won't break the bank.

CATEGORY:

Features

The Fox & Hound wire tracing kit consists of a versatile Fox 2 Tone Generator (Toner) and a high performance Hound 3 Inductive Amplifier (Probe). This kit includes Fox 2, Hound 3, plastic duck bill, metal duck bill, headphones, and a sturdy weatherproof carry case. 3 year warranty.
The Fox 2 is a battery operated handheld multi-function Toner that generates multiple tones (Pulse or Warble), performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and integrates our own True Trace and TripLatch tests while providing overload protection up to 120 VAC.
The Hound 3 is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs with built-in LED headlights to illuminate dark areas and reduce fluorescent light noise, a bandpass filter to suppress unwanted frequencies, an earphone jack for noisy or quiet work areas, and an easy access battery cover.
This Wire tracing kit a lightweight easy to use kit, constructed with high quality materials. Portable design allows you to trace wires whenever needed. Find non-energized wires in walls, ceilings, and floors. Inductive tracer with two probes indicates magnetic fields with audio and visual signals. Tracer filter helps suppress 60 Hz and high-frequency noise. Tone generator has three tones for guiding tracer to wires.
The toner can generate a signal up to 1000 feet

Product Overview

Triplett Solutions for Every Contractor

The Triplett Fox & Hound Premium is a lightweight easy to use wire tracing kit, constructed with high quality materials. The portable design allows you to trace wires whenever needed.

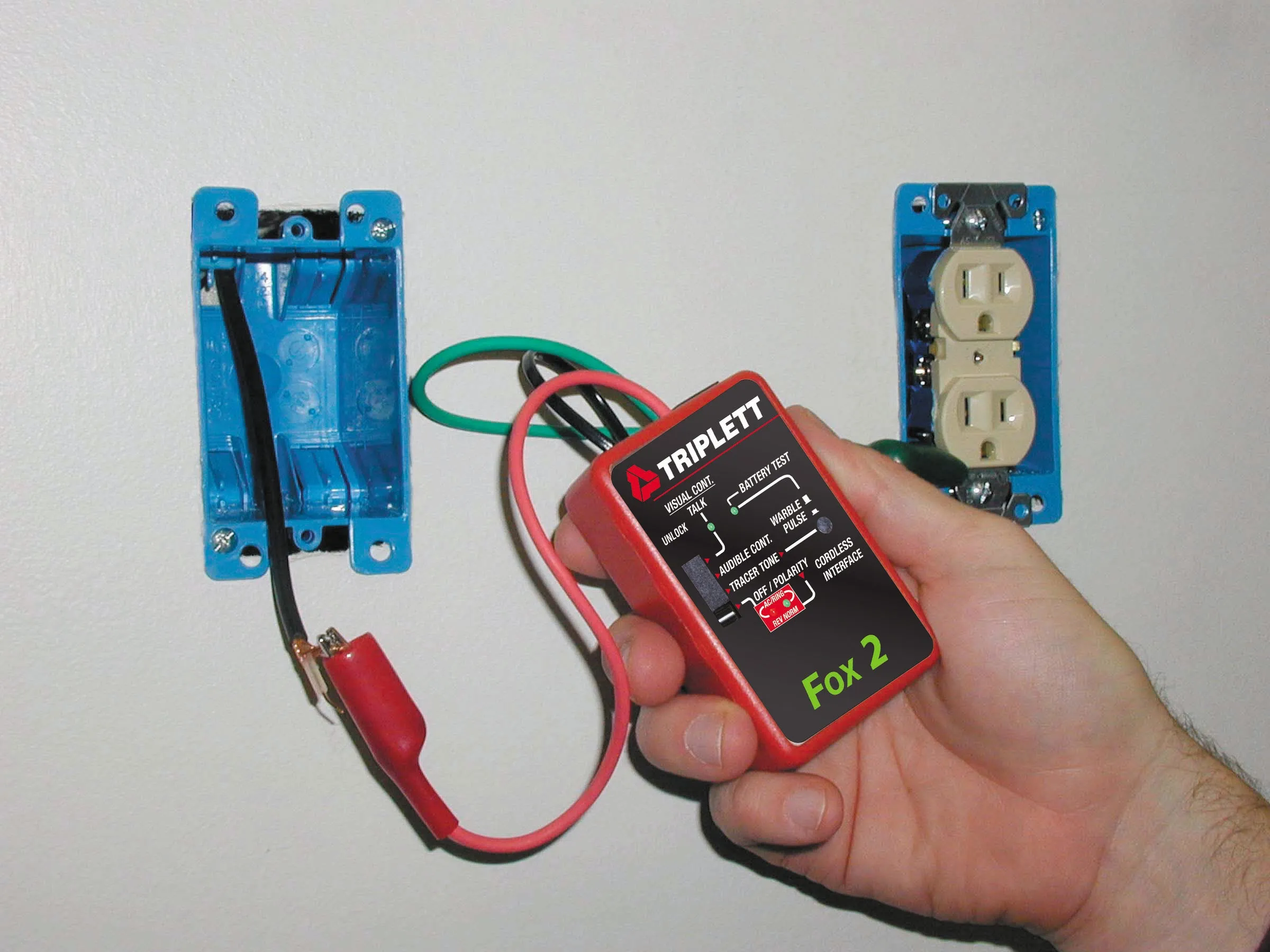

Find non-energized wires in walls, ceilings, and floors. The inductive tracer with two probes indicates magnetic fields with audio and visual signals. A built-in filter helps suppress 60 Hz and high-frequency noise. Tone generator has three tones for guiding the tracer to wires.

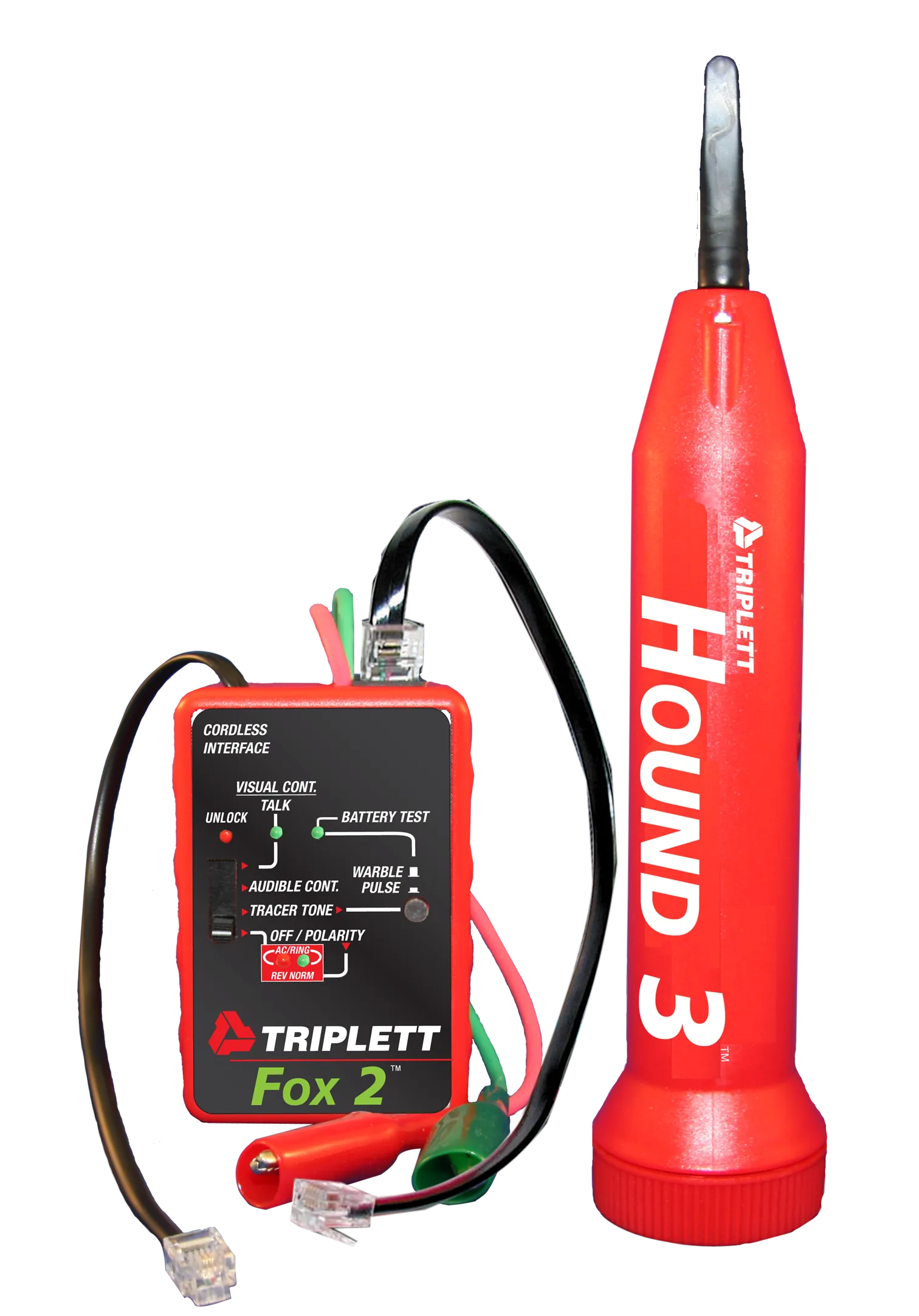

The Triplett Fox & Hound wire and cable tracing kit consists of the versatile Fox 2 Tone Generator (Toner) and the high-performance Hound 3 Inductive Amplifier (Probe).

Trace electrical wire, twisted pair, LAN cable, multi-conductor cable, telephone cable, and more
Detect trace tones up to 12" away
3 methods of connectivity: RJ11, RJ45 or alligator clips

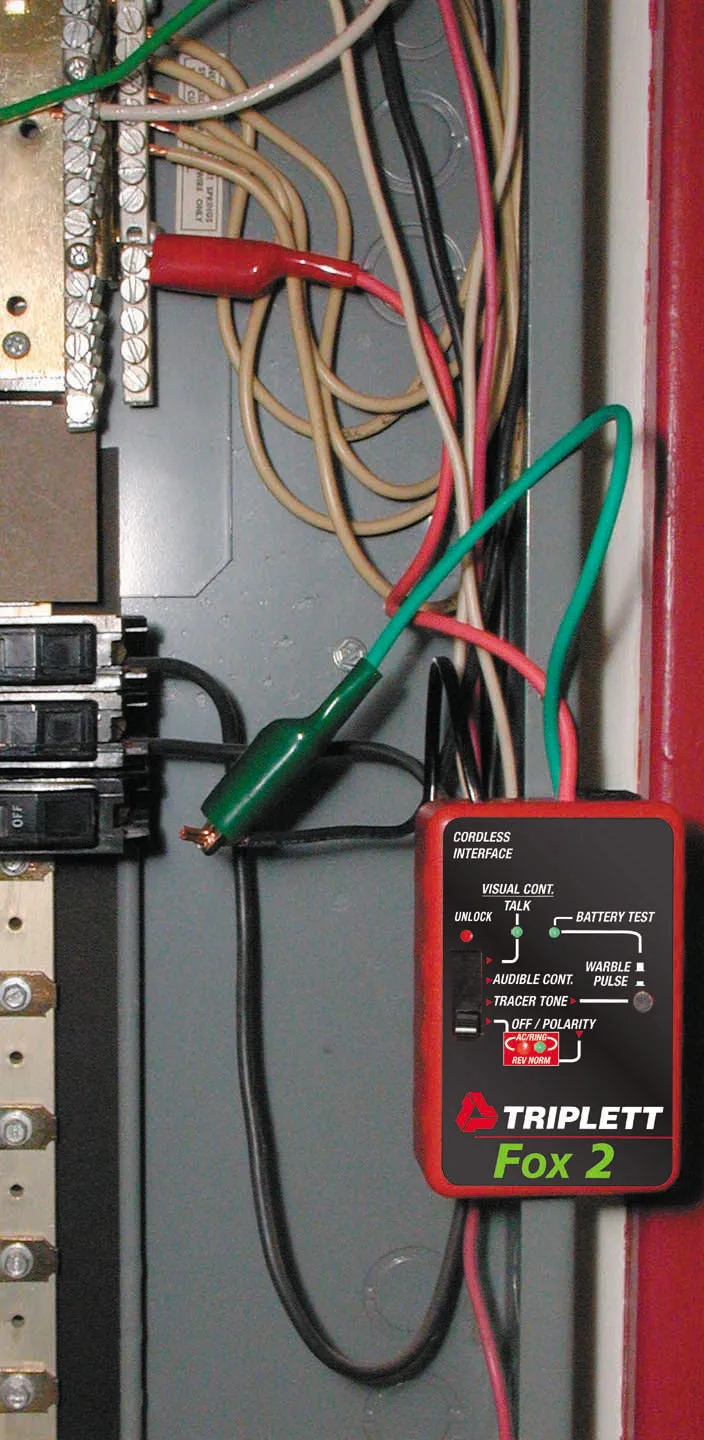

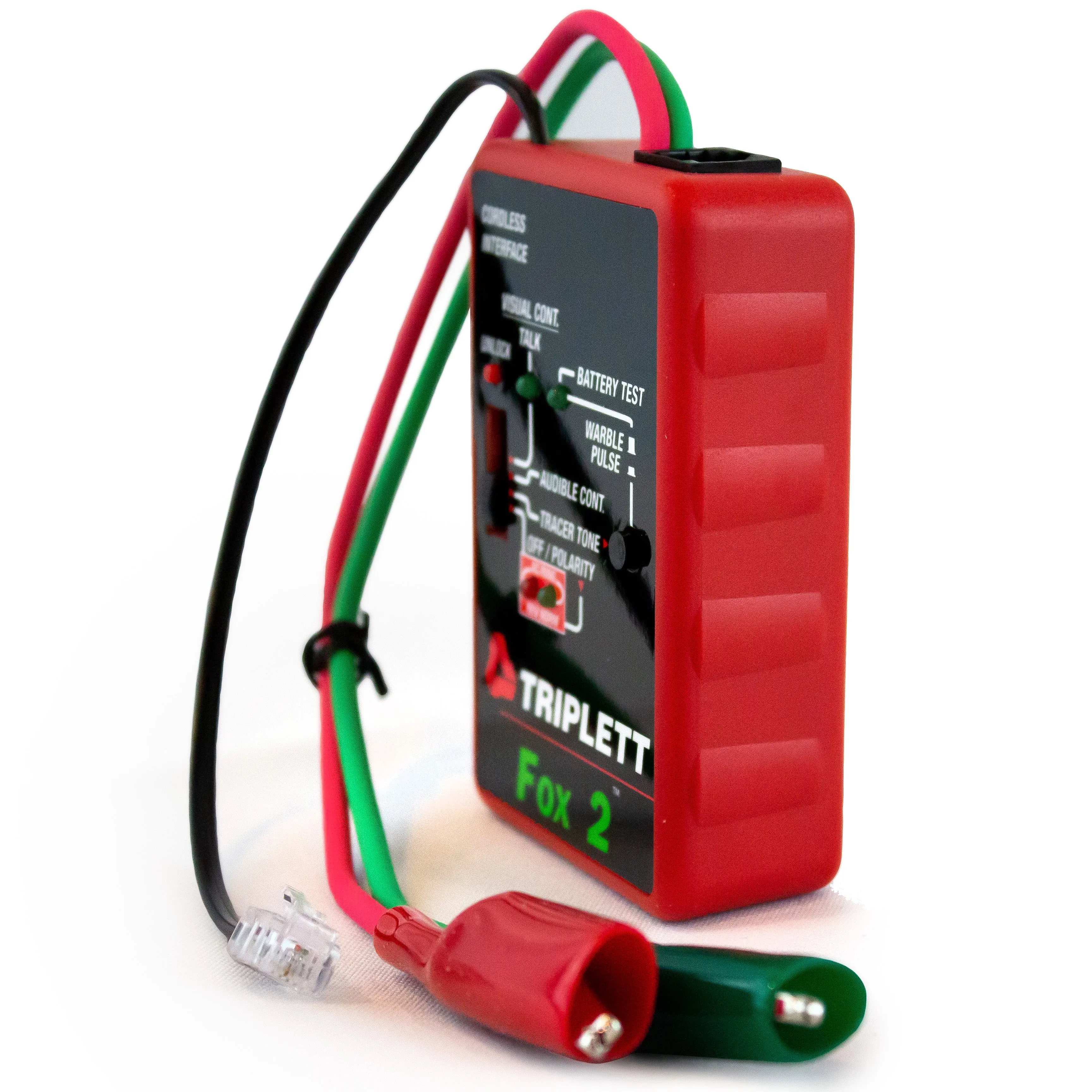

Fox 2 Tone Generator (Toner)


Overload Protection Test a variety of cables with specialized RJ-11, RJ-45, and Alligator clips adapters. With overload protection, the Fox 2 can tolerate momentary and accidental 120 VAC line crosses without damage.	Cordless Phone Interface Send a tracer tone to the base station of a cordless telephone and monitor the tone with the cordless handset. Red and Green LEDs light up to indicate normal and reversed polarity. They also light at the same time for visual ringer indication. Performs basic telephone line tests (loop mA, line polarity, and ringing voltage).	TrueTrace Cadence Shift and Selectable Tracer Tone Positively identify cables or cable pairs with a momentary short (of non-live wire). The cadence of the tracer tone changes, confirming the ID. Choose between a high output warble or pulse tracer tone, useful if other toners are being used in the vicinity.	Tone/Battery LED An LED indicator visually confirms that the tracer tone is on and shows the battery status. A magnetic back allows you to stick the Fox 2 to steel surfaces.

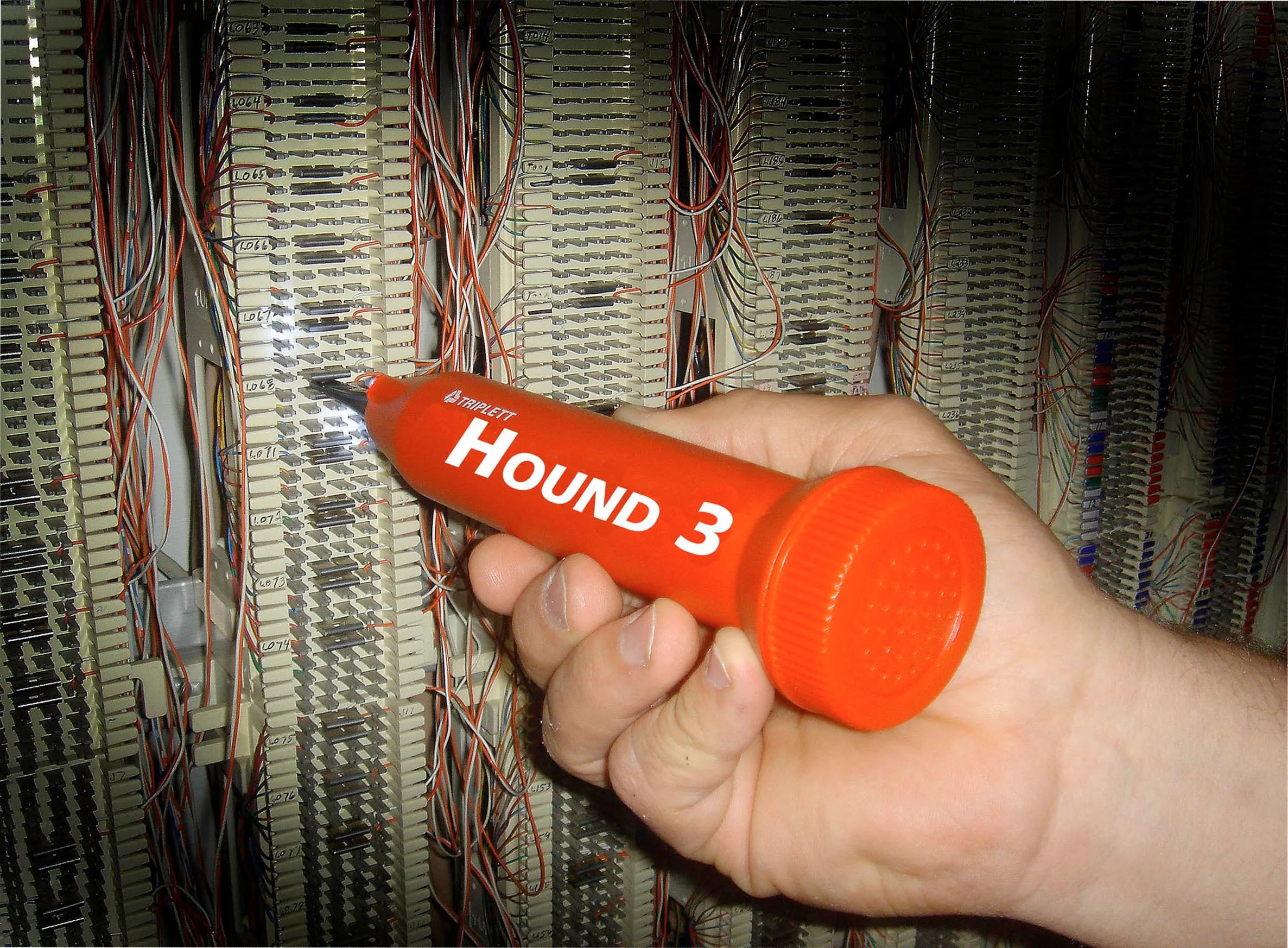

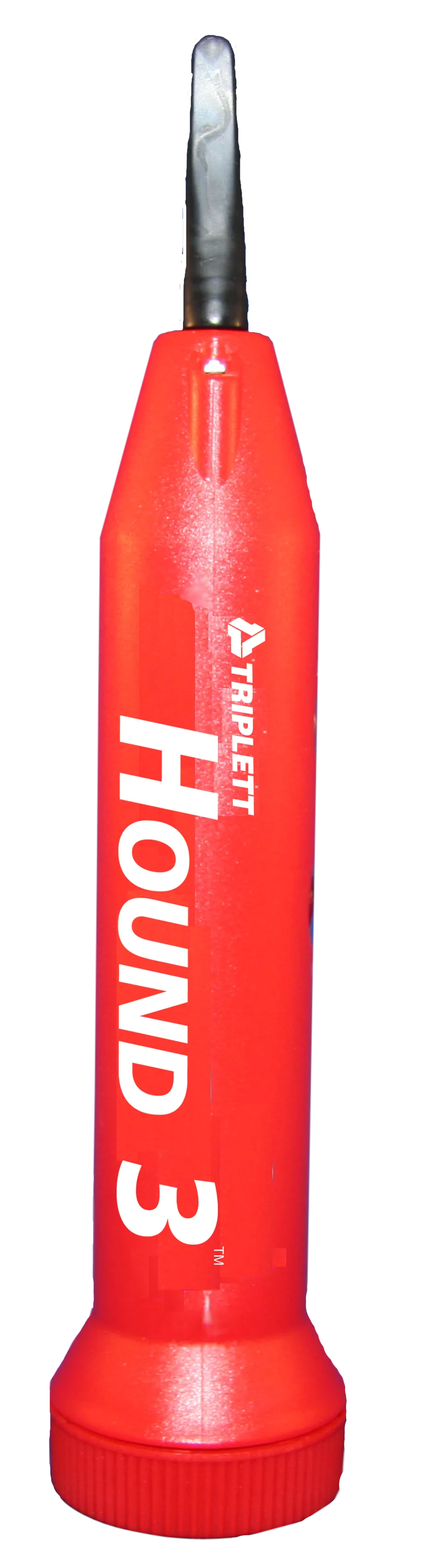

Hound 3 Inductive Amplifier (Probe)

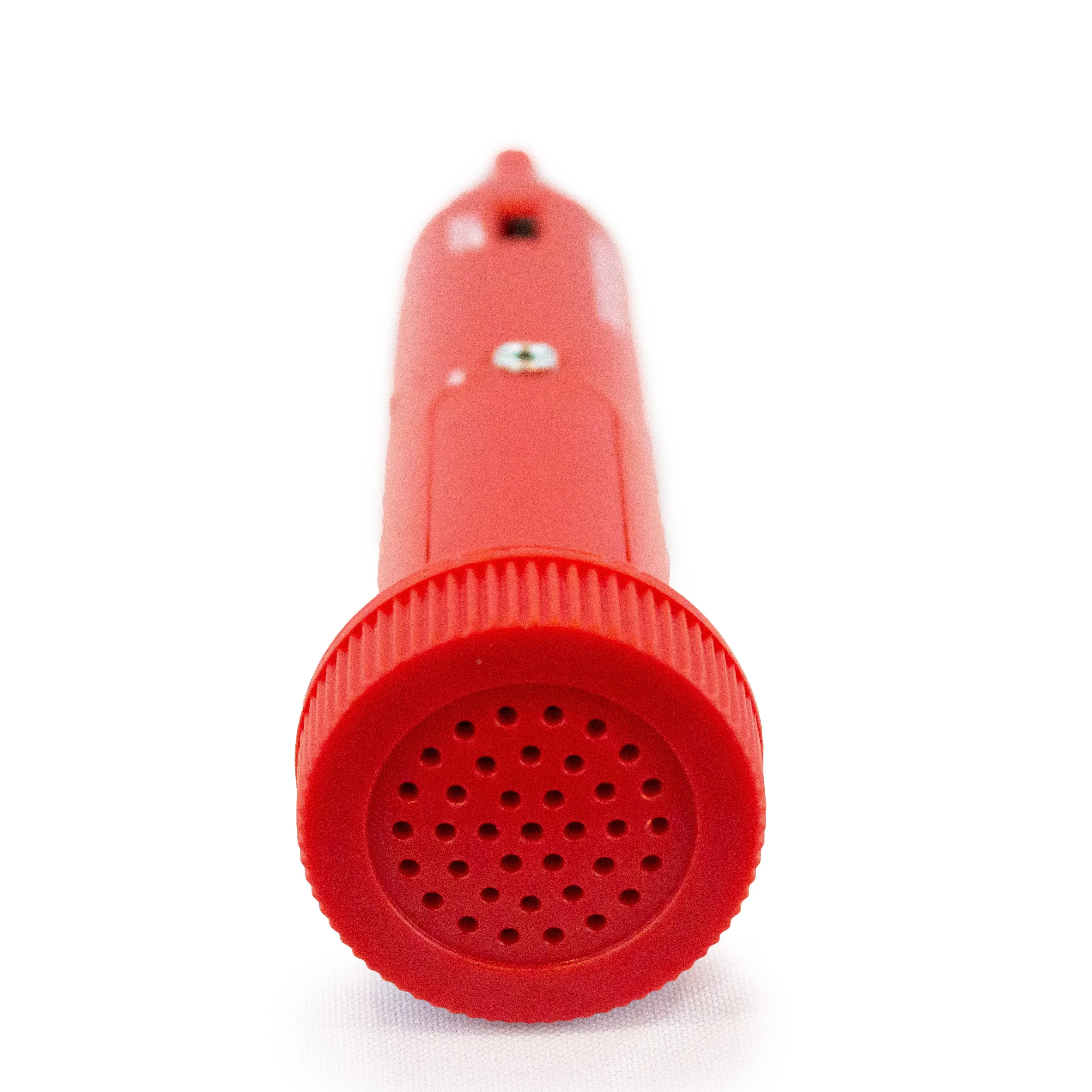

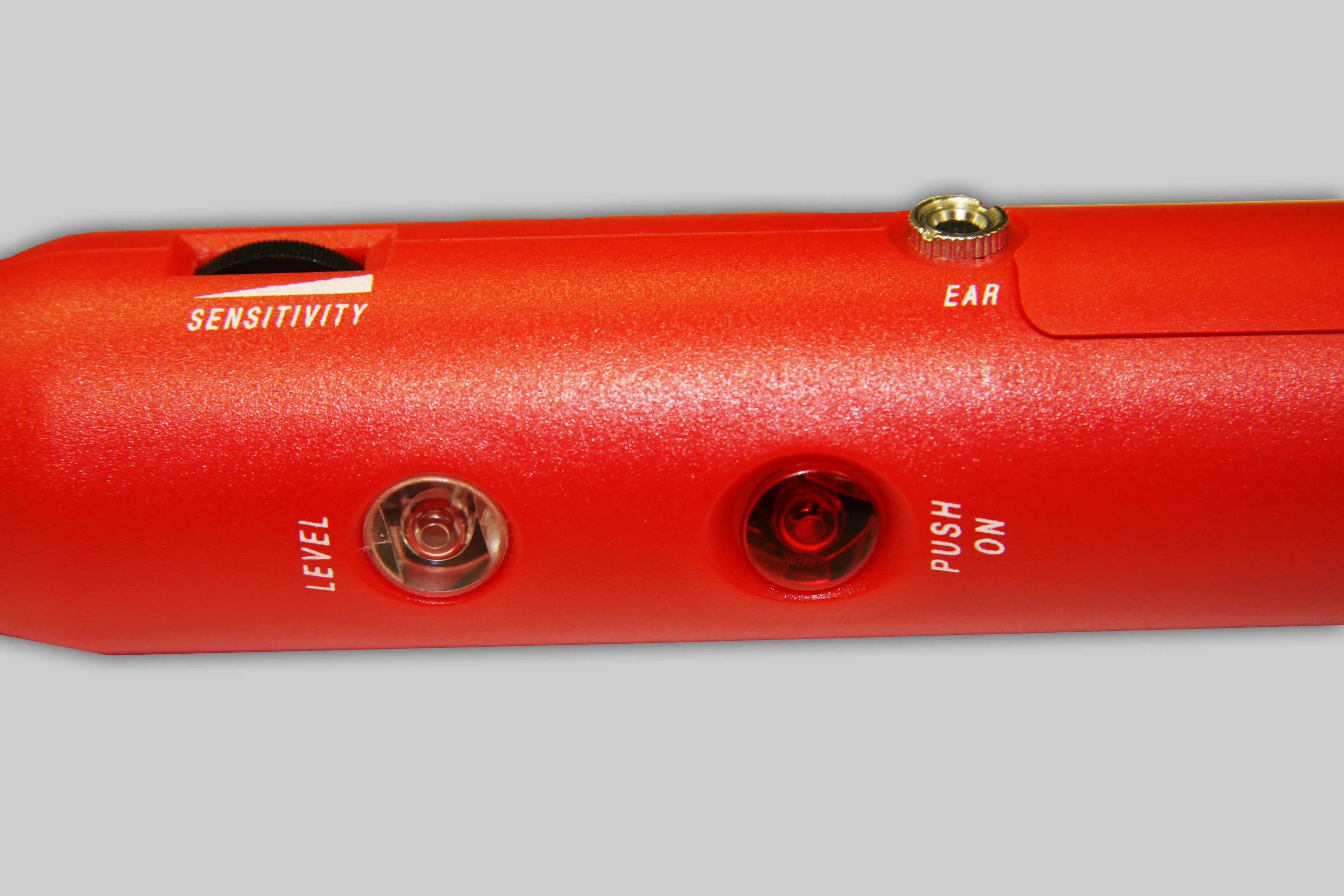

Adjustable Sensitivity and Loudness Control The Hound 3 identifies Fox 2's tracer tone up to 12 inches away with a thumbwheel sensitivity control. Reduce and increase the loudness based on the surroundings (high acoustic noise, quiet office environments) for effective and unobtrusive testing.	Filter Out 60Hz Noise Although the Fox 2 is not affected by 60Hz noise, the Hound 3 will pick it up and amplify it. A bypass filter is built in to suppress the humming and buzzing usually associated with 60Hz noise while improving sensitivity to the Fox 2 Toner.	Built-In Signal Strength Indicator and Headlight A bright red LED signal strength indicator maintains sensitivity, even when an earphone is used. A built-in headlight allows you to illuminate dark areas and reduce fluorescent light noise interference with the press of a button.	Built-In Signal Strength Indicator and Headlight The Hound 3 features a rugged and moisture-resistant 1.5-inch Mylar cone speaker with a high strength alnico magnet. For quiet or noisy environments, the Hound 3 accepts earphones with a standard 1/8-inch (3.5 millimeter) mini phone plug in either mono or stereo. Earphones with shielded wires are recommended to reduce the possibility of feedback from the cable to the probe tip.



Application	Traces various types of cable including electrical wire, twisted pair, LAN cable, multi-conductor cable, telephone cable, alarm cable and more	Traces wires from 0 ~ 250VAC, including 12, 24, 28, 120, 220, and 240VAC	Trace security, thermostat, data, telephone,audio and other types of wiring	Locate and trace cables on inactive or active networks, live or dead phone lines, as well as coaxial video cabling systems	Traces various types of cables including electrical wire, twisted pair, LAN cable, multi-conductor cable, telephone cable, alarm cable and more	Trace various types of unenergized cable including electrical wire, twisted pair, LAN, multi-conductor, telephone, alarm and more
Detect Trace Tones up to 12" Away	✓	✓	✓
Probe LEDs Light Up Dark Areas	✓	✓		✓	✓
Audible and Visual Notification	✓	✓	✓	✓	✓	✓
Built-in Earphone Jack	✓		✓	✓
Adjustble Sensitivity	✓	✓	✓		✓	✓
Connectivity	RJ11, RJ45 or Alligator Clips	Flat Blade, Pointed Probe or Alligator Clips	RJ11 or Alligator Clips	F-Type Connector, RJ11, RJ45 or Alligator Clips	RJ11, RJ45 or Alligator Clips	RJ11 or Alligator Clips

Specifications

Operating Frequency (RF)	400kHz to 500kHz
Operating Frequency (AF)	800Hz to 2400Hz
Output Voltage (RF)	adjustable 5vpp to 30vpp (open circuit)
Output Voltage (AF)	fixed 10vpp (open circuit)
Tracer Tone	Warble or Pulsed, High or Low Pitch
Max. AC/DC Live Voltage	250V
Continuity Test	upto 5,000 ohms with audible beeper
AC Voltage Test	30VAC to 250VAC
DC Voltage Test	Positive applied to red test lead 40VDC to 250VDC
Dimensions	3.5 x 4.5 x 1.5"
Weight	7 oz.

Hotwire Hound
Operating Frequency (RF)	400kHz to 500kHz
Signal Indicators	Speaker outputs Tracer signal and LED indicates signal strength
Earphone Jack	Accepts 1/8" mono or stereo earphone plug (mutes speaker)
Headlights	2 High Brightness White LEDs
Speaker	1.5" Mylar cone with Alnico magnet
Dimentions	1-7/8" dia at speaker; 1-3/8" dia at body; 7.5" long
Weight	9 oz.
