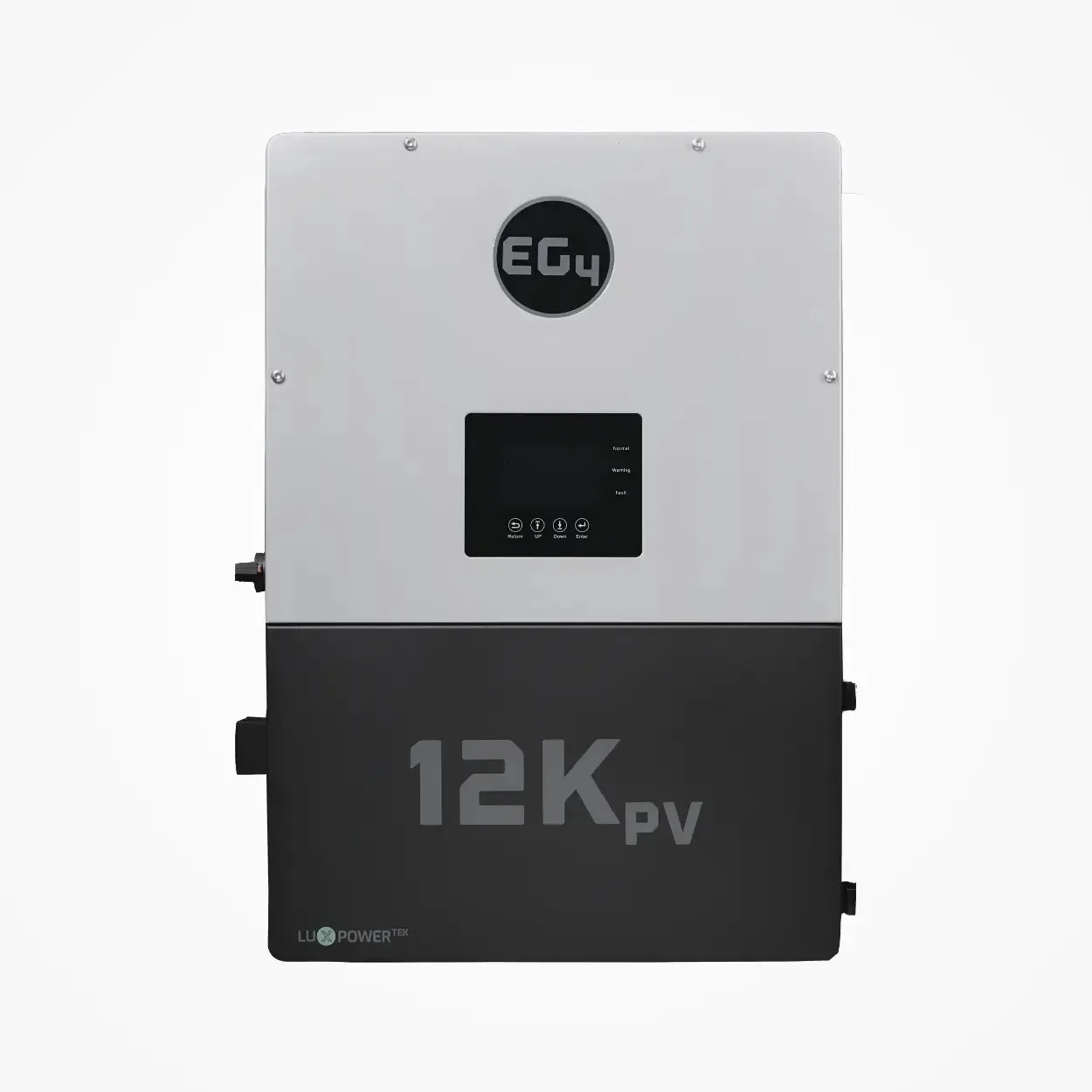

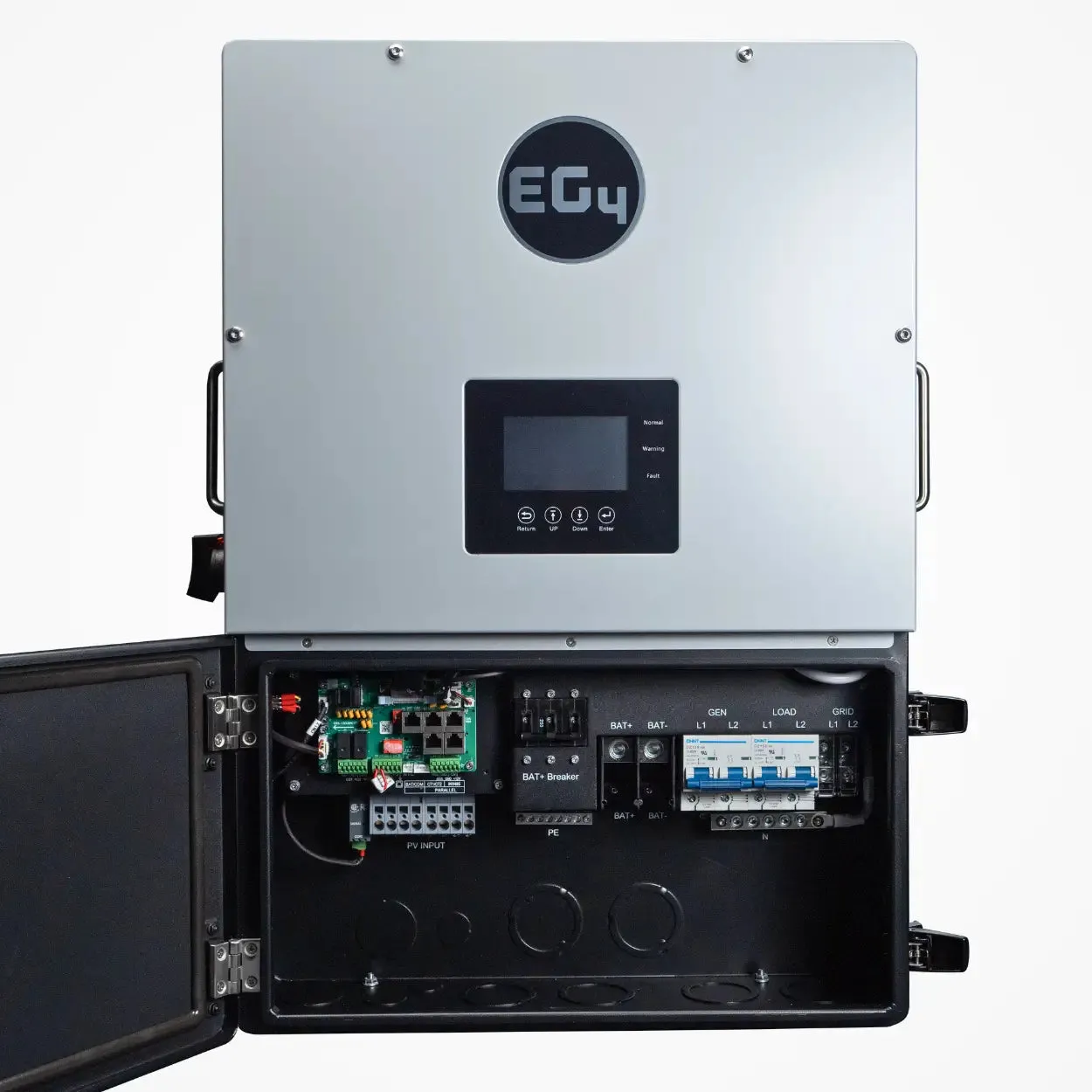

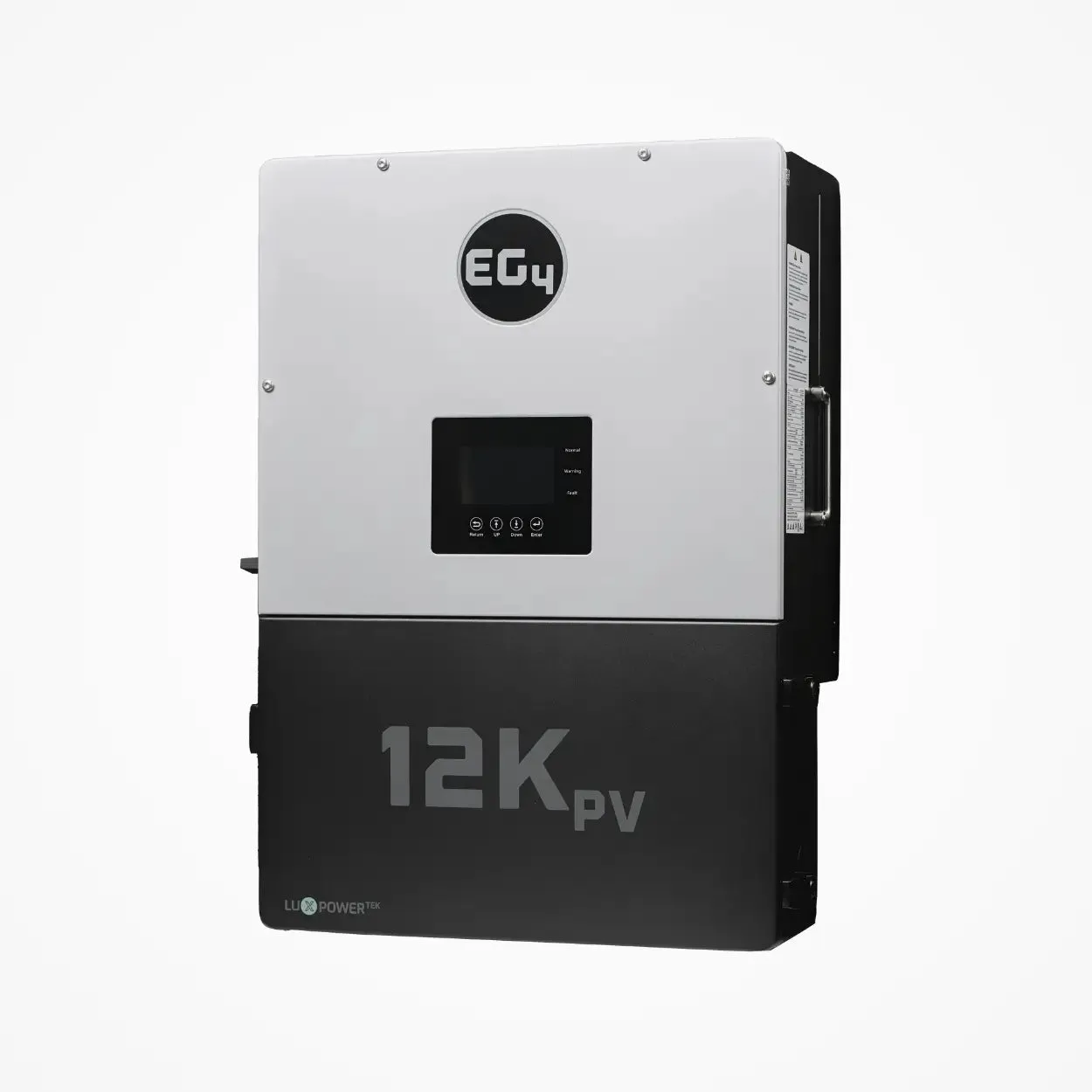

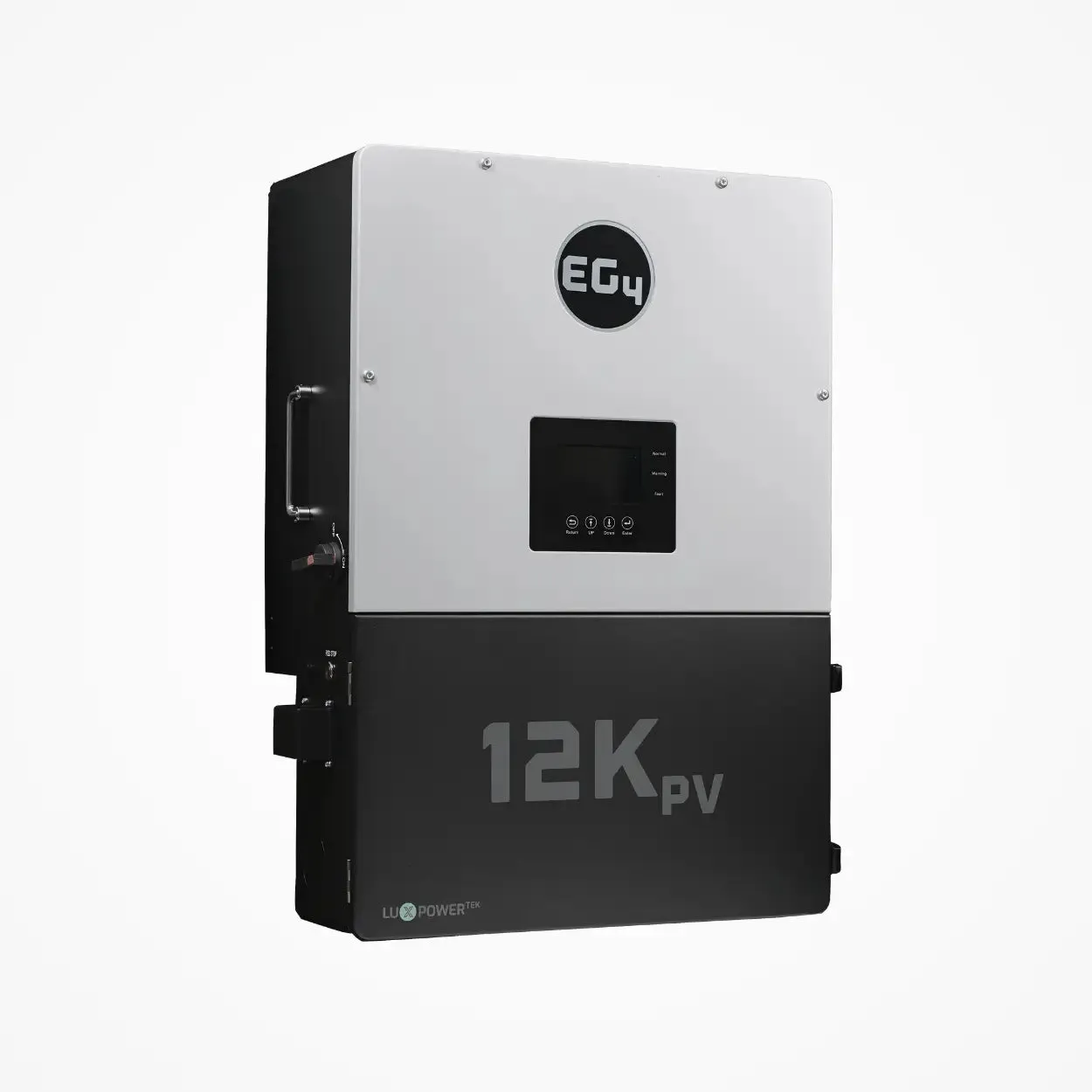

EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | RSD | All-In-One Hybrid Solar Inverter
Easily integrate solar power into your current energy system or start a new one with the EG4 12kPV, our newest 48V split-phase hybrid inverter/charger. It utilizes up to 12kW of solar input, supplying up to 8kW for powering loads while using the remainder to charge your batteries. Designed for residential and light commercial applications, you can connect up to 10 units for a total power output of 80kW.
The EG4 12kPV shares the same design and software as the flagship EG4 18kPV hybrid inverter. The 12kPV is more compact and affordable, and its modular design allows for easy expansion. Users can monitor and update the system remotely using the EG4 monitoring website/app for added control and flexibility.
Features & Benefits:
- “Share Battery” Setting: Simplifies installation, saving time and money when paralleling multiple inverters
- Design: Grid interactive or off-grid configurations
- Supports High Surge Loads: Capable of starting a 5-ton air conditioner without soft-start
- Monitoring and Updates: Use the EG4 monitoring app/website to monitor system and battery performance and update system firmware
- Load Imbalance Handling: Can manage up to 4,000W imbalance for 30 minutes
- Modular Design: Allows for easy expansion and scalability as power needs grow
- Generator Compatibility: Integrated generator input for added system reliability
- RSD/ESS Shutdown: Ensures safety with rapid shutdown capabilities
Key Specifications:
| Brand | EG4 Electronics |
| Model | 12kPV All-In-One Hybrid Inverter |
| AC Output | 8kW continuous |
| PV Input | 12kW PV, recommended maximum 15kW array |
| Number of MPPTs | 2 (25A each) |
| Parallel | up to 10 units for 80kW |
| Outdoor Rated | IP65 |
| Dimensions | 29.5×20.5×11.2 in. (750×520×285mm) |
| Weight | 110 lbs. (50kg) |
| Warranty | 10 year |
| Resources |
Certifications: Documentation: Technical Support Bulletins: Wiring Diagrams: |
| Safety |
