Ecor Pro EPD150 PRO DryFan 150 Pint Stainless Steel Desiccant Dehumidifier - 120V

Introducing the ECOR PRO EPD150-PRO - unique, patented, compressor-less, bucket-less stainless steel desiccant dehumidifiers for residential and commercial drying applications. Designed to work anywhere safely all day and every day. With our newly innovated and patented DryFan Zeolite Technology, moisture can be vented outside with the unit placed in any direction, as well as eliminating water containers, pumps and hoses that were included in traditional obsolete refrigerant dehumidifiers. The EPD150-PRO desiccant dehumidifiers can work upside down or on their sides to enable easy mounting to ceilings and walls. Traditional dehumidifiers are prone to stop working in cold environments, while ECOR PRO’s EPD150-PRO desiccant dehumidifiers can pull moisture even at -4°F room temperature. Compact and lightweight almost a third of the size of comparable commercial refrigerant dehumidifiers, making the EPD150-PRO easy to carry and transported from job site to job site. Typical applications include water damage restoration, hydroponics, moisture and rust protection, warehouse storage, food and timber drying, car garages, hotels, offices, workshops, large homes and food storage. The 3-hole system of EPD150-PRO uses only one internal fan to create two air flows internally. 15% of the process air (or damp air in) that you need to dry is turned back on itself after passing through the desiccant wheel. This air is used to dry the wheel again to be vented out as saturated exhausted wet air. This is the air that is vented away like a tumble dryer hose (only 3.15-inch in diameter). Three hole comes from having Process Air-In, Process Air-Out & Exhaust ducts.

Features:

• 120Vac supply 60 Hz that can be run off a 12V DC-110V AC converters, auto power reset in case of power supply interruption.

• Commercial-grade, stainless steel construction inside and out for strength and longevity, moisture removal capacity equivalent to 150 pints refrigerant unit, using 3-hole system technology, which means one air inlet and two air outlets that can dry air pressure neutrally such as large freezer or walk-in cooler spaces.

• Operating range from -4°F up 104°F maximum room temperature for continuous drying applications, with 268 CFM air volume capacity (224 CFM - exhaust / 44 CFM - regen air flow).

• Highly efficient, very quiet fan operation at 56dB and yet low energy consumption in use for large moisture extraction capacity.

• Desiccant Rotor is the heart of the EPD150-PRO dehumidifier. It is an array of especially absorbent membranes arranged as a series of corrugations to give a vast surface area making it an extremely efficient moisture collector. It is encased in a galvanized steel ring and turns on high quality sealed ball bearing units.

• Uses a ceramic PTC (Positive Temperature Coefficient) type regen heater, which means the heating element can never overheat to hazardous temperatures, even if the regen airflow is completely blocked.

• Uses patented RadiCal backward curved fan unit, highly efficient yet quiet system, designed to give a good balance of both Process and Regen airflow.

• Compact and smallest desiccant dehumidifier in its class, can be easily transported without the fear of water leaks after residual water in the tank; removable carrying handle for easy transport and mobility, it also protect the dehumidifier duct flanges if in transit; anti-scratch four plastic feet; IPX1 rating which means the unit can still operate even in damper conditions.

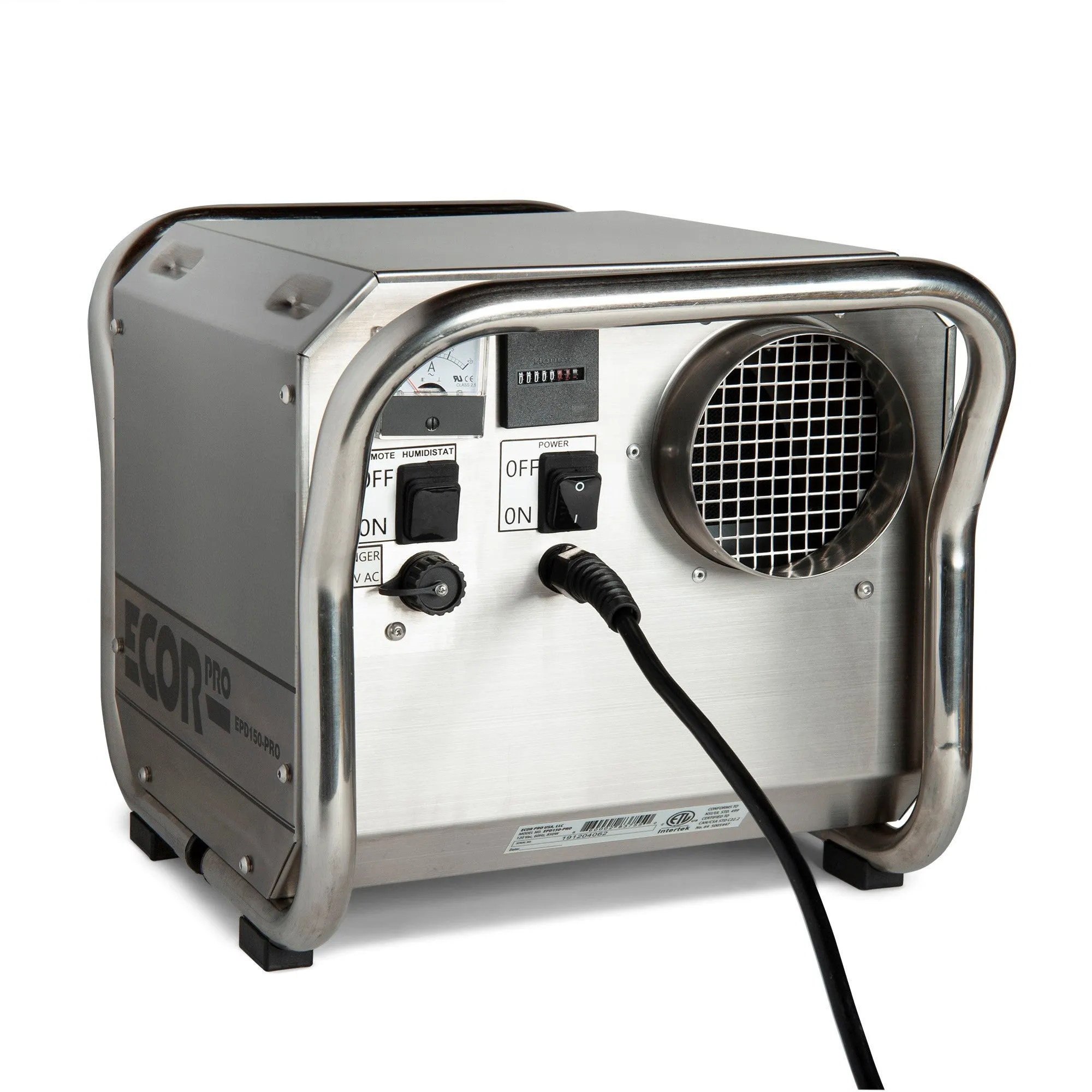

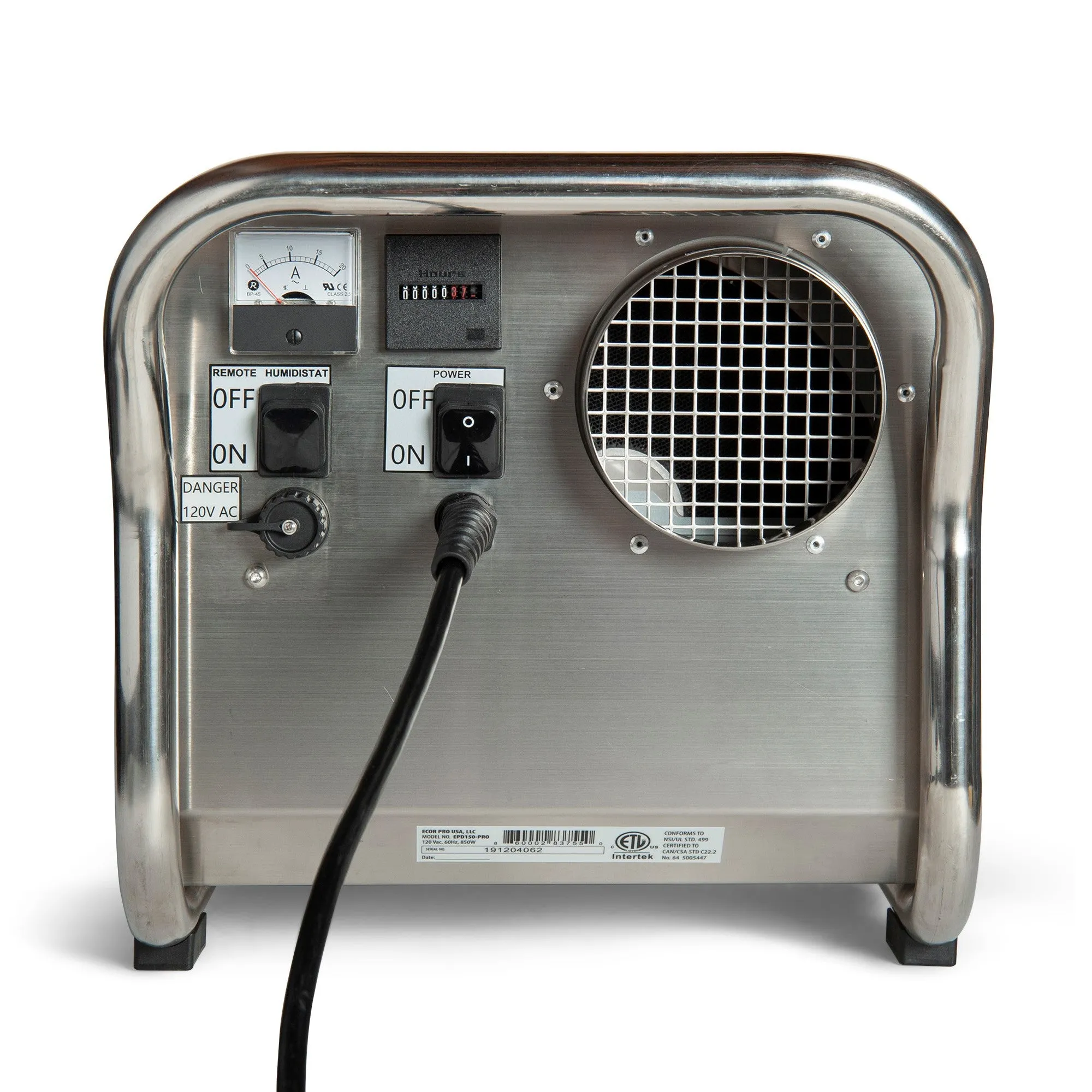

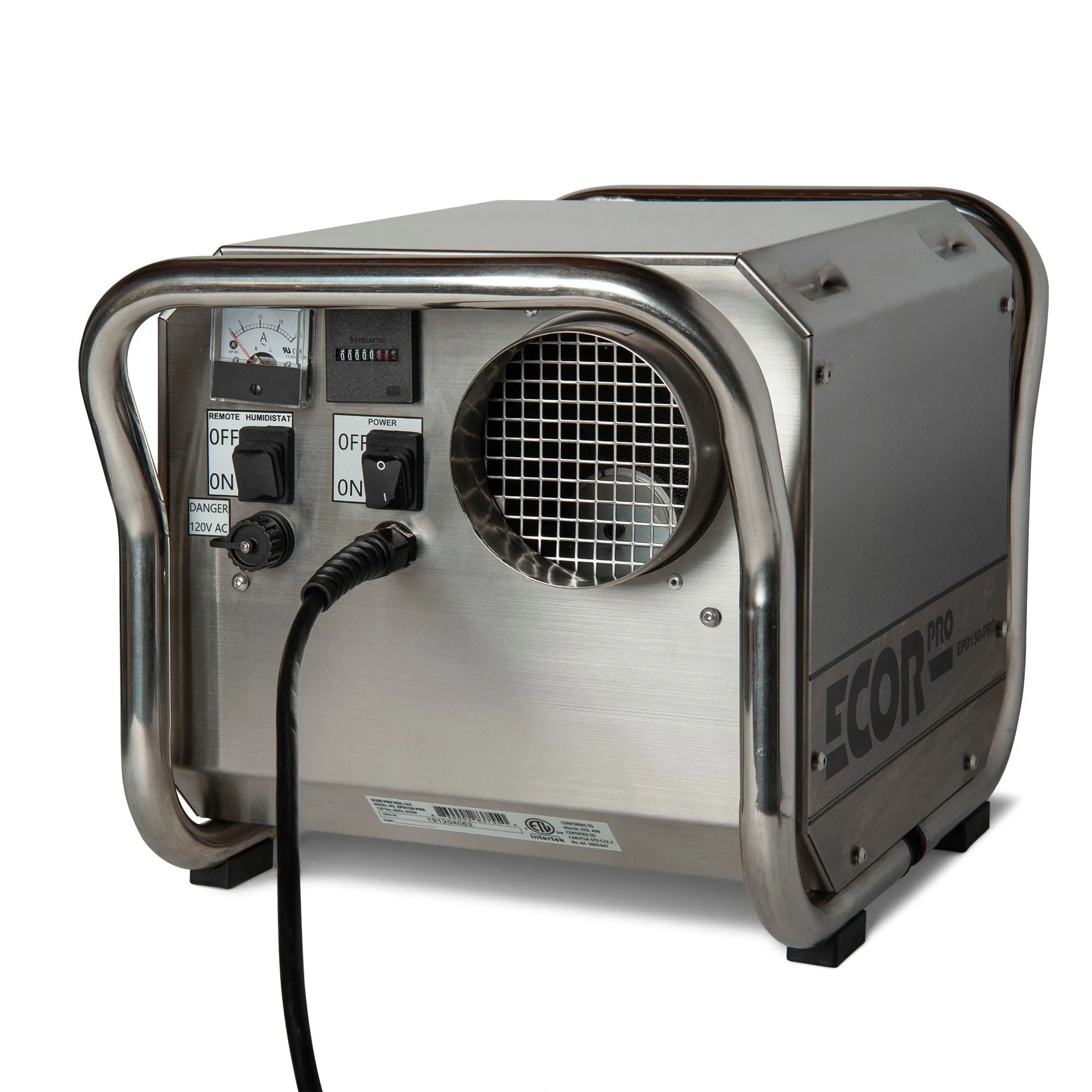

• Equally robust controls can be linked to an optional remote humidistat or switched over to manual control with on/off switch. Built-in analogue amp meter that can review performance and measure energy consumption; an hour meter that measures the number of hours the machine is in operation - an ideal feature for the rental industry.

• Wet air-out ducted with 3.0-inch diameter ducting - OPTIONAL; Damp air-in / dry air-out can be ducted with 5-inch diameter ducting - optional.

Warranty:

• 1-Year Limited Warranty

Specifications:

Product Information and Guides:
