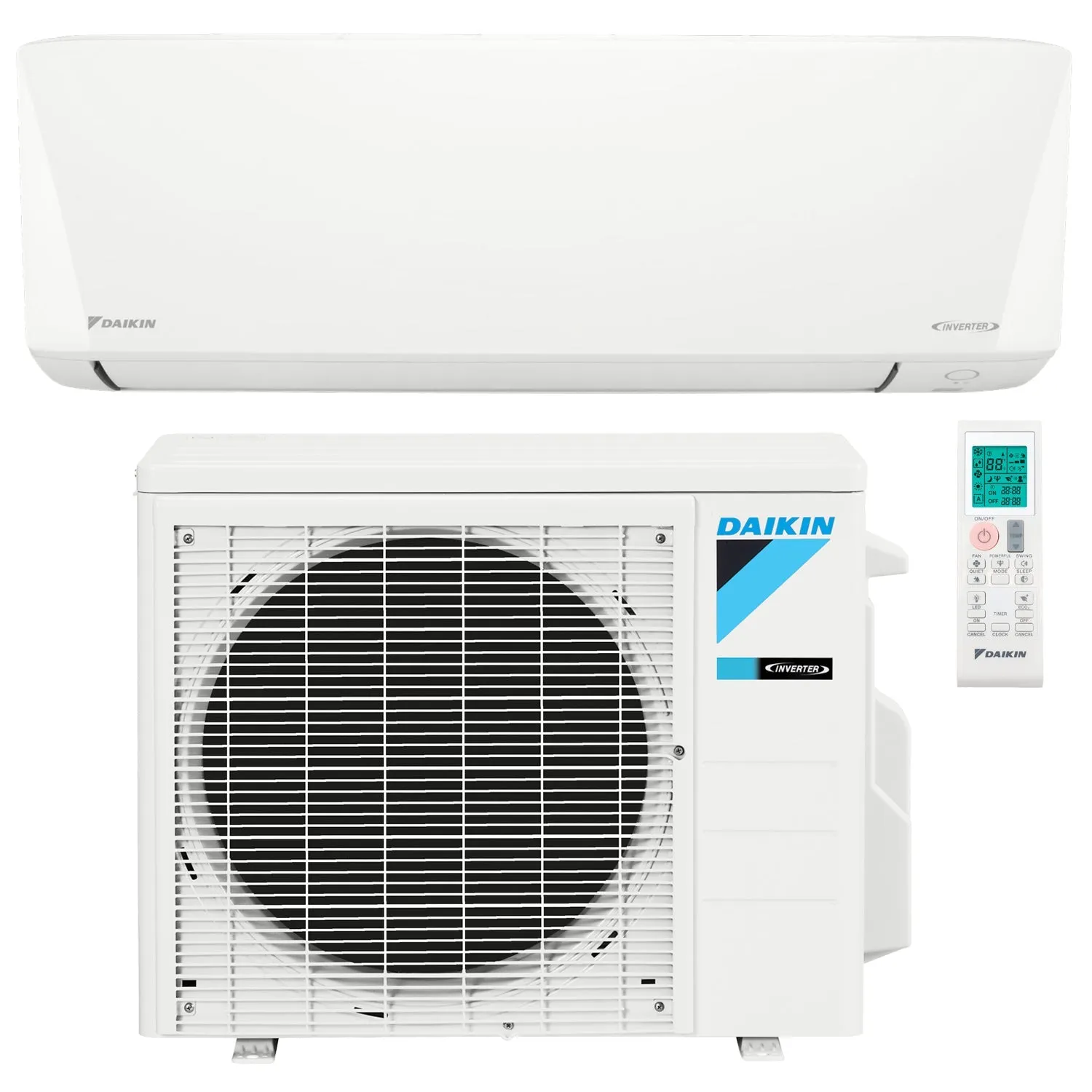

Daikin ENTRA 9,000 BTU 18 SEER2 Single Zone Ductless Mini Split Air Conditioner Heat Pump System 208/230V - FTXB09BXVJU / RXB09BXVJU
Daikin ENTRA single zone inverter wall-mounted systems provide energy efficiency and comfort control with an affordable, cost-saving solution. These heat pump systems feature streamlined, wall mounted indoor units paired with quietly compact outdoor units.
Features:
- 10-Year Parts and Compressor Warranty
- Efficiency and Comfort: 18 SEER2 / 9 HSPF2 / 11 EER2 / 3.6 COP for efficient cooling and heating operation and reduced operating costs compared to conventional lower-efficiency systems. Cooling Range: 50° – 115°F, Heating Range: 5° – 65°F.
- Powerful Operation: Pushing the POWERFUL button on the remote control gives you a boost in cooling or heating power for a 20-minute period, even if the unit is already operating at high capacity.
- ECO : An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an optimum energy consumption level.
- Blue Fin Protection: The hydrophilic coated fin ensures the condensate water moves easily to the drain pan — thus enhancing the cleanliness and lifespan of the cooling coil.
- Titanium Apatite Photocatalytic Air Purifying Filter: This filter combines the air-purifying filter and titanium apatite photocatalytic deodorizing filter in a single highly effective unit.
- Multi-monitor lamp: The lamp color changes according to the mode of operation.
- Comfort without compromise: The Daikin ENTRA system is an Inverter unit that runs continuously but adjusts the compressor’s speed to meet the demand. An inverter is energy saving technology that eliminates wasted operation in air conditioners by efficiently controlling motor speed. Because it maintains the temperature consistently, your space will no longer feel too hot or too cold. Compared to non-inverter type HVAC systems, systems equipped with inverters have less power loss and can save up to 30% or more in energy.
- Anti-Corrosion Treatment on Heat Exchanger
Ideal solution for:
- Renovations, remodeling and new construction
- A perfect alternative to noisy and inefficient window or through-the-wall AC units
- Sun rooms, basements, attics, garages, hot or cold spaces, and more
- Rooms where floor space comes at a premium or is not available for other application
- Ceiling void or attic does not allow for a viable duct run option
What's Included:
- 1x Daikin Entra 9,000 BTU 18 SEER2 Heat Pump Condenser
- 1x Daikin Entra 9,000 BTU Wall Mount Air Handler

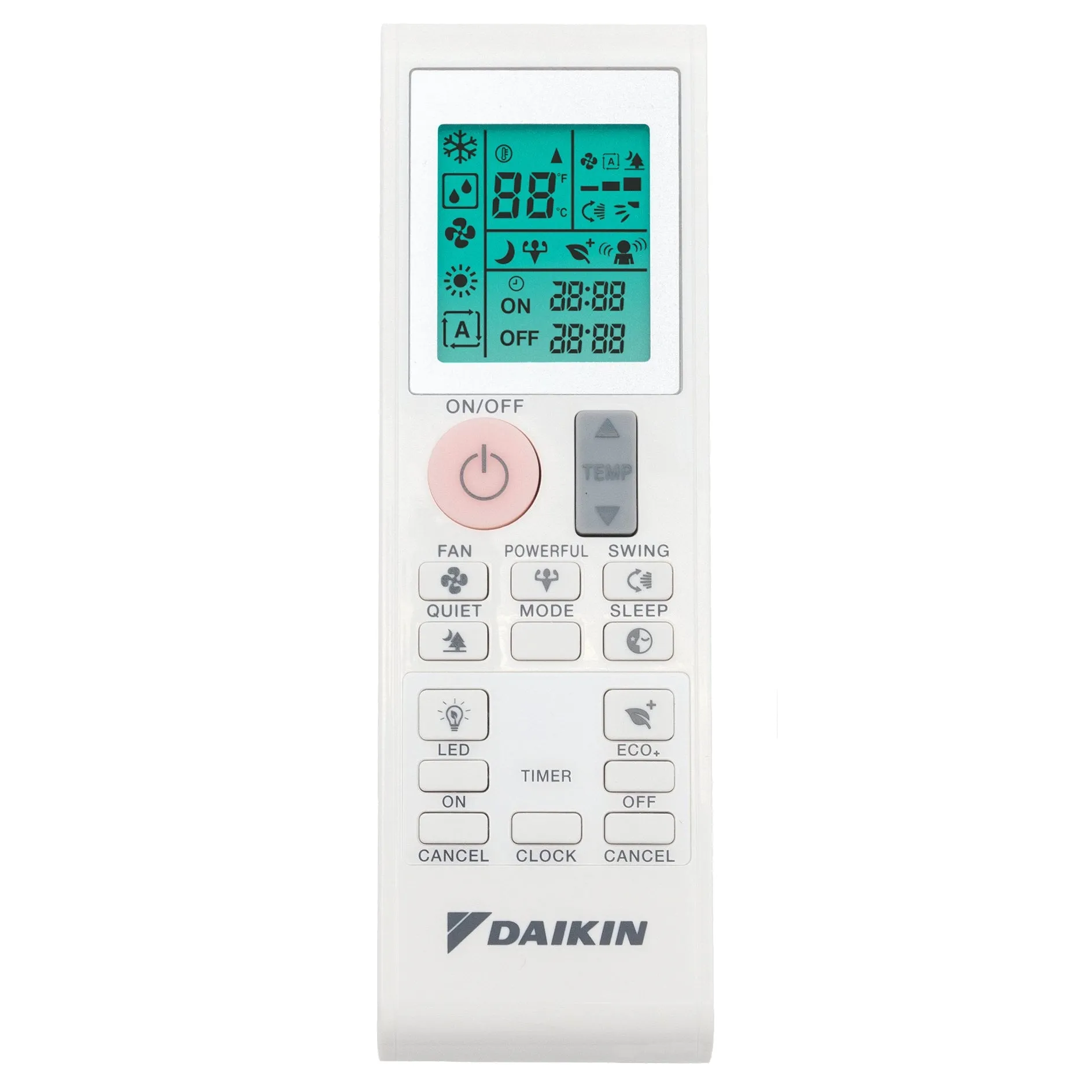

- 1x Daikin Wireless Remote Control with 2x Batteries and 1x Remote Control Holder
- 1x Free Condenser Wall Mounting Brackets ($119.99 Value)
- 2x Fixing screws for remote controller holder M3 × 16L
- 1x Wall Mount Air Handler Mounting Plate
- 2x Titanium apatite deodorizing filters
- 1x Drain Socket
- 1x Drain Plus
- 1x Installation Manual and Operational Manual
- 1/4" x 3/8" Copper Line Set (Optional)
- Control wire (Optional, included with line set)
Warranty:
- 10-Year Parts and Compressor Warranty.
System Specifications:
Brand | Daikin |
Model |
Indoor Unit: FTXB09BXVJU Outdoor Unit: RXB09BXVJU |
Coverage Area | Up to 450 square feet |
AHRI Number | 211291635 |
Power Supply |
Electrical: 208/230V 1 Phase 60 Hz Minimum Circuit Amps: 12.35 A Max Overcurrent Protection: 15 A |
Rated Capacity Cooling (Min. ~ Max.) |
kW: 2.57 (1.30 - 3.00) Btu/h: 8800 (4400 - 10200) |
Rated Capacity Heating (Min. ~ Max.) |
kW: 2.75 (1.30 - 3.80) Btu/h: 9400 (4400 - 13000) |
Moisture Removal | 0.09 gal/h |
Rated Running Current |
Cooling: 3.82 A Heating: 3.70 A |
Rated Power Consumption |
Cooling: 800 W Heating: 774 W |
SEER2 | 18 |
EER2 | 11 |
HSPF2 | 9 |
COP | 3.56 |
Piping Connections |
Liquid: 1/4” Gas: 3/8” |
Refrigerant |
Type: R410A Charge: 1.54 LBS |
Max. Interunit Piping Length | 65-5/8 ft |
Max. Interunit Height Difference | 32-13/16 ft |
Chargeless | 32-13/16 ft |
Amount of Additional Charge of Refrigerant oz/ft (g/m) | 0.21 (20) |
Warranty | 10 Years Parts and Compressor Warranty |

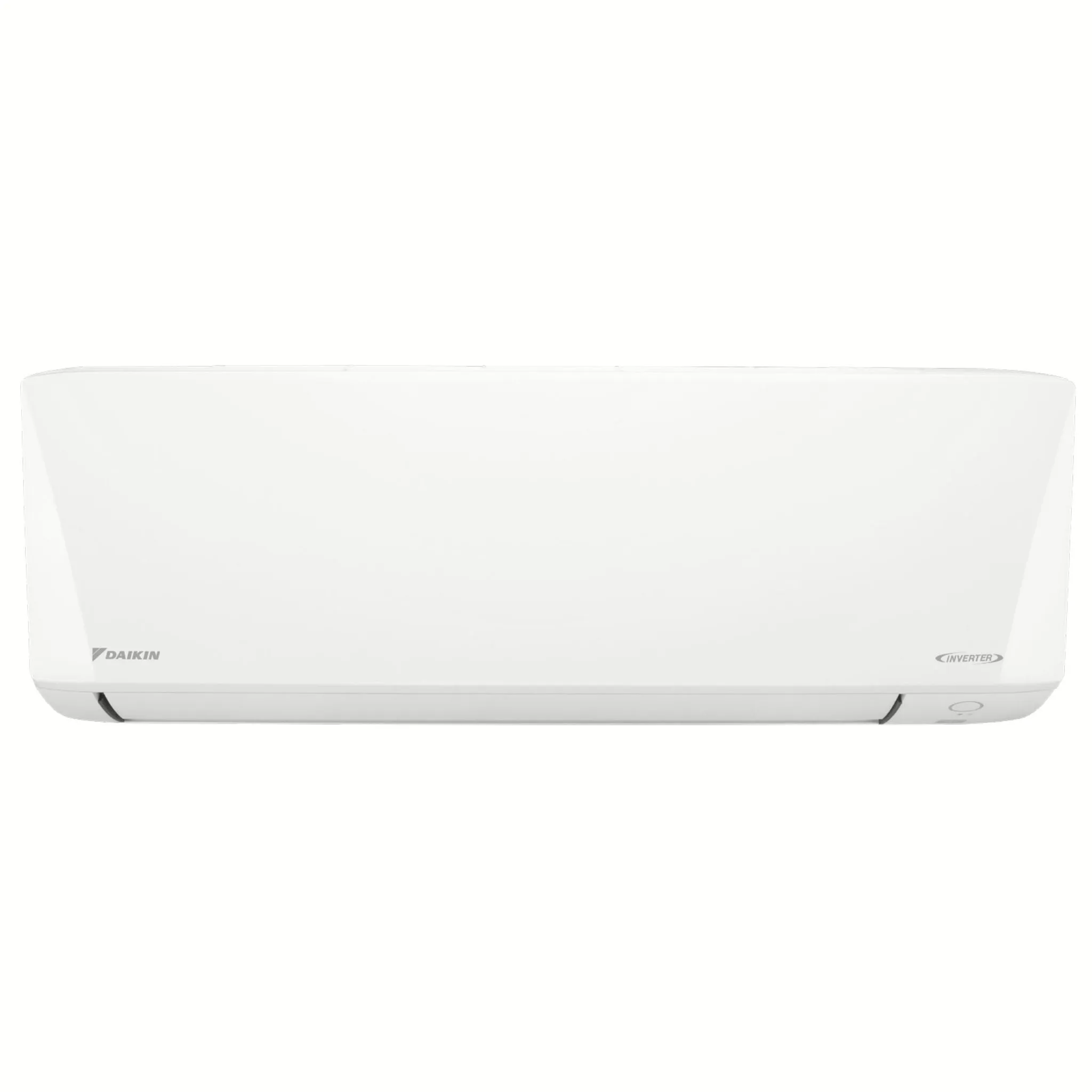

Indoor Unit Specifications:
Brand | Daikin |
Model | FTXB09BXVJU |
Front Panel Colour | White |
Airflow Rate |
Turbo: 466 CFM High: 431 CFM Medium: 322 CFM Low: 249 CFM Quiet: 219 CFM |
Sound Pressure Level (H/M/L/Q) | 43/36/29/19 dBA |
Fan |
Type: CROSS FLOW Drive: DIRECT Speed: 3 STEPS, QUIET, AUTO, TURBO |
Fan Motor |
Type: DIRECT CURRENT Motor Output: 22 W Running Current (Rated): 0.10 A Power Consumption (Rated): 29 W |
Air Direction Control | UP, DOWN, LEFT, RIGHT |
Air Filter | CATECHIN |
Dimensions (H x W x D) | 11-1/3 x 30-5/16 x 9-3/16 inches |
Packaged Dimensions (H x W x D) | 13-7/8 x 32-3/4 x 12-3/8 inches |
Weight | 20.3 lbs |
Gross Weight | 24.7 lbs |
Condensate Drain Size | 5/8 inch |

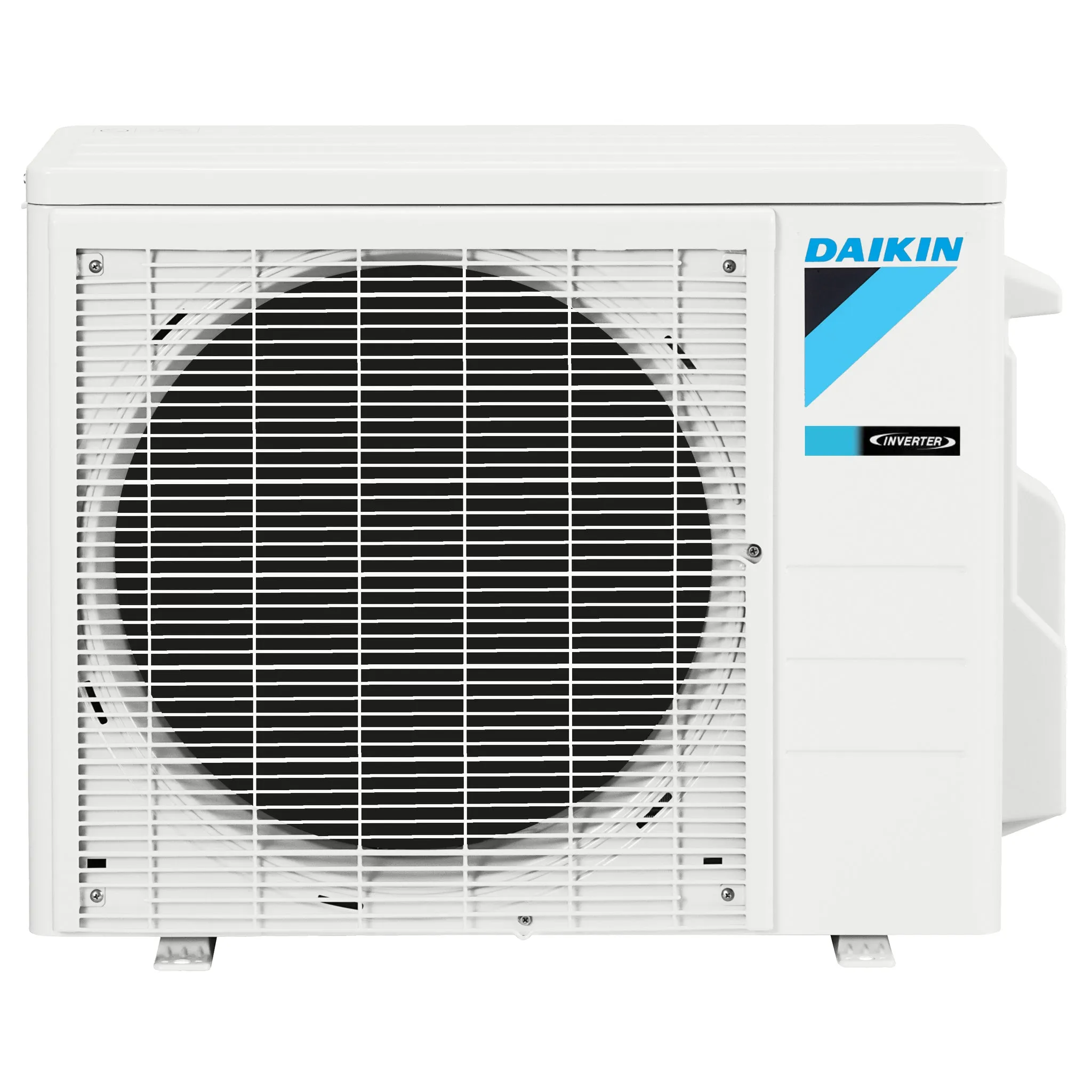

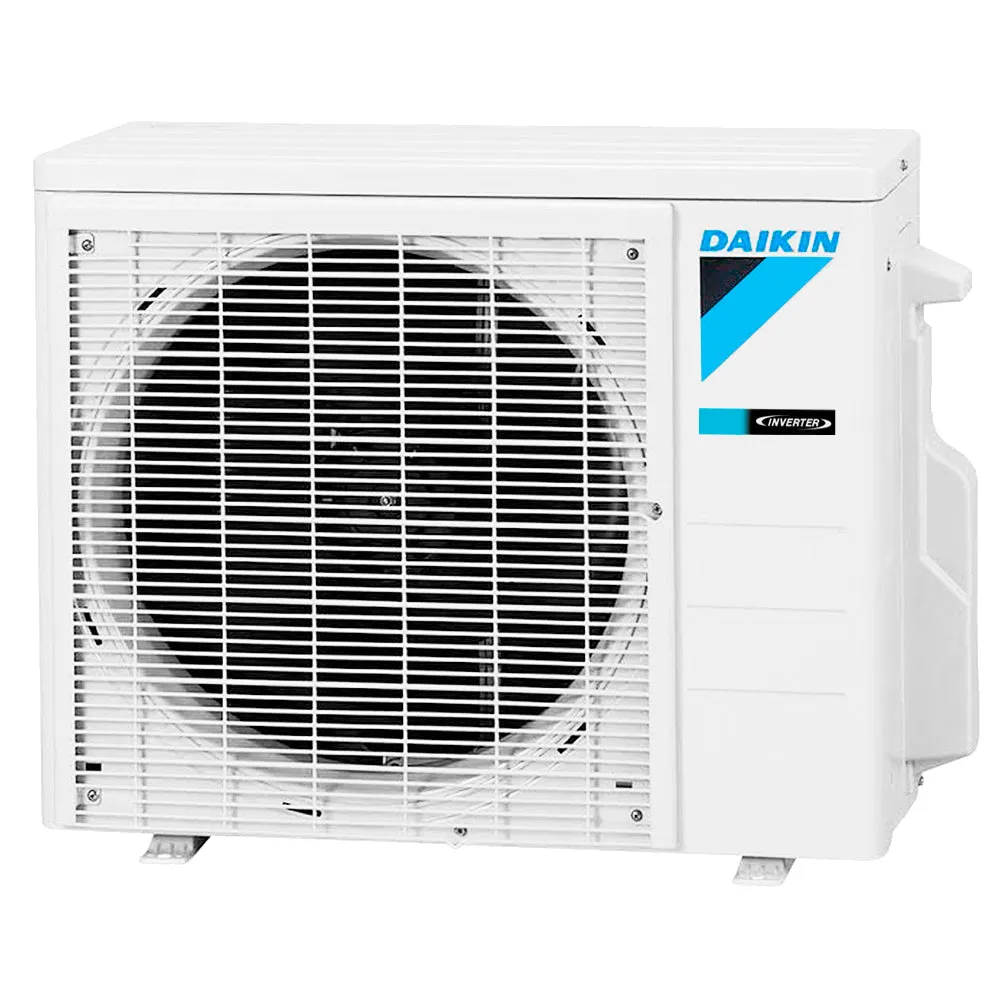

Outdoor Unit Specifications:
Brand | Daikin |
Model | RXB09BXVJU |
Casing Colour | Ivory White |
Airflow Rate High | 1083 - 1103 CFM |
Sound Pressure Level | 46 - 48 dBA |
Fan |
Type: PROPELLER Drive: DIRECT |
Fan Motor |
Type: DIRECT CURRENT Index of protection (IP): 24 Insulation Grade: E Running Current (Rated): 0.60 A Power Consumption (Rated): 32 W Motor Output: 26 W Poles: 8 |
Compressor |
Type: HERMETIC SWING Model: 1YC23AUXDA Oil Type: DAPHNE FVC50K Oil Amount: 12.4 oz |
Heat Exchanger Type | FIN TUBE |
Dimensions (H x W x D) | 21-11/16 x 26-1/2 x 11-3/16 inches |
Packaged Dimensions (H x W x D) | 24-1/64 x 31-3/8 x 15-1/8 inches |
Weight | 55 lbs |
Gross Weight | 62 lbs |
