Daikin CIRRA Series 21,000 BTU 17 SEER2 2-Zone Ductless Mini Split Air Conditioner Heat Pump System 208/230V - 9K 12K
Daikin’s Multi-Zone Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design. With the ability to connect two wall-mounted indoor units to a single outdoor unit, this compact and simple solution can provide additional comfort to spaces where other solutions may not be viable.
In addition, with a small outdoor unit footprint, the Daikin CIRRA Multi-Zone unit takes up less space on a patio or balcony (compared to other Daikin Multi-Zone outdoor units). Suitable for new build and renovation projects, Daikin Multi-Zone Systems are an innovative, reliable solution for your home or space.
Features:
- Cooling Range: 50° - 115°F
- Heating Range: 5° - 65°F
- 10-Year Daikin Manufacturer Warranty
- Space-saving design and precision temperature control for individual rooms. One outdoor unit connects two indoor units individually controlled.
- Energy Efficient: 17 SEER2 / 9 HSPF2 / 10 EER2 for ultra-efficient cooling and heating operation. This system is designed to be highly efficient all year round, and its low energy consumption is reflected in low energy bills for you.
- Smart inverter technology: Integrated with variable-speed, inverter, compressor, Daikin systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by up to 30% or more (compared to traditional fixed-speed ducted systems). This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
- Anti-Corrosion Treatment on Heat Exchanger
- Quick Warming Function: Preheats the compressor to shorten the time required to discharge warm air.
- Automatic Defrosting: Sensor performs automatic defrosting of the outdoor heat exchanger if necessary, ensuring optimum heating performance.
- ECO : An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an optimum energy consumption level.
- Blue Fin Protection: The hydrophilic coated fin ensures the condensate water moves easily to the drain pan — thus enhancing the cleanliness and lifespan of the cooling coil.
- Simplified Maintenance: The indoor unit has been re-designed for easier removal of the drain pan, blower wheel, and indoor fan motor (compared to other wall mounted units).

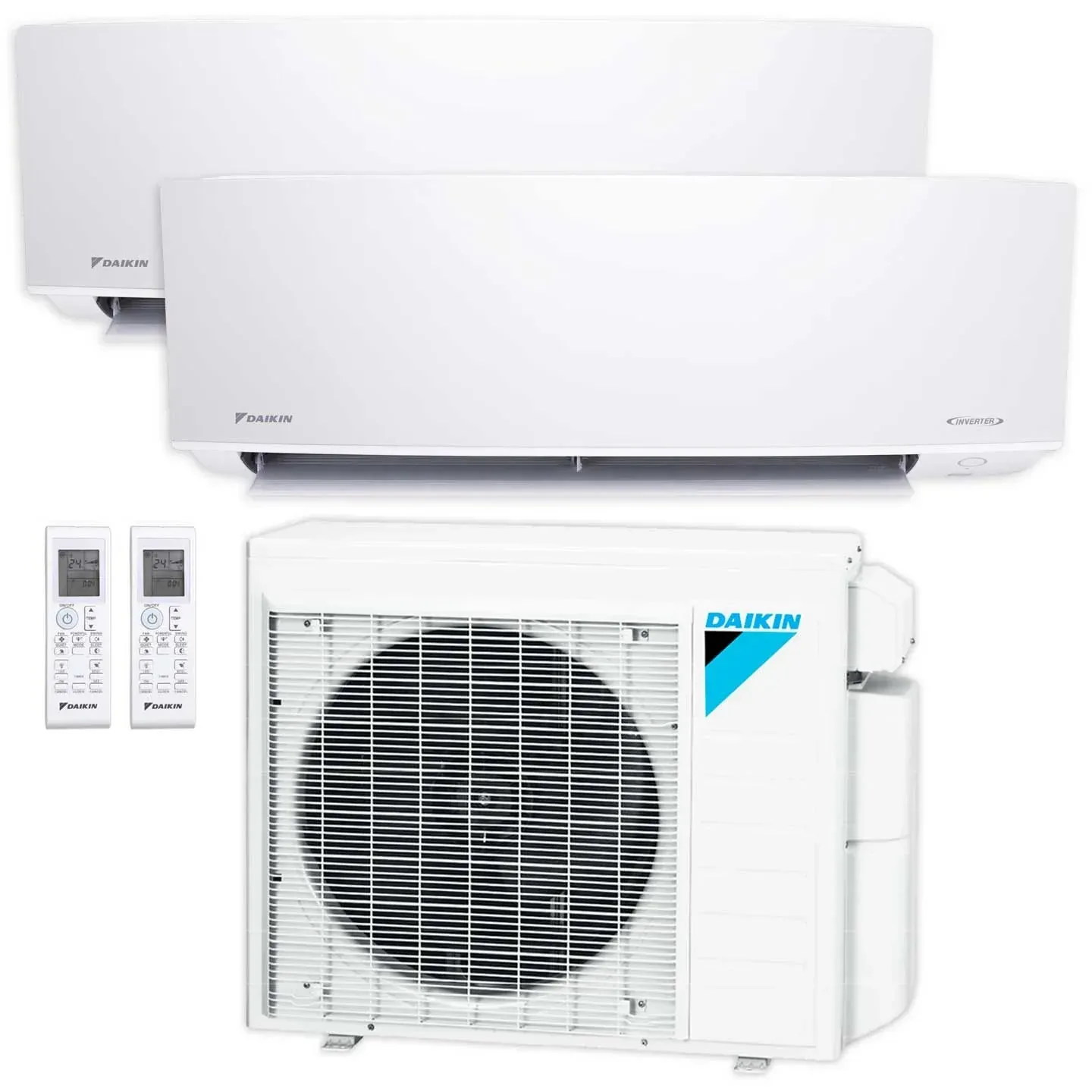

What's Included:
- 1x Daikin Cirra Series 18,000 BTU 17 SEER2 Multi-Zone Heat Pump Condenser
- 1x Daikin Cirra Series 9,000 BTU Wall Mount Air Handler
- 1x Daikin Cirra Series 12,000 BTU Wall Mount Air Handler

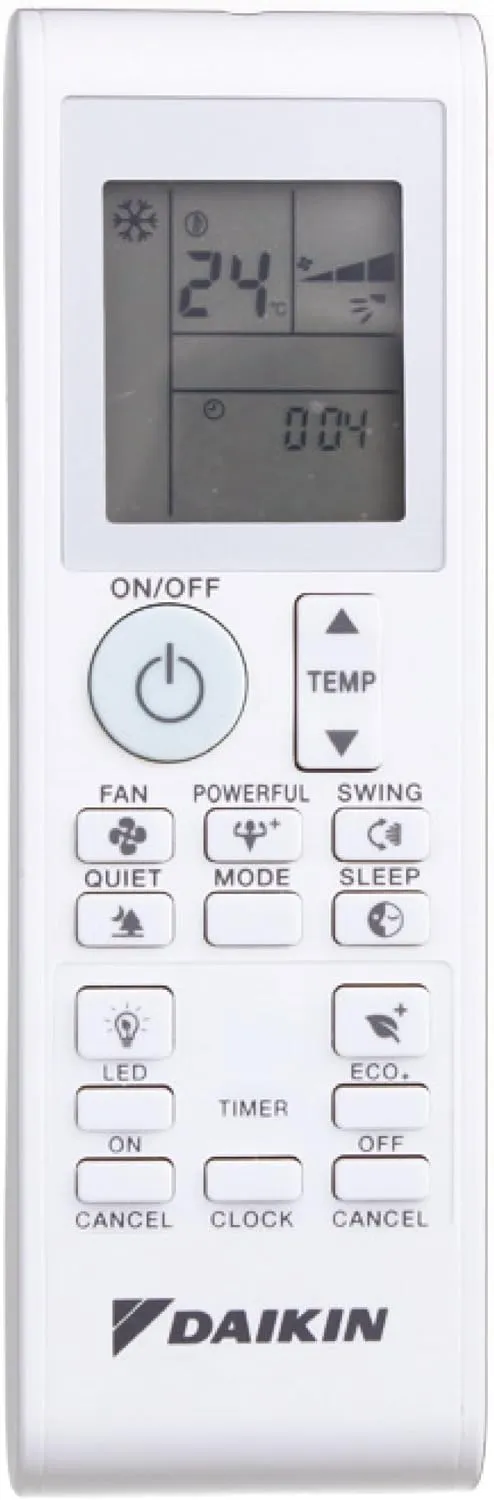

- 2x Daikin Wireless Remote Controls with remote control holders
- 1/4" x 3/8" Copper Line Sets (Optional)
- Control wire (Optional, included with line set)
Warranty:
10-Year Parts and Compressor Warranty.
System Specifications:
Brand | Daikin |
Model |
Outdoor: 2MX18AXVJU Indoor: CTX09AXVJU / CTX12AXVJU |
EER2 | 10 |
SEER2 | 17 |
COP | 3.5 |
HSPF2 | 9 |

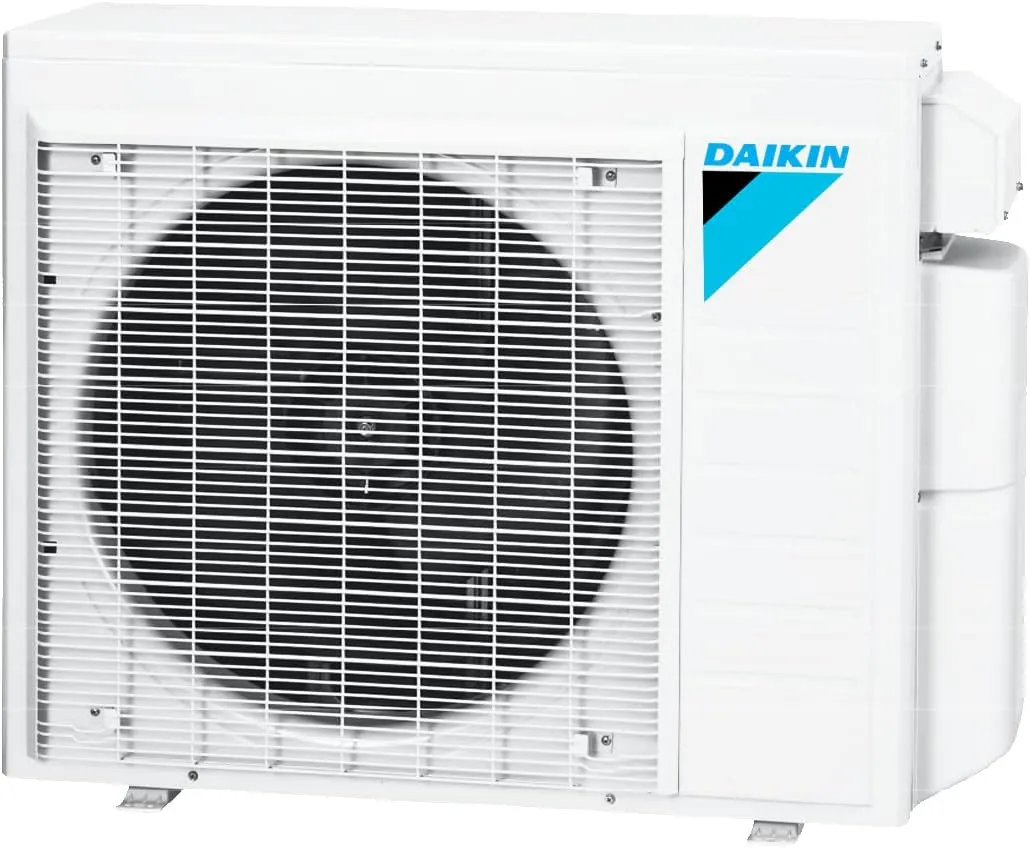

Condenser Specifications:
Brand | Daikin |
Model | 2MX18AXVJU |
Nominal Capacity | 18,000 BTU/h |
Cooling Capacity (Rated) | 17,000 BTU/h |
Cooling Capacity (Rated-Max) | 17,000 - 17,500 BTU/h |
Heating Capacity (Rated) | 17,000 BTU/h |
Heating Capacity (Rated-Max) | 17,000 - 18,000 BTU/h |
SEER2/ EER2/ HSPF2 | 17/10/9 |
Power Supply (V/Hz) | 208-230V/1 |
Minimum Circuit Amps | 10.9 |
Max Overcurrent Protection | 15 |
Power Consumption - Cooling | 1.7 kW |
Power Consumption - Heating | 1.4 kW |
Operating Range - Cooling | 50 - 115°F |
Operating Range - Heating | 5 - 65°F |
Casing Colour | Ivory White |
Airflow Rate (High) |
Cooling: 1170 CFM Heating: 1300 CFM |
Sound Pressure Level |
Cooling: 51 dBA Heating: 56 dBA |
Fan |
Type: Propeller Drive: Direct |
Fan Motor |
Type: Direct Current Index of Protection (IP): IP 24 Insulation Grade: E Running Current (Rated):
Power Consumption (Rated)
Motor Output:
Poles: 8 |
Compressor |
Type: Hermetic Swing Model: 2YC36HXD Oil Type: DAPHNE FVC50K Oil Amount: 22 oz |
Heat Exchanger Type | Fin Tube |
Starting Current | 9.50 A |
Dimensions (H x W x D) | 21-11/16 x 26-1/2 x 11-3/16 inches |
Packaged Dimensions (H x W x D) | 24-1/64 x 31-3/8 x 15-1/8 inches |
Weight | 77 lbs |
Gross Weight | 84 lbs |
Piping Connections |
Liquid: 1/4 Gas: 3/8 |
Refrigerant |
Type: R410A Charge: 2.65 lbs |
Max. Interunit Piping Length ft (m) | 98-1/2 (30) - Total; 82 (25) - Each |
Max. Interunit Height Difference ft (m) | 49-1/4 (15) |
Chargeless | 98-1/2 ft |

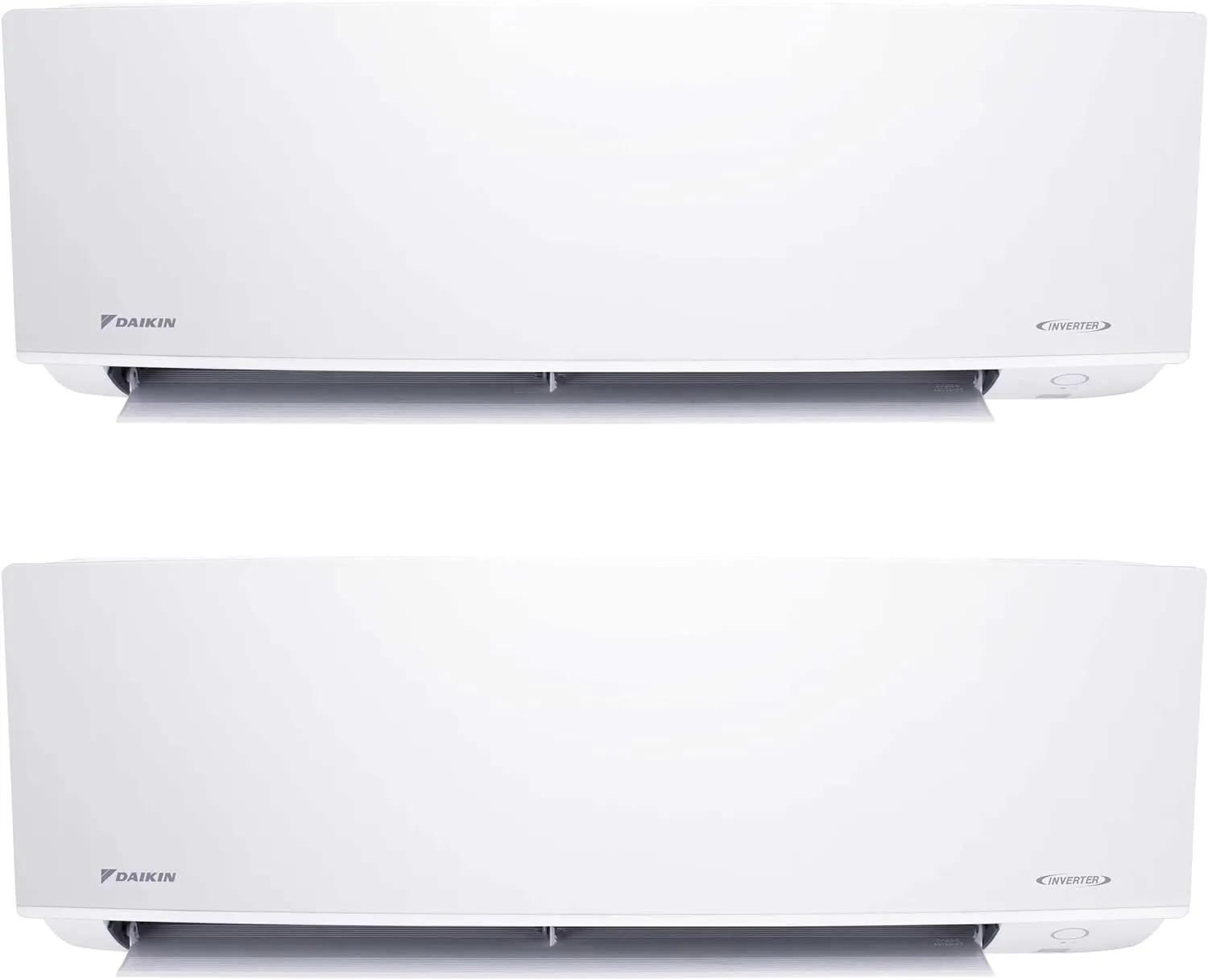

9K Air Handler Specifications:
Brand | Daikin |
Model | CTX09AXVJU |
Cooling BTU | 9,000 |
Heating BTU | 9,000 |
Rated Capacity | 9 kBtu/h Class |
Front Panel Colour | White |
Cooling Airflow Rate |
Turbo: 402 CFM High: 350 CFM Medium: 300 CFM Low: 249 CFM Quiet: 142 CFM |
Heating Air Flow Rate |
Turbo: 402 CFM High: 350 CFM Medium: 300 CFM Low: 249 CFM Quiet: 195 CFM |
Sound Pressure Level (H/M/L/Q) |
Cooling: 42/36/30/19 dBA Heating: 41/35/29/24 dBA |
Fan |
Type: Cross Flow Drive: Direct Speed: 3 Steps, Auto, Quiet, Turbo |
Fan Motor |
Type: Direct Current Motor Output: 53W Running Current (Rated): 0.17A Power Consumption (Rated): 38W |
Air Direction Control | Up, Down, Left, Right |
Air Filter | Catechin |
Dimensions (H x W x D) | 11-1/3 x 30-29/32 x 9-27/32 inches |
Packaged Dimensions (H x W x D) | 13-7/8 x 32-3/4 x 12-3/8 inches |
Weight | 20 lbs |
Gross Weight | 25 lbs |
Condensate Drain Size | 19.05 mm |
12K Air Handler Specifications:
Brand | Daikin |
Model | CTX12AXVJU |
Cooling BTU | 12,000 |
Heating BTU | 12,000 |
Rated Capacity | 12 kBtu/h Class |
Front Panel Colour | White |
Cooling Airflow Rate |
Turbo: 470 CFM High: 430 CFM Medium: 340 CFM Low: 249 CFM Quiet: 142 CFM |
Heating Air Flow Rate |
Turbo: 470 CFM High: 430 CFM Medium: 340 CFM Low: 249 CFM Quiet: 195 CFM |
Sound Pressure Level (H/M/L/Q) |
Cooling: 46/39/30/19 dBA Heating: 45/38/29/24 dBA |
Fan |
Type: Cross Flow Drive: Direct Speed: 3 Steps, Auto, Quiet, Turbo |
Fan Motor |
Type: Direct Current Motor Output: 53W Running Current (Rated): 0.17A Power Consumption (Rated): 38W |
Air Direction Control | Up, Down, Left, Right |
Air Filter | Catechin |
Dimensions (H x W x D) | 11-1/3 x 30-29/32 x 9-27/32 inches |
Packaged Dimensions (H x W x D) | 13-7/8 x 32-3/4 x 12-3/8 inches |
Weight | 20 lbs |
Gross Weight | 25 lbs |
Condensate Drain Size | 19.05 mm |
