Daikin 17 Series 9,000 BTU 17 SEER Single Zone Inverter Ductless Heat Pump Air Conditioning System - FTXB09AXVJU / RXB09AXVJU
17 Series single zone inverter wall-mounted systems provide energy efficiency and comfort control with an affordable, cost-saving solution. These systems feature streamlined, wall mounted indoor units paired with quietly compact outdoor units.
Features:
- 10-Year Manufacture Warranty: This warranty covers defects in parts, materials, and workmanship that appear under normal use and maintenance.
- Daikin Inverter Technology: Inverter technology helps prevent the common, and uncomfortable, temperature swings normally experienced with non-inverter HVAC systems.
- Powerful Operation: Pushing the POWERFUL button on the remote control gives you a boost in cooling or heating power for a 20-minute period, even if the unit is already operating at high capacity.
- ECO : An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an optimum energy consumption level.
- Blue Fin Protection: The hydrophilic coated fin ensures the condensate water moves easily to the drain pan — thus enhancing the cleanliness and lifespan of the cooling coil.
- Titanium Apatite Photocatalytic Air Purifying Filter: This filter combines the air-purifying filter and titanium apatite photocatalytic deodorizing filter in a single highly effective unit.
- Multi-monitor lamp: The lamp color changes according to the mode of operation.
Highlights:
- Energy Efficient – 17 SEER - 9.0 HSPF - up to 11.5EER – Variable Speed Inverter Compressor
- Cooling Range 50° - 115°F
- Heating Range 5° - 65°F
- Indoor Sound Pressure as low as 23 dB(A)
- Auto Fan Speed Control
- Self-Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Anti-Corrosion Treatment on Heat Exchanger
- Hot-start function (Heat Pump)
- Automatic defrosting (Heat Pump)
What's Included:

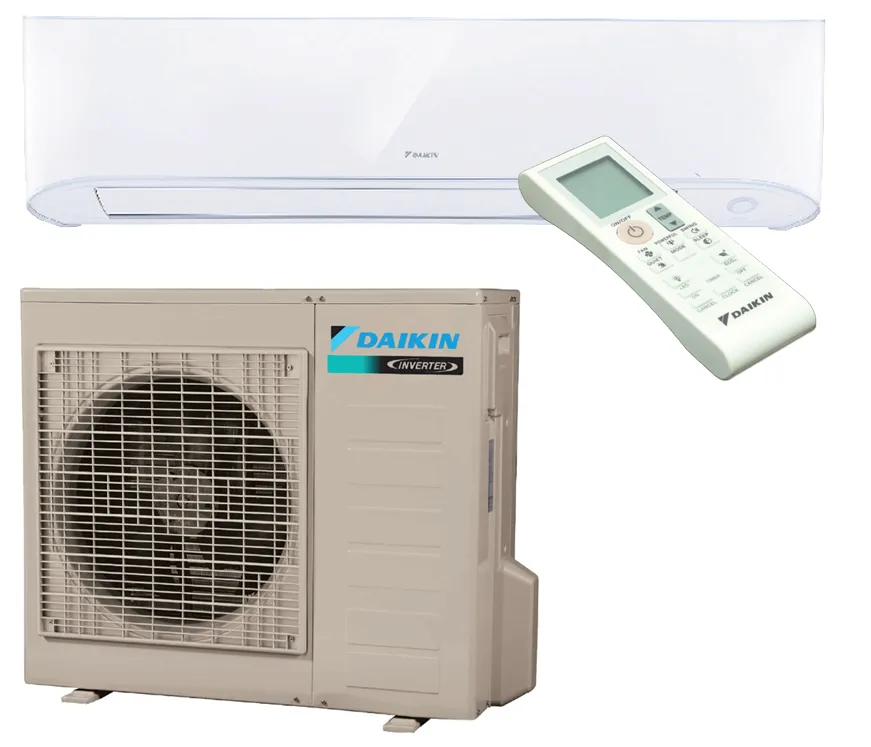

- Daikin 17 Series 9,000 BTU Heat Pump Condenser - RXB09AXVJU
- Daikin 17 Series 9,000 BTU Wall Mount Air Handler - FTXB09AXVJU
- Daikin 17 Series Wireless Remote Control
Specifications:
Brand | Daikin |
Model | FTXB09AXVJU / RXB09AXVJU |
Nominal Cooling Capacity (Min. ~ Max.) |
Btu/h: 8800 (4400 - 10200) W: 2570 (1300 - 3000) |
Nominal Heating Capacity (Min. ~ Max.) |
Btu/h: 9400 (4400 - 13600) W: 2750 (1300 - 4000) |
Nominal Total Input Power (Cooling) | 800 W |
Nominal Total Input Power (Heating) | 774 W |
Nominal Running Current (Cooling) | 3.60 A |
Nominal Running Current (Heating) | 3.51 A |
SEER | 17 |
EER (Btu/h)/W | 11 |
COP (Btu/h)/W | 12.15 |
HSPF | 9 |
Power Supply (V/Ph/Hz) | 208/230/1/60 |
Indoor Unit Airflow (H/M/L/T/Q) (Cooling) | 330/272/215/378/165 CFM |
Indoor Unit Airflow (H/M/L/T/Q) (Heating) | 330/272/215/378/165 CFM |
Indoor Unit Sound Pressure Level (H/M/L/T/Q) | 42/35/30/43/23 db(A) |
Indoor Unit Dimensions: |
Height: 11-11/16 inches Width: 35-1/16 inches Depth: 8-1/4 inches |
Indoor Unit Weight | 20 lbs |
Outdoor Unit Sound Pressure Level | 46 dB(A) |
Outdoor Unit Dimensions |
Height: 21-5/8 inches Width: 25-15/16 inches Depth: 10-3/4 inches |
Outdoor Unit Weight | 53 lbs |
Piping Connections |
Liquid: 1/4 Gas: 3/8 |
Operation Range |
Cooling: 50 ~115°F Heating: 5 ~ 64.4°F |
