D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
  • D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
  • D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
  • D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
  • D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
  • D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
  • D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
  • D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
  • D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)
Product Details ＋

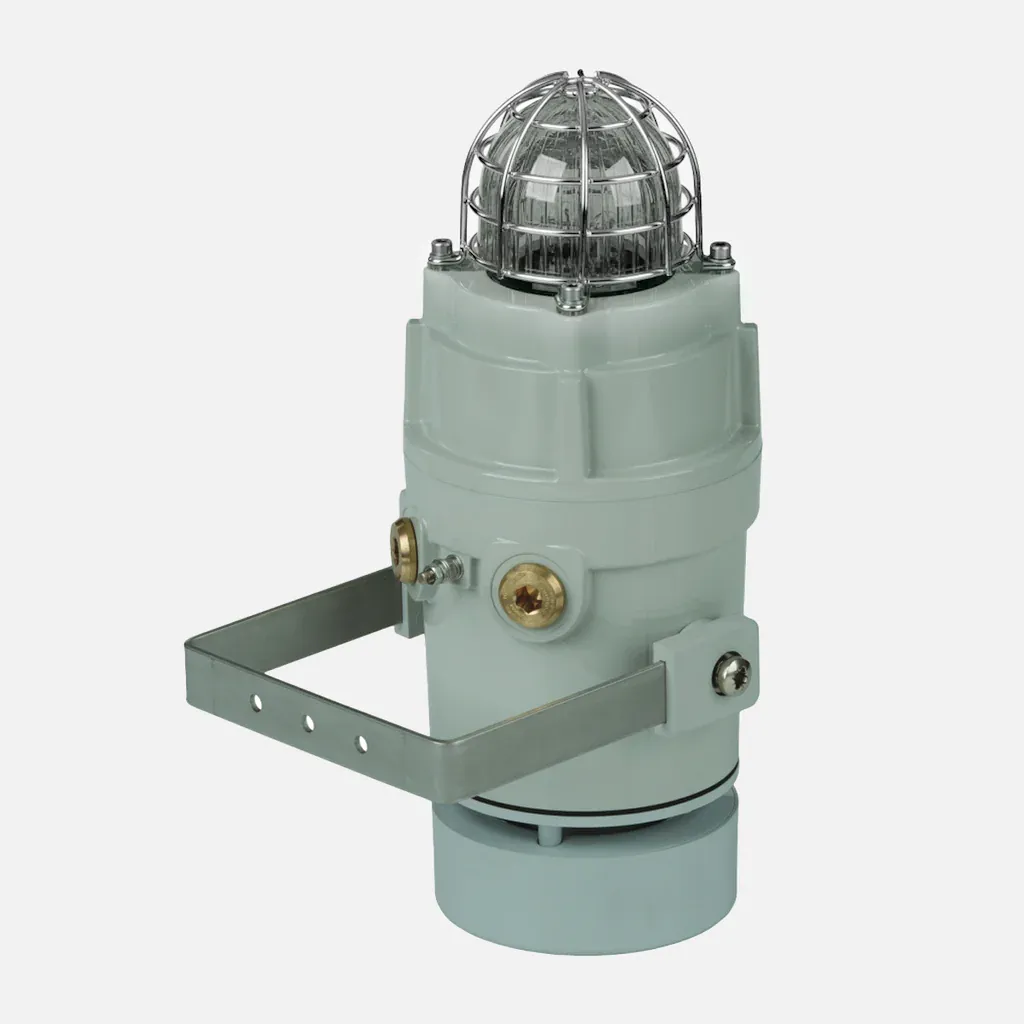

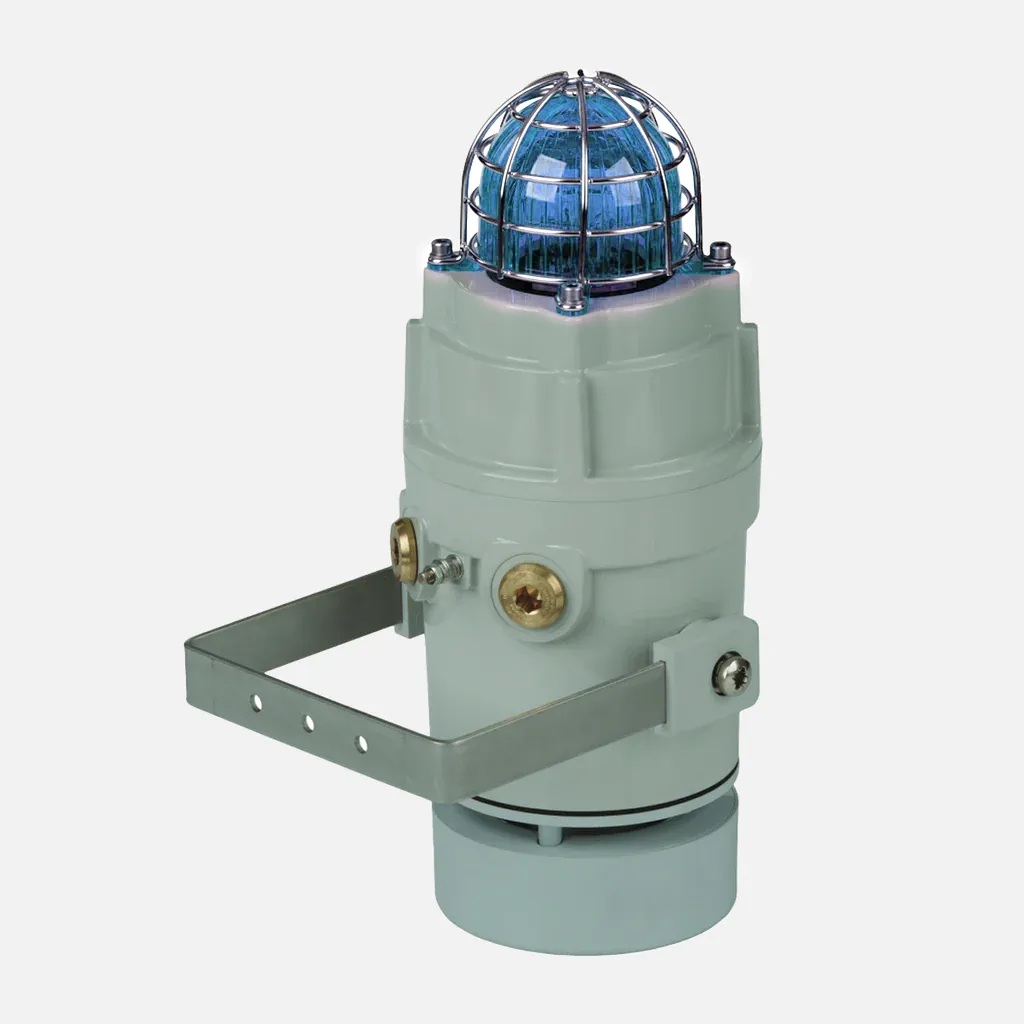

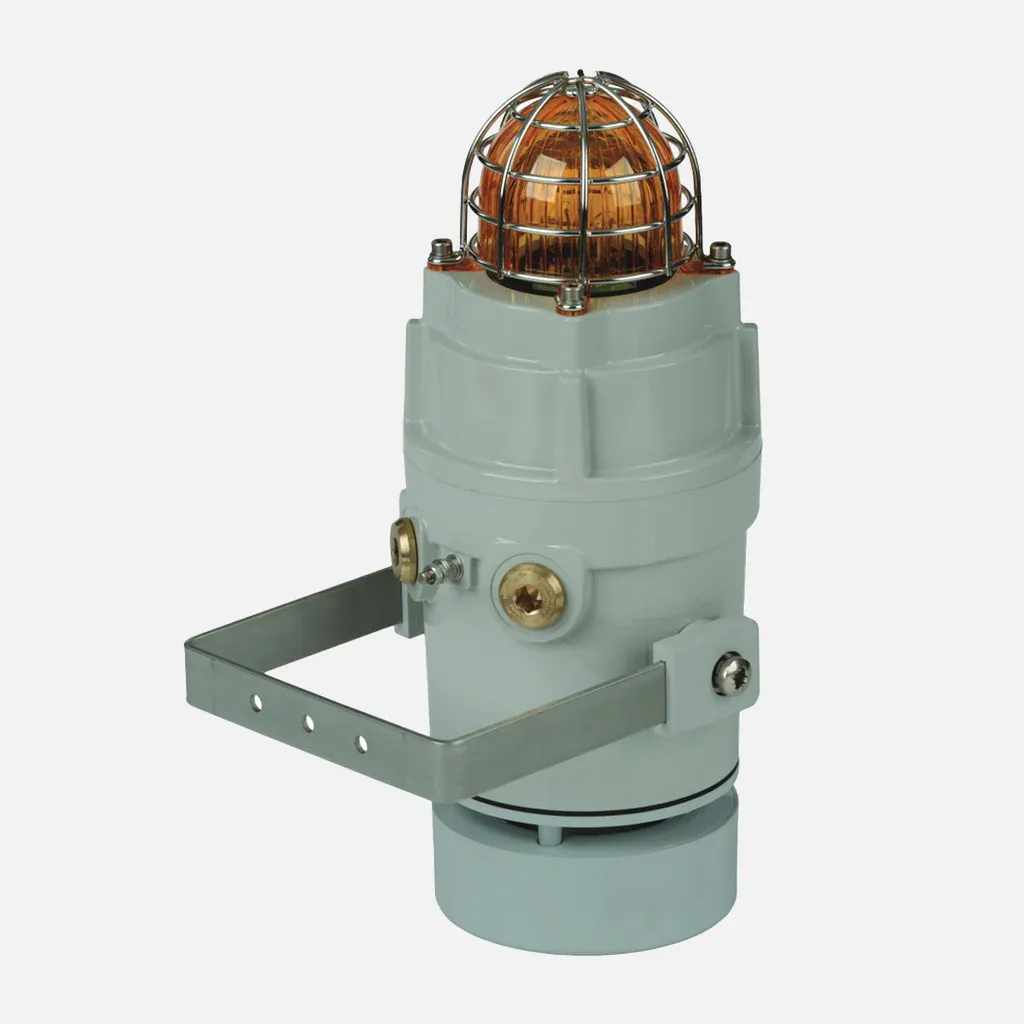

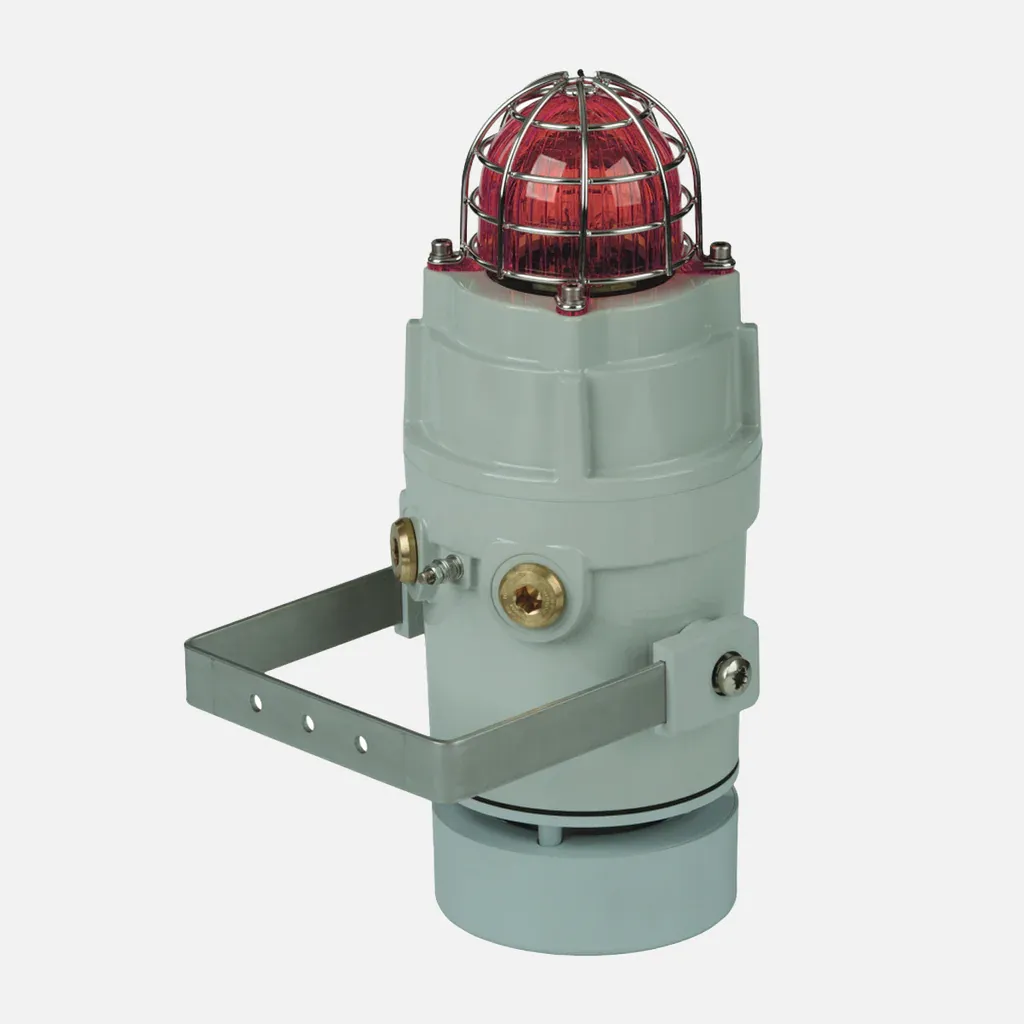

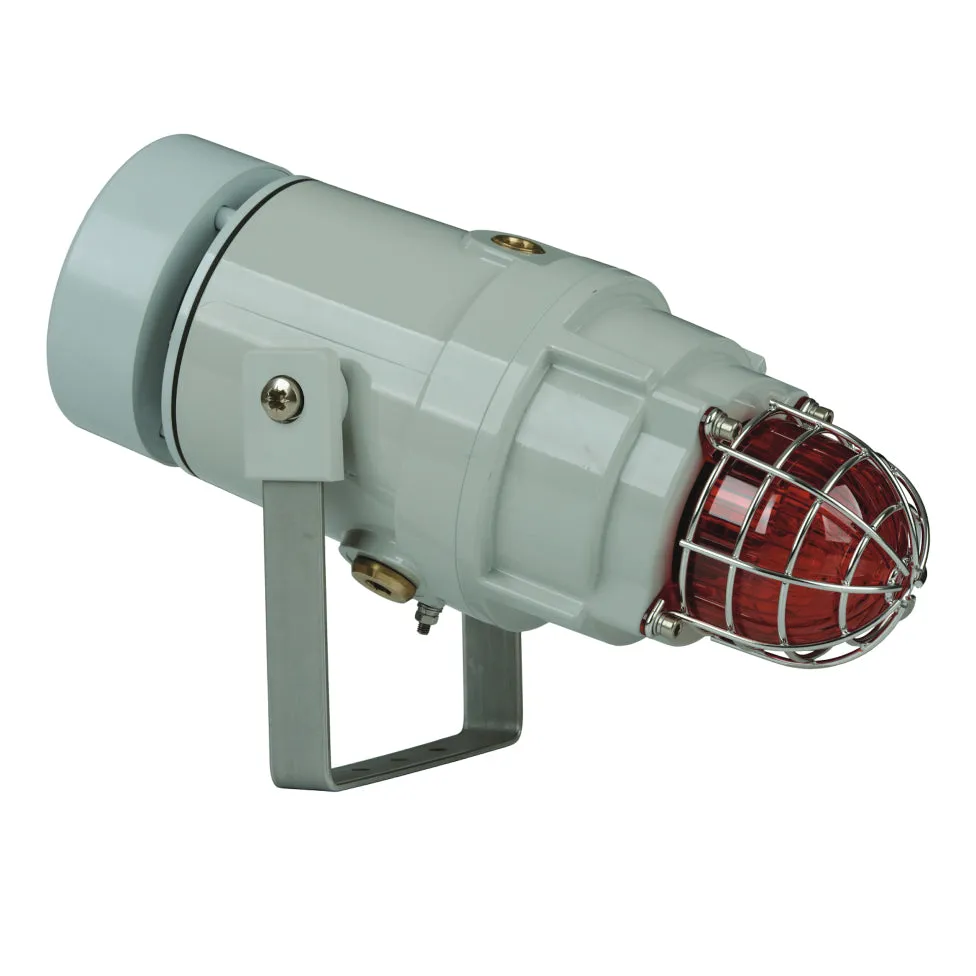

The TOMAR D1xC2X10R is a high output alarm horn sounder with omni-directional radial horn combined with a 1,000,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosure ensures the D1xC2X10R is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications.

The Class I DC version is approved for public mode fire alarm use (alarm horn) and private mode fire alarm use (strobe beacon).

The explosion proof horn strobe allows simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently select-able. Each of the 4 stage/channels can be remotely triggered e.g. via an external relay.

Key Features

  • Automatic synchronization on multi sounder systems.
  • User select-able strobe flash rates
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • High output omni-directional alarm horn, up to 118dB (A)
  • Xenon strobe – private mode fire alarm use (Class I version)
  • Alarm horn – public mode fire alarm use (Class I version)
  • 4 remotely select-able alarm stages/channels
  • Positive or negative line stage/channel switching
  • Choice of 64 alarm tone frequencies
  • Compact form factor
  • Robust corrosion proof aluminum enclosure
  • Stainless steel fixings
  • Triple cable entries
  • Duplicate cable terminations

Models

Alarm SounderXenon BeaconCombined
ModelVoltageCurrentVoltageCurrentCurrent
D1xC1X05R-024-(lens color)20-28 VDC217mA10-14 VDC322mA539mA
D1xC1X05R-115-(lens color)115 VAC /-10% 50Hz/60Hz76mA /- 10%129mA206mA
D1xC1X05R-230-(lens color)230 VAC /-10% 50Hz/60Hz53mA /- 10%79mA132mA

Specs

Sounder/Horn Specs

  • Maximum output: 118dB (A) @ 1 meter [109dB (A) @ 10ft/3m]
  • Nominal output: 112dB (A) @ 1m /- 3dB – Tone 2 [103dB (A) @10ft/3m]
  • No. of tones: 64 (UKOOA / PFEER compliant)
  • No. of stages: 4
  • Volume control: Adjustable -12dB (A)
  • Effective range: 125m/410ft @ 1 KHz
  • Supply Voltages: 24Vdc; 115Vac; 230Vac
  • Stage switching:
    • DC units: Negative or positive
    • AC units: Common supply line

Beacon Specs

  • Energy: 10 Joules (5Ws)
  • Flash rates:
    • Option 1: 1Hz (60 fpm)
    • Option 2: 1.5Hz (90 fpm)
    • Option 3: Double Strike
  • Peak Candela: 1,000,000 cd – calculated from energy (J)
  • Effective Intensity: 500 cd – calculated from energy (J)
  • Peak Candela: 85,544 cd* – measured ref. to I.E.S.
  • Effective Intensity: 260 cd* – measured ref. to I.E.S.

General Specs

  • Ingress protection: EN60529 IP66
  • UL50E / NEMA250: 4 / 4X / 3R / 13
  • Enclosure material: Marine grade aluminum LM6 - copper free Chromate & powder coated – corrosion proof
  • Color: Red (RAL3000), Grey (RAL7038)
  • Cable entries:
    • 1 x 1/2″NPT & 2 x M20 x 1.5mm
    • 1 x 1/2″NPT & 2 x 1/2″NPT
    • 1 x 1/2″NPT & 2 x 3/4″NPT
  • Terminals: 0.5 – 2.5mm² (20-14 AWG)
  • Grounding stud: M5
  • Operating temp:
    • 24Vdc & 115Vac: -40° to 70°C [-40° to 158°F]
    • 230Vac: -40° to 55°C [-40° to 131°F]
  • Storage temp: -50° to 70°C [-58° to 158°F]
  • Relative humidity: 90% at 20°C [68°F]
  • Weight: 4.9kg/10.9lbs

Tone Table

Stage 1WAV fileFrequency DescriptionStage 2Stage 3Stage 4
T 11000 Continuous – PFEER Toxic GasAnyT 2T 44
T 21200/500 @ 1Hz Sweeping – DIN / PFEER P.T.A.P.AnyT 3T 44
T 31000 @ 0.5Hz (1s on, 1s off) Intermittent – PFEER Gen. AlarmAnyT 2T 44
T 41.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s – NF C 48-265AnyT 24T 1
T 5544(100mS)/440 (400mS) – NF S 32-001AnyT 19T 1
T 61500/500 – (0.5s on , 0.5s off) x3 1s gap – AS4428AnyT 44T 1
T 7500-1500Hz Sweeping 2 sec on 1 sec off – AS4428AnyT 44T 1
T 8500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) – NEN 2575AnyT 24T 35
T 91000 (1s on, 1s off)x7 (7s on, 1s off) – IMO Code 1aAnyT 34T 1
T 101000 (1s on, 1s off)x7 (7s on, 1s off) – IMO Code 1aAnyT 34T 1
T 11420(0.5s on, 0.5s off)x3 1s gap – ISO 8201 TemporalAnyT 1T 8
T 121000(0.5s on, 0.5s off)x3 1s gap – ISO 8201 TemporalAnyT 1T 8
T 13422/775 – (0.85 on, 0.5 off) x3 1s gap – NFPA TemporalAnyT 1T 8
T 141000/2000 @ 1Hz – SingaporeAnyT 3T 35
T 15300 ContinuousAnyT 24T 35
T 16440 ContinuousAnyT 24T 35
T 17470 ContinuousAnyT 24T 35
T 18500 Continuous – IMO code 2 (Low)AnyT 24T 35
T 19554 ContinuousAnyT 24T 35
T 20660 ContinuousAnyT 24T 35
T 21800 Continuous – IMO code 2 (High)AnyT 24T 35
T 221200 ContinuousAnyT 24T 35
T 232000 ContinuousAnyT 3T 35
T 242400 ContinuousAnyT 20T 35
T 25440 @ 0.83Hz (0.60s on, 0.60s off) IntermittentAnyT 44T 8
T 26470 @ 0.9Hz (0.55s on, 0.55s off) IntermittentAnyT 44T 8
T 27470 @ 5Hz (0.10s on, 0.10s off) IntermittentAnyT 44T 8
T 28544 @ 1.14Hz (0.43s on, 0.44s off) IntermittentAnyT 24T 8
T 29655 @ 0.875Hz (0.57s on, 0.57s off) IntermittentAnyT 44T 8
T 30660 @ 0.28Hz (1.80s on, 1.80s off) IntermittentAnyT 24T 8
T 31660 @ 3.3Hz (0.15s on, 0.15s off) IntermittentAnyT 24T 8
T 32745 @ 1Hz (0.50s on, 0.50s off) IntermittentAnyT 24T 8
T 33800 (0.25s on, 1.00s off) IntermittentAnyT 24T 8
T 34800 @ 2Hz (0.25s on, 0.25s off) – IMO code 3.a (High)AnyT 24T 8
T 351000 @ 1Hz (0.50s on, 0.50s off) IntermittentAnyT 24T 8
T 362400 @ 1Hz (0.50s on, 0.50s off) IntermittentAnyT 24T 8
T 372900 @ 5Hz (0.10s on, 0.10s off) IntermittentAnyT 24T 8
T 38363/518 @ 1Hz (0.50s / 0.50s) AlternatingAnyT 8T 19
T 39450/500 @ 2Hz (0.25s / 0.25s) AlternatingAnyT 8T 19
T 40554/440 @ 1Hz (0.50s / 0.50s) AlternatingAnyT 24T 19
T 41554/440 @ 0.65Hz (0.76s / 0.76s) AlternatingAnyT 8T 19
T 42561/760 @ 0.83Hz (0.60s / 0.60s) AlternatingAnyT 8T 19
T 43780/600 @ 0.96Hz (0.52s / 0.52s) AlternatingAnyT 8T 19
T 44800/1000 @ 2Hz (0.25s / 0.25s) AlternatingAnyT 24T 19
T 45970/800 @ 2Hz (0.25s / 0.25s) AlternatingAnyT 8T 19
T 46800/1000 @ 0.875Hz (0.57s / 0.57s) AlternatingAnyT 24T 19
T 472400/2900 @ 2Hz (0.25s / 0.25s) AlternatingAnyT 24T 19
T 48500/1200 @ 0.3Hz (1.67s / 1.67s) SweepingAnyT 24T 12
T 49560/1055 @ 0.18Hz (2.73s / 2.73s) SweepingAnyT 24T 12
T 50560/1055 @ 3.3Hz (0.15s / 0.15s) SweepingAnyT 24T 12
T 51600/1250 @ 0.125Hz (4s / 4s) SweepingAnyT 24T 12
T 52660/1200 @ 1Hz (0.50s / 0.50s) SweepingAnyT 24T 12
T 53800/1000 @ 1Hz (0.50s / 0.50s) SweepingAnyT 24T 12
T 54800/1000 @ 7Hz (0.07s / 0.07s) SweepingAnyT 24T 12
T 55800/1000 @ 50Hz (0.01s / 0.01s) SweepingAnyT 24T 12
T 562400/2900 @ 7Hz (0.07s / 0.07s) SweepingAnyT 24T 12
T 572400/2900 @ 1Hz (0.50s / 0.50s) SweepingAnyT 24T 12
T 582400/2900 @ 50Hz (0.01s / 0.01s) SweepingAnyT 24T 12
T 592500/3000 @ 2Hz (0.25s / 0.25s) SweepingAnyT 24T 12
T 602500/3000 @ 7.7Hz (0.65s / 0.65s) SweepingAnyT 24T 12
T 61800Hz Motor SirenAnyT 24T 12
T 621200Hz Motor SirenAnyT 24T 12
T 632400Hz Motor SirenAnyT 24T 12
T 64Simulated BellAnyT 21T 12
For Stage 2 any Stage 1 alarm tone sound can be selected.
Country specific or custom tone configurations and alarm frequencies are available upon request.
