SPECIFICATIONS

Overview
Height of Cabinet	21.38" (54 cm)
Width	18.5" (47 cm)
Depth	17.63" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Capacity	1.4 cu.ft. (40 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	35.0 lbs. (16 kg)
Shipping Weight	37.0 lbs. (17 kg)
Parts & Labor Warranty	2 Years
Compressor Warranty	5 Years
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	14.38" (37 cm)
Interior Width	13.5" (34 cm)
Interior Depth	13.25" (34 cm)
Shelf Type	Wire
Shelf Qty	1
Thermostat Type	Digital
Refrigerant Type	R134a
Refrigerant Amount	1.5 oz.
Level Legs	2
Compressor Step Height	8.5" (22 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	6.0" (15 cm)

AVAILABLE UPGRADES

Handle

CP Full-Length Copper Pipe Handle

Factory-installed full-length handle made from pure copper for antimicrobial protection

TBC Copper Towel Bar Handle

Factory-installed handle made from pure copper for antimicrobial protection

Exterior

DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac	FA Front - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
FA Rear - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing	Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing Door reversal to left hand swing	ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar.
Extra key Extra keys available for purchase	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad

Keypad door lock powered by appliance power cord for keyless security

KEYPAD

Battery-powered keypad door lock installed for keyless security

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to .
Note: Nickel is a component of stainless steel.

FEATURES

Compact dimensions
Ideal size for use on top of counters

-20° capable
Low temperature capability ideal for certain sensitive items

Digital thermostat
Electronic controls for more precise temperature management

High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display
Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree

Factory installed lock
Keyed lock for secure interior

Self-closing door
Door closes automatically when opened at angles less than 90º

Access port with contact
Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order

Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety

Manual defrost
Static cooling system for reduced temperature fluctuations

Removable shelf
Includes one wire shelf for easier storage

One-piece interior liner
Seamless interior for easier cleanup

Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Factory reversible door
Standard unit ships RHD but can be ordered LHD

100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

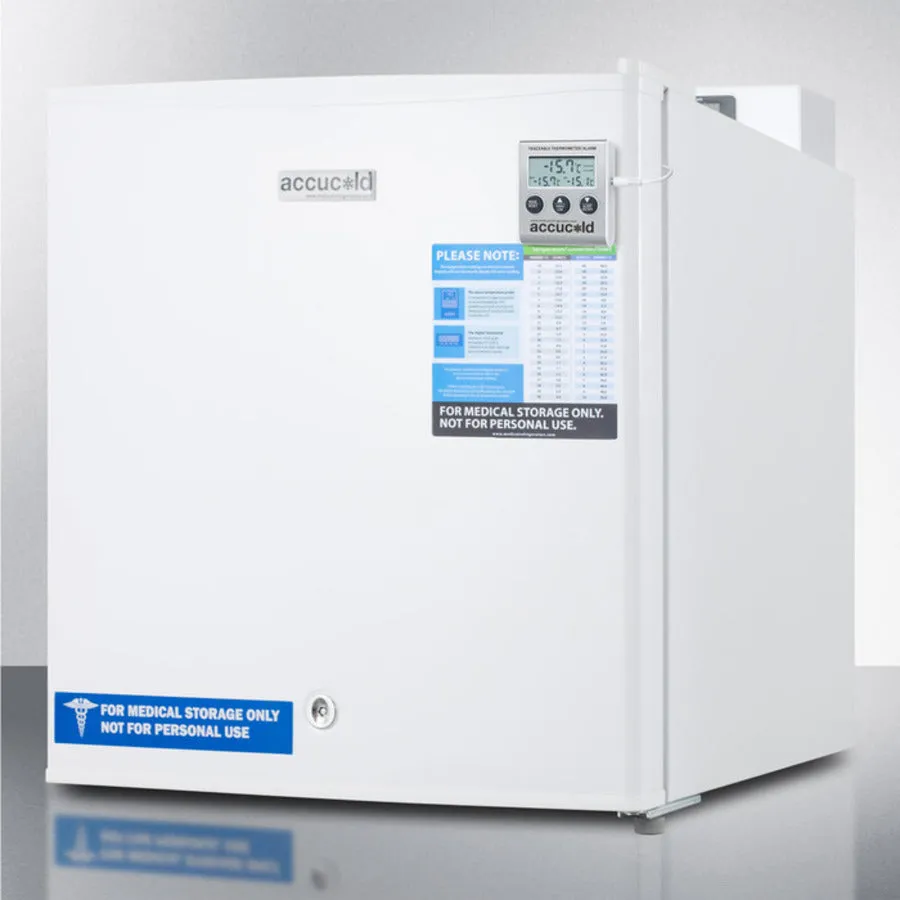

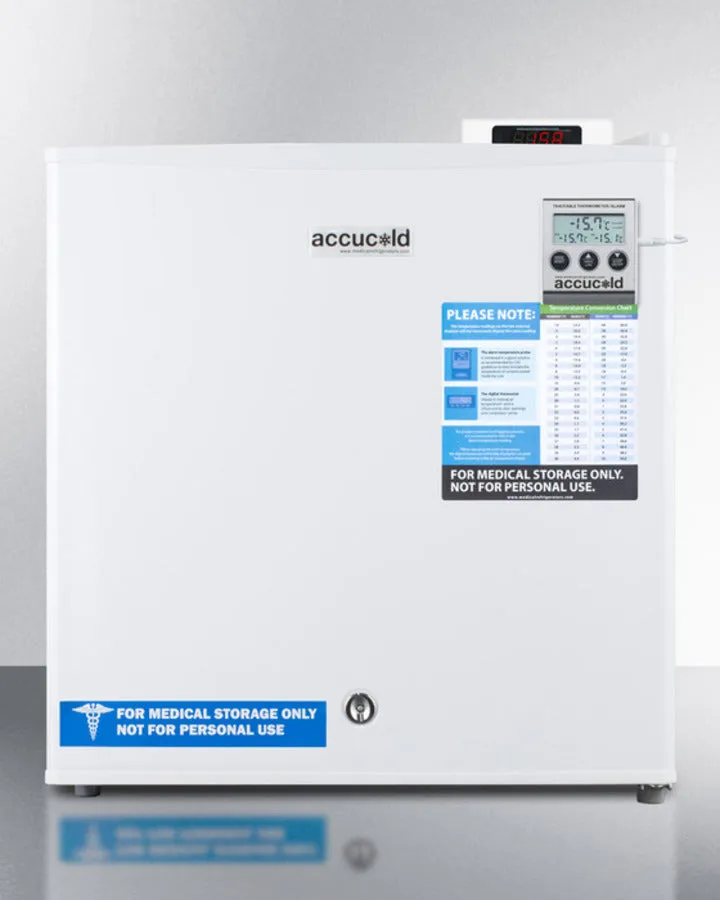

The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.The FS24LVAC is a compact all-freezer designed to reach -20º C, the ideal temperature for long-term storage of select sensitive materials. The 1.4 cu.ft. manual defrost interior offers static cooling for stable results. A removable wire shelf allows easy storage options, with a seamless interior liner to simplify cleanup. This unit has a flat door liner as recommended by the CDC.For optimum temperature assurance, the FS24LVAC includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. An access port with a contact is pre-installed, allowing users to install additional monitoring equipment. Customers can specify the access port location upon order.The FS24LVAC can be paired with the FFAR24LVAC all-refrigerator for a matching set. These units can also be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.
