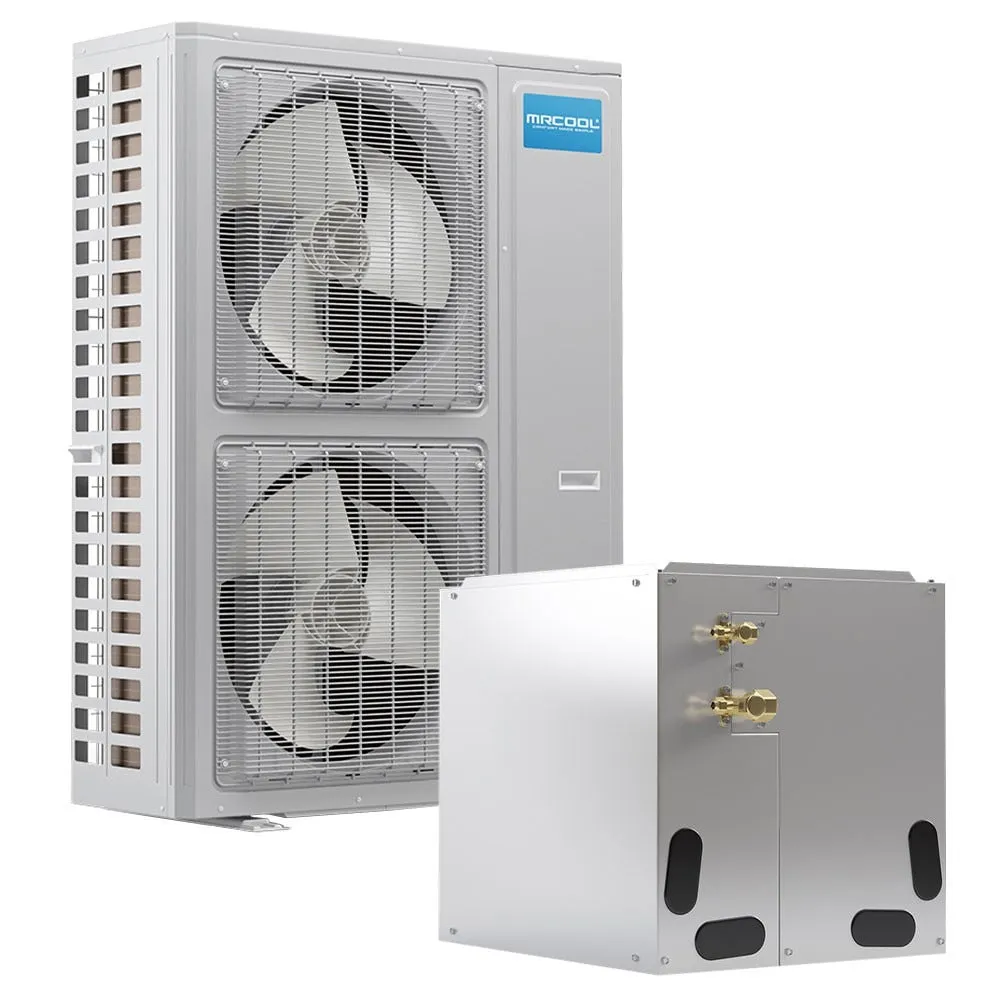

4 to 5 Ton 18 SEER MrCool Universal Mobile Home Air Conditioner & Coil System
Experience year-round comfort and savings with the 4 to 5 Ton 18 SEER MrCool Universal Mobile Home Air Conditioner & Coil System. This intelligently designed system from MrCool combines cutting-edge technology and high-quality components to ensure your living space remains cozy in the winter and cool in the summer.

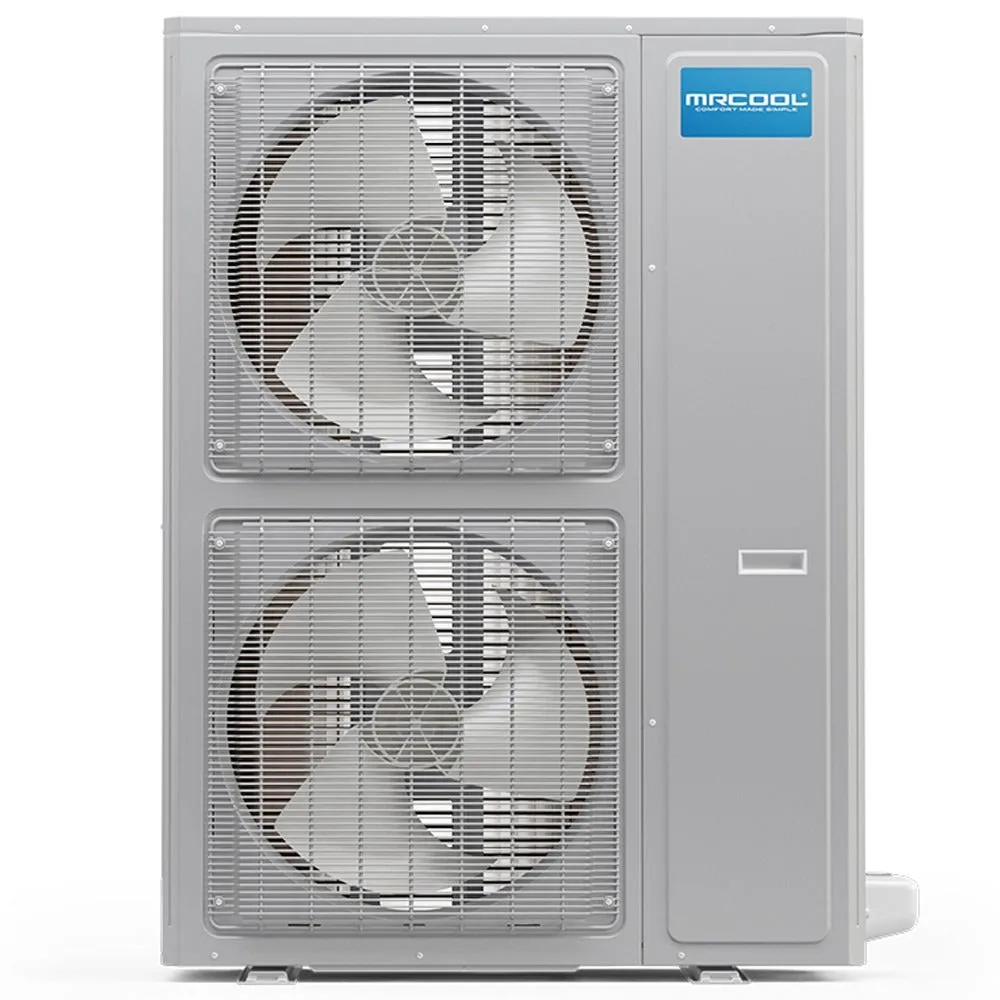

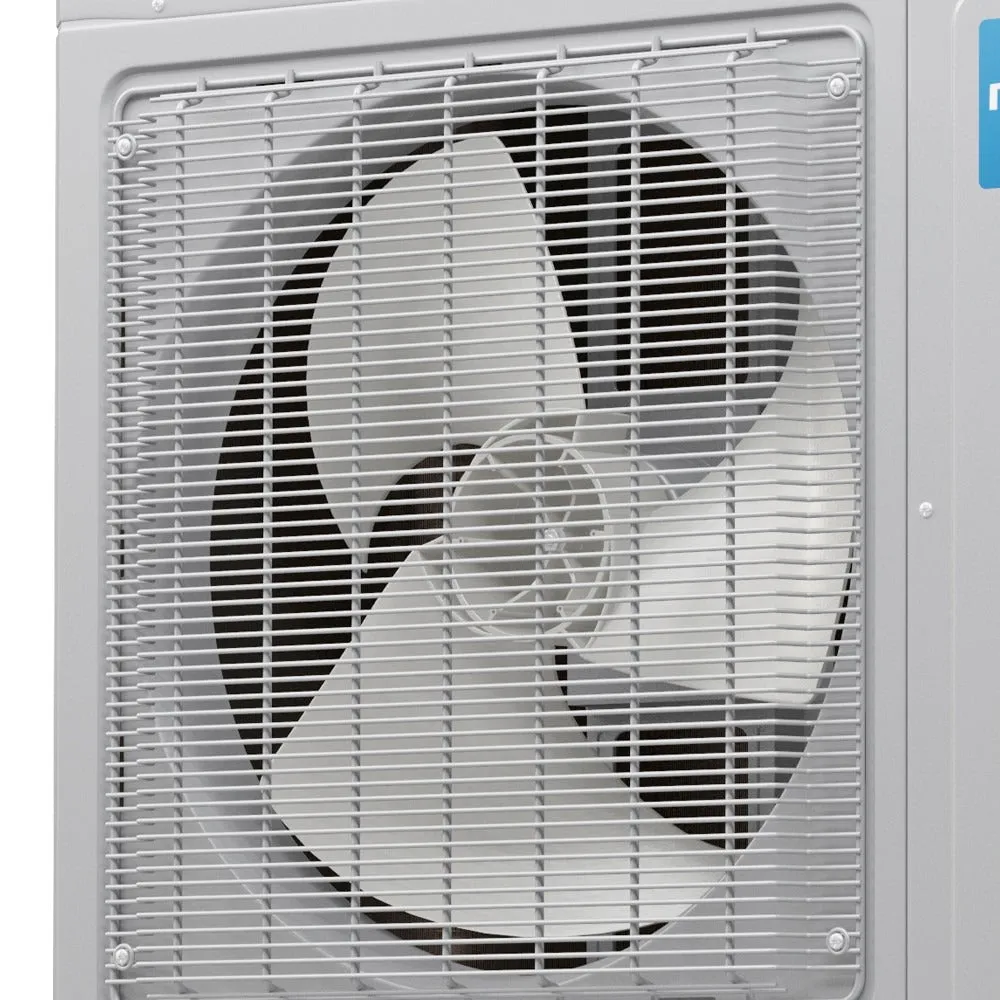

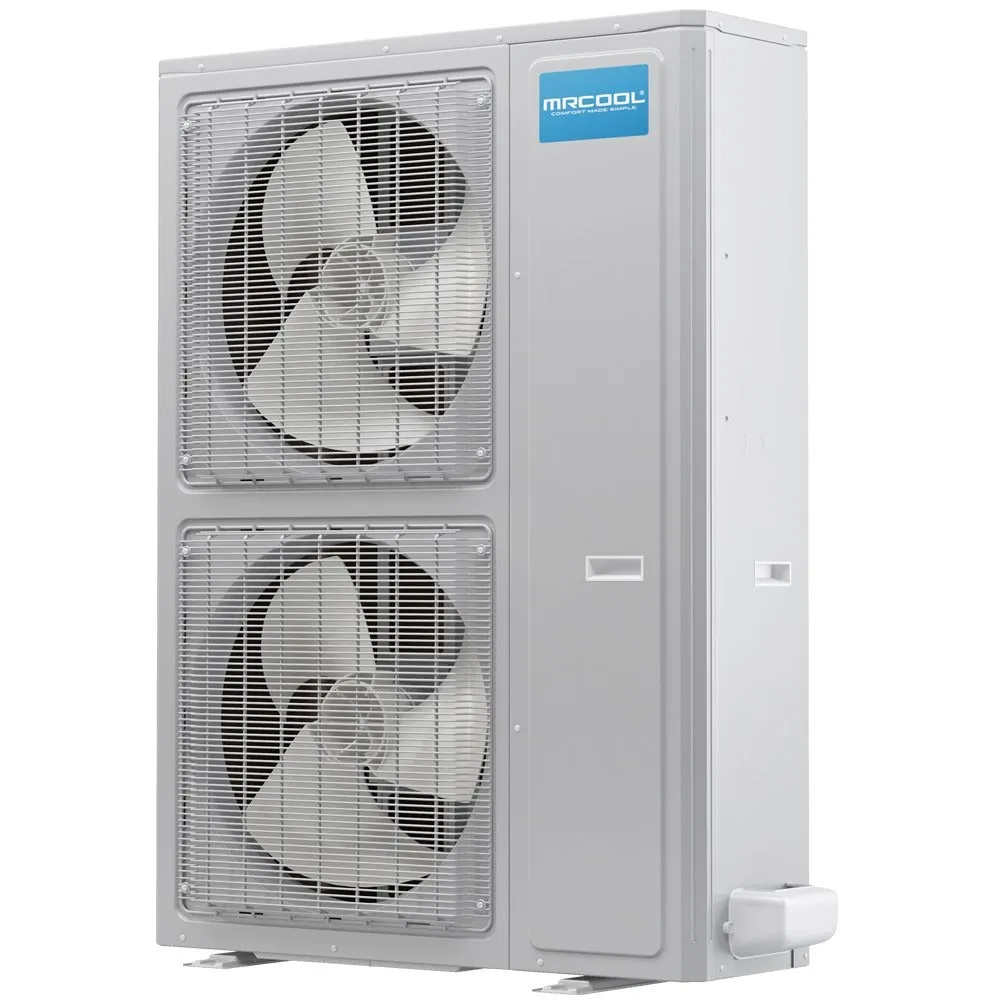

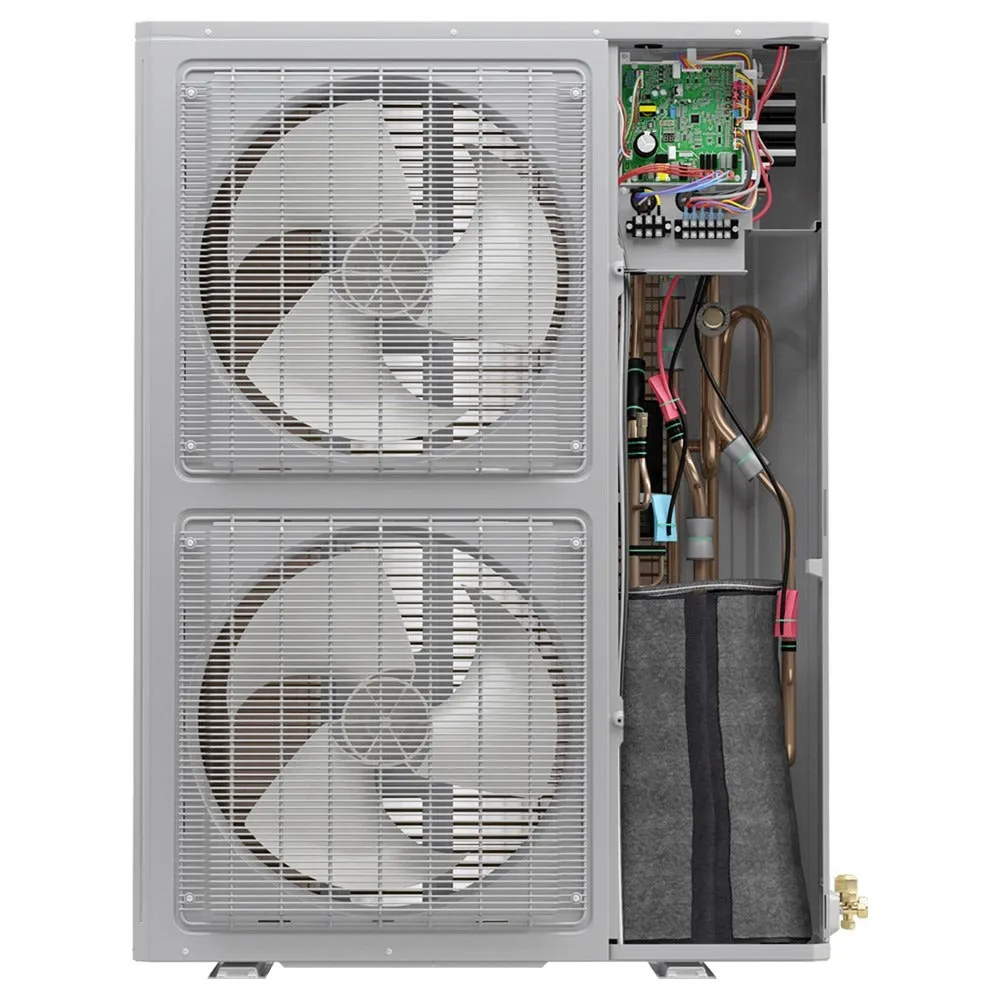

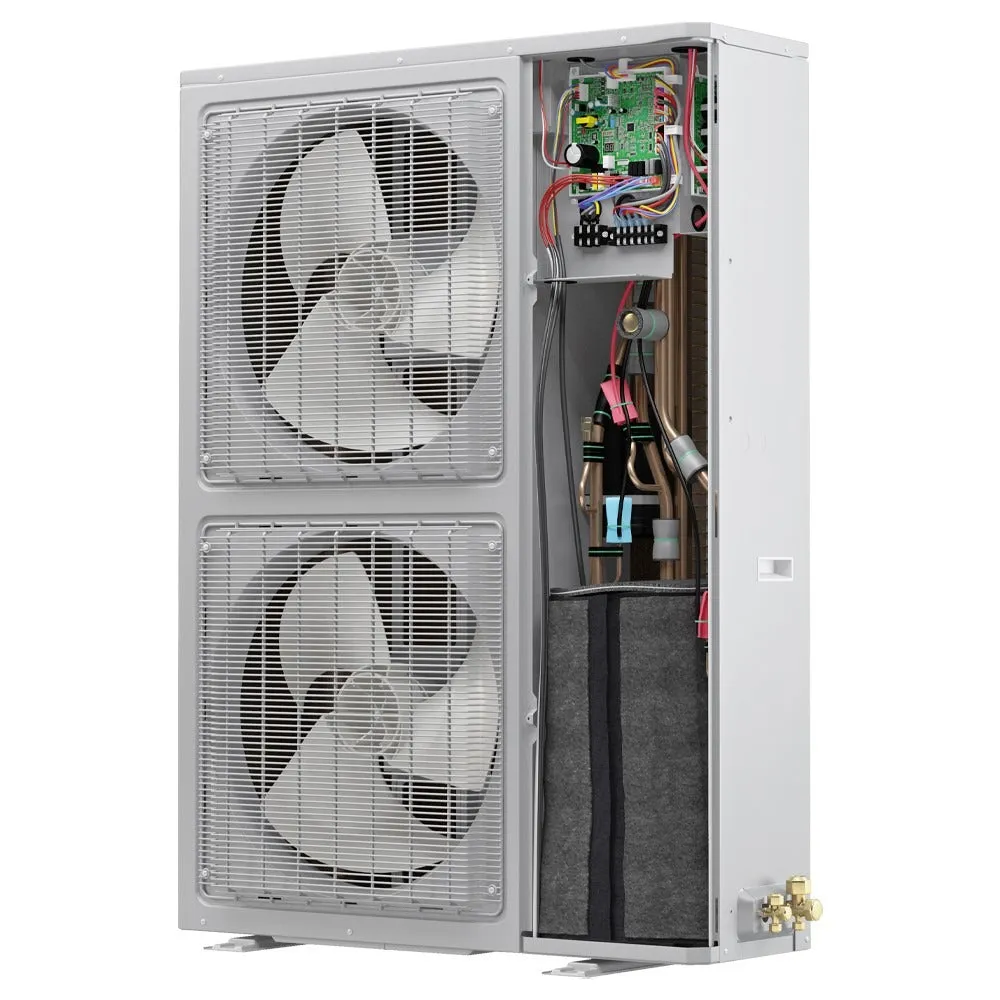

4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser - MDUCO18048060

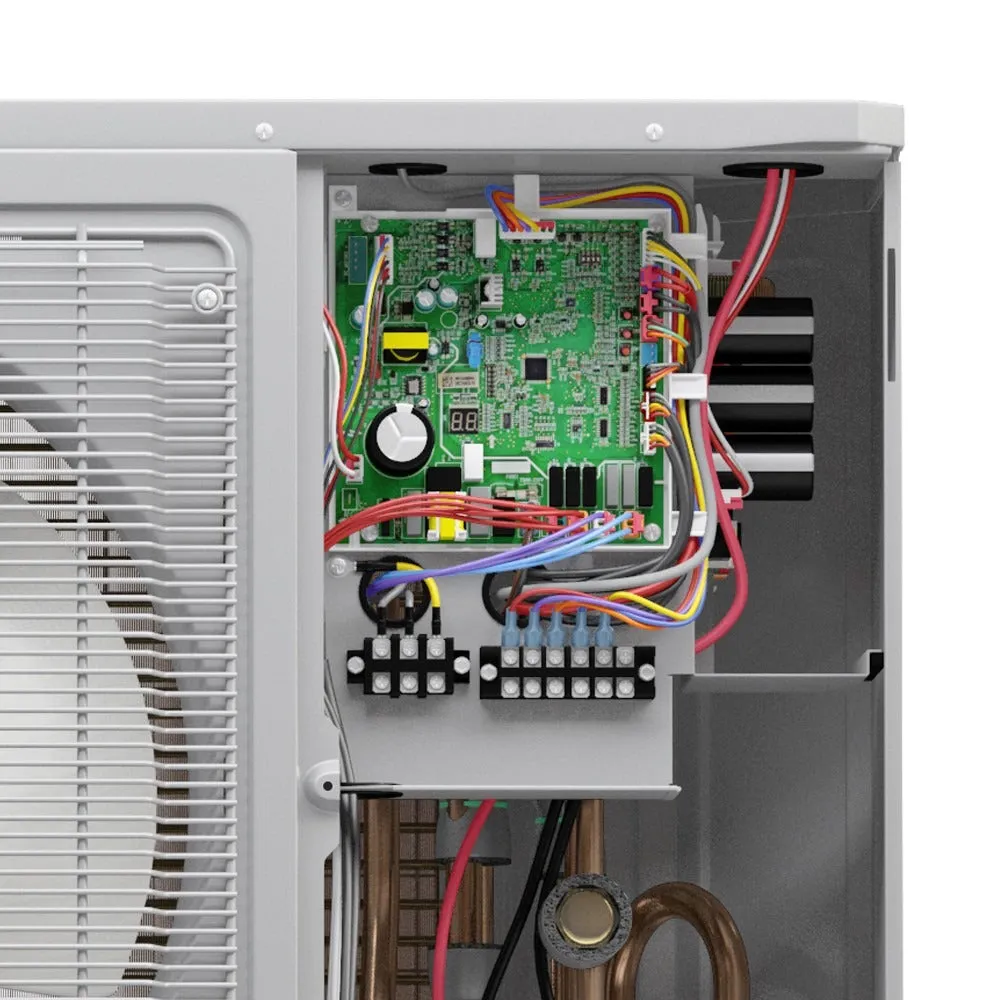

The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 18 SEER rating.
- 4 Ton mode 18 SEER, 5 Ton mode 17 SEER
- Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design

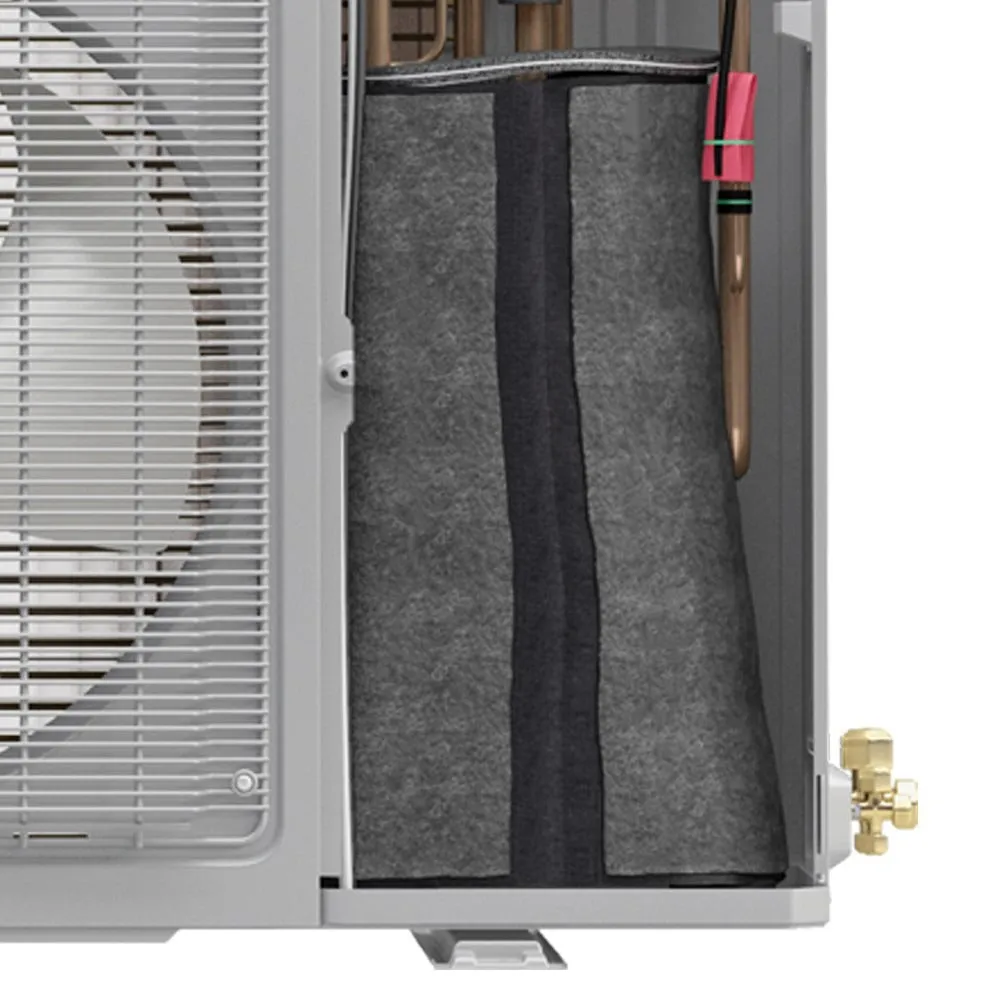

- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion

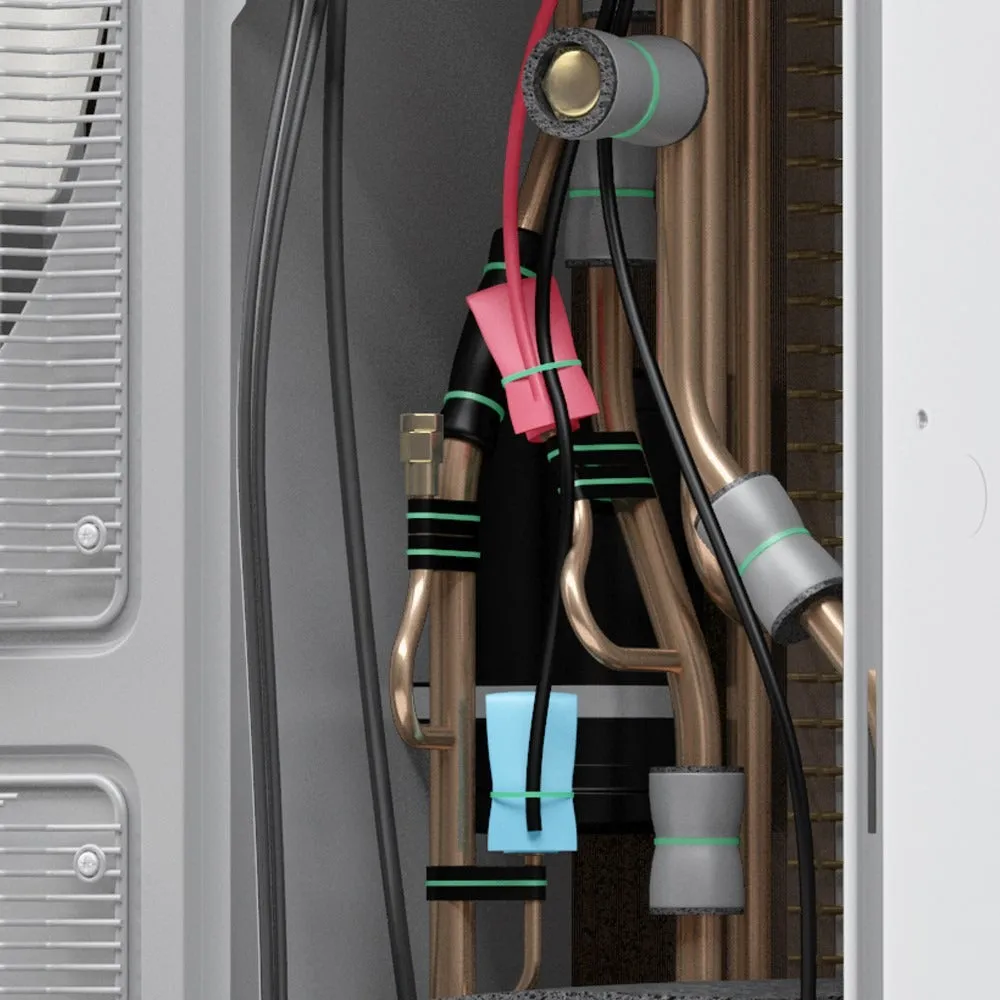

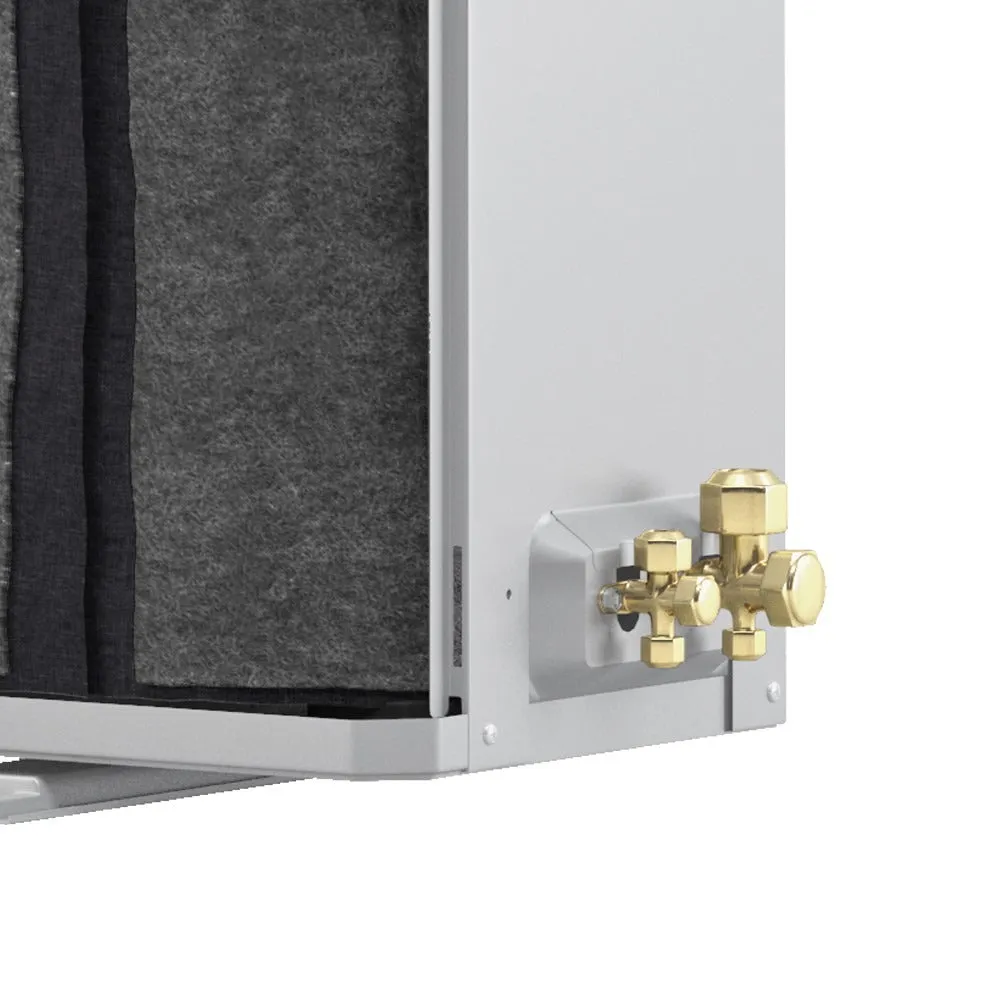

- Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty

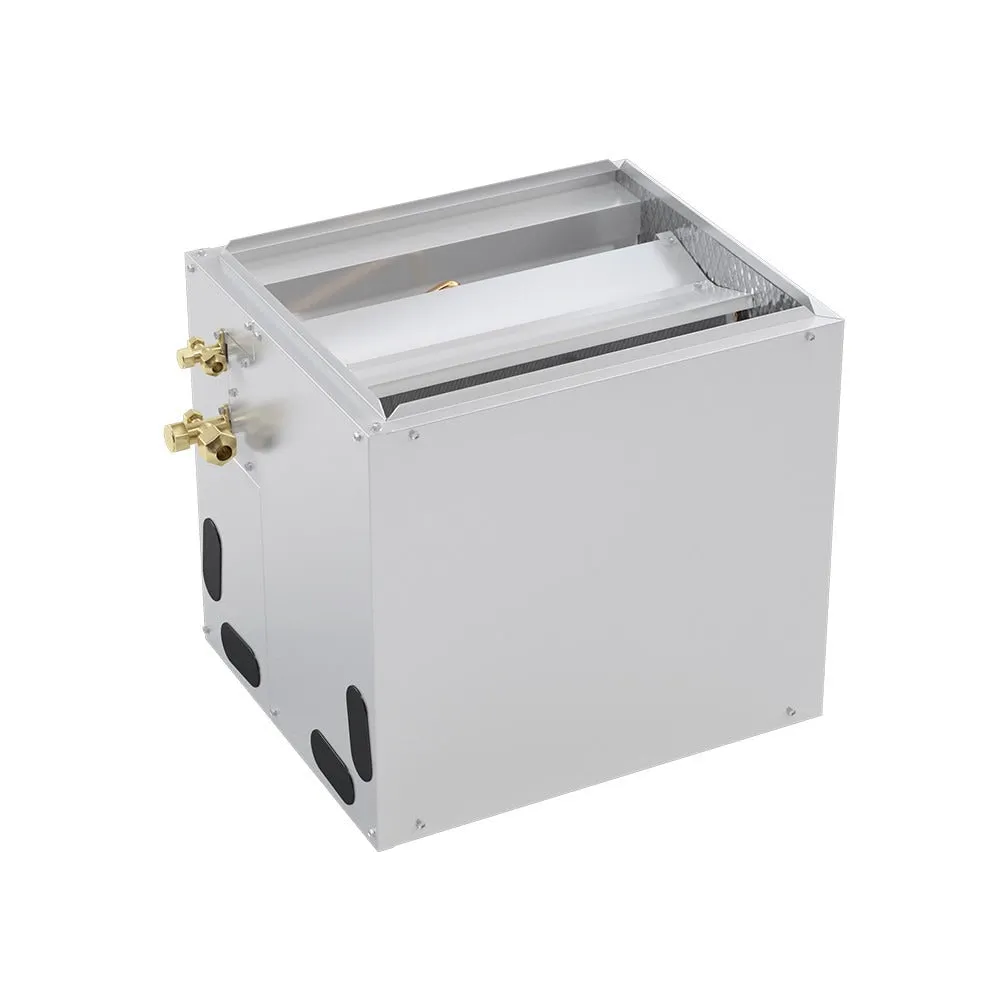

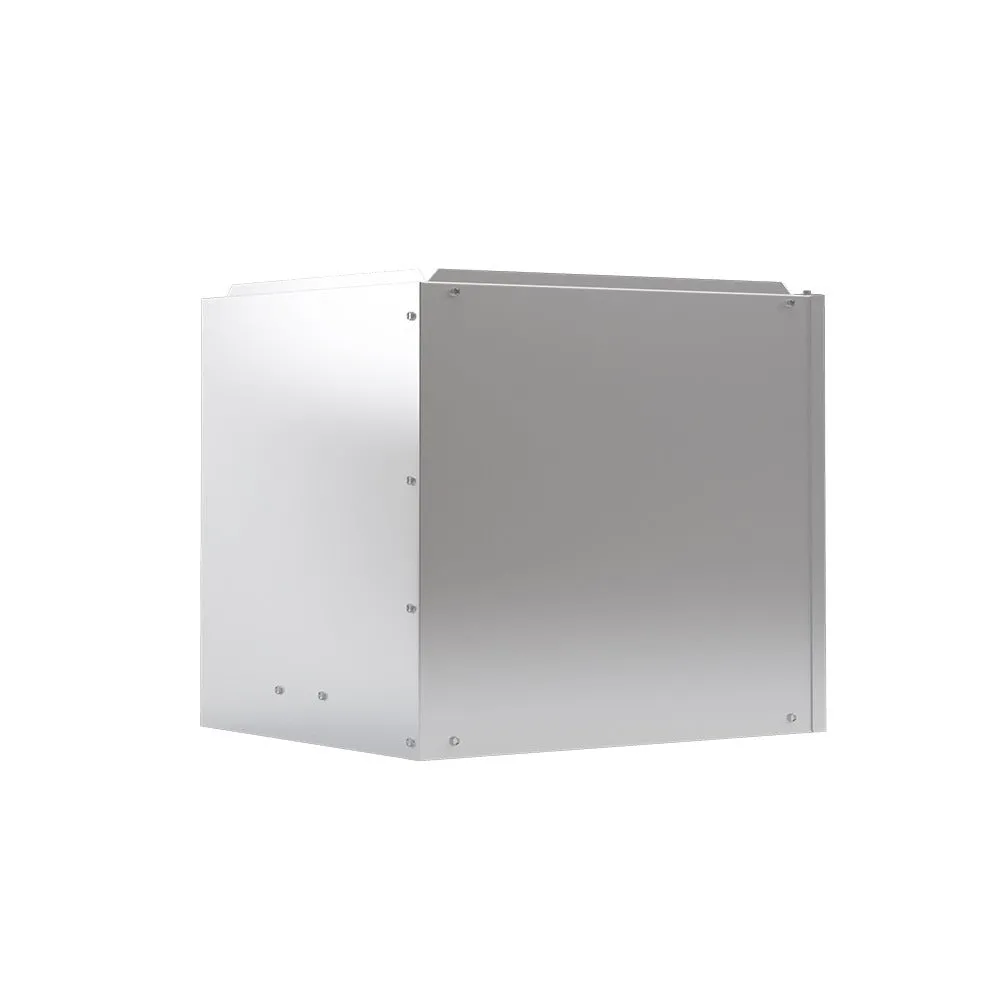

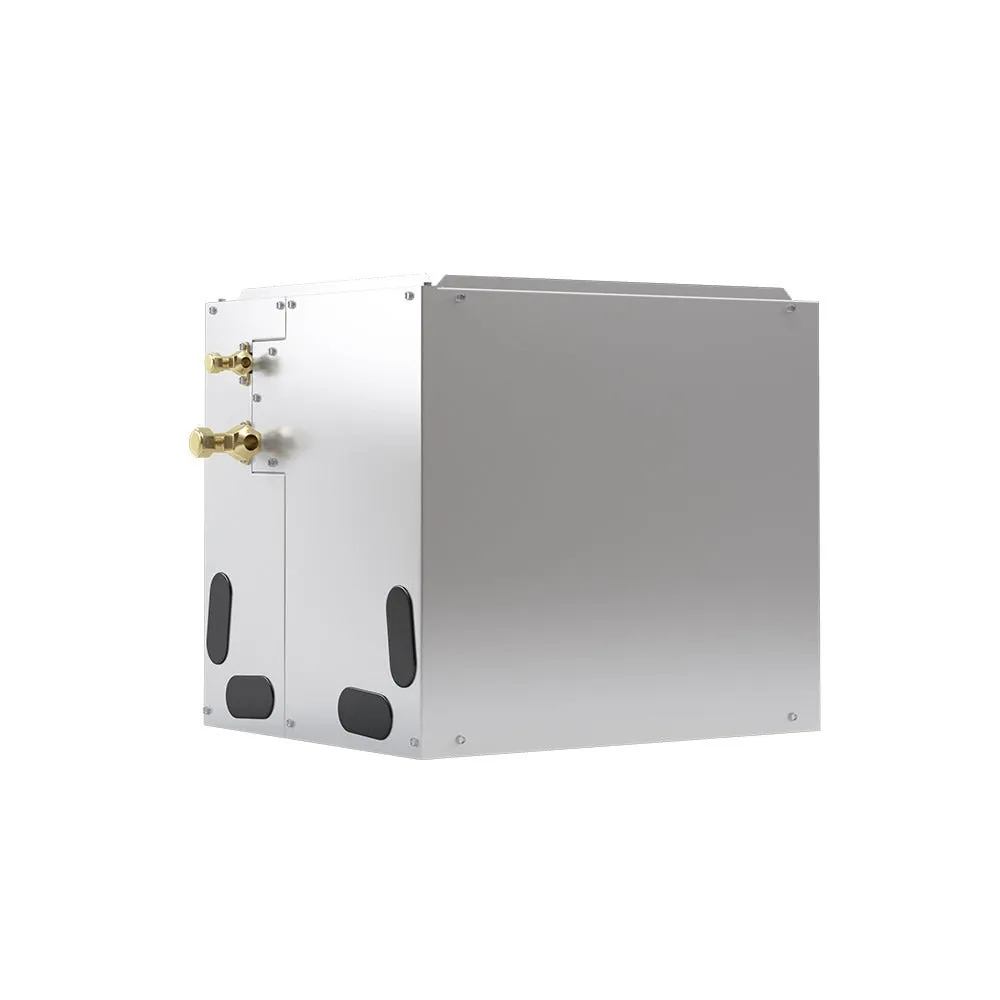

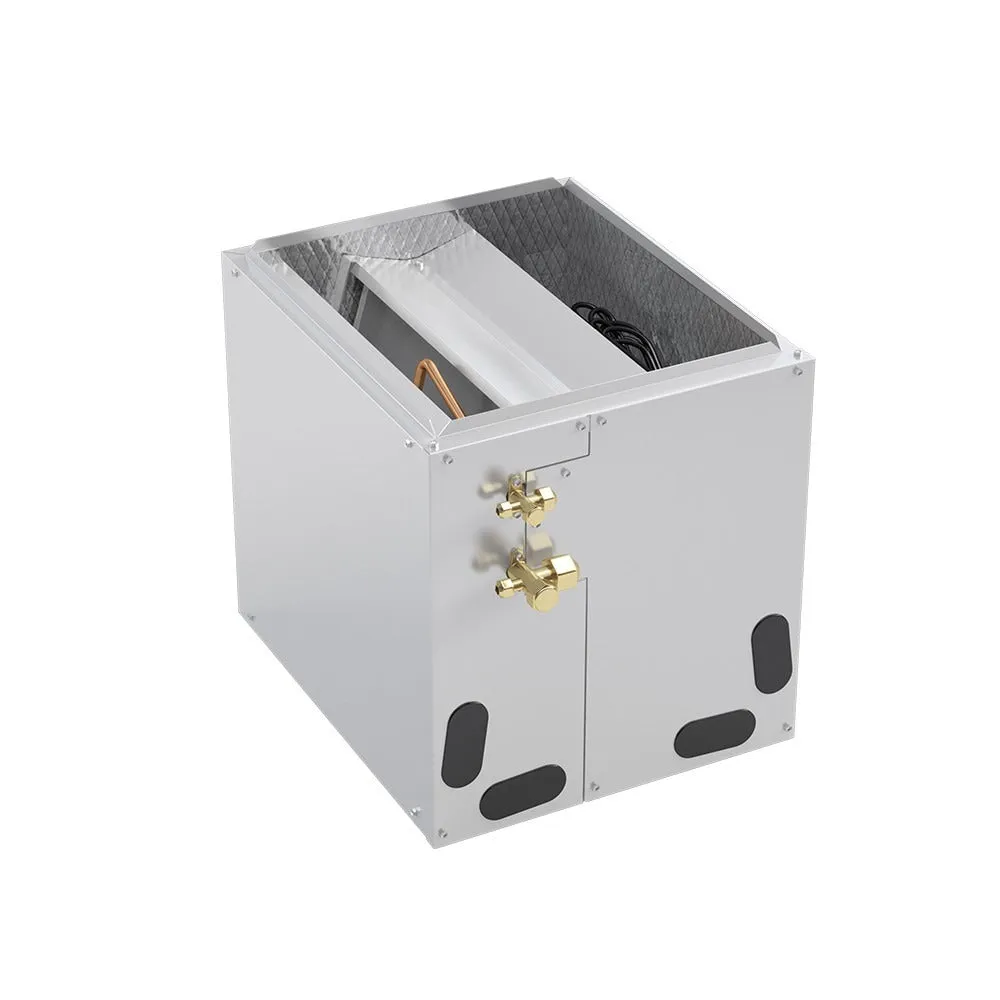

4 to 5 Ton MrCool Universal Evaporator Coil - MDUCC15048060
The Universal A-Coil is a versatile and adaptable option for your home comfort. It can be paired with other Universal units or as a replacement for an outdated, ineffective A-coil in your current system. The Universal A-Coil offers quieter operation and quick installation than many competitor models. It also features a liquid pipe designed to guard against excessive condensation. That could save you from costly property damage. It is equipped with multiple safeguards including protection against, high-pressure, high-discharge temperature, overload, IPM, and PFC in order to ensure effective and efficient operation for the life of the unit.
Bundled System Specifications:
| Brand | MRCOOL |
| Model | MDCACC18048060 |
| UPC | 810063869175 |
| AHRI Number | 207177527 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Bundle Cooling Efficiency | 18 SEER |
| EER | 11.7 |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | Prop 65 WARNING |
MDUCO18048060 Specifications:
| Brand | MRCOOL |
| Model | MDUCO18048060 |
| UPC | 810063867492 |
| Avg Coverage Area | 2,000 - 2,500 Sq Ft |
| Compressor | Inverter |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 45 amps |
| Product Height (in) | 56.375 |
| Product Length (in) | 37 |
| Product Width (in) | 12.625 |
| Refrigerant | R-410a |
| Cooling Efficiency | 18 SEER |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 289.0000 |
| Region Compatibility | North, Southeast |
MDUCC15048060 Specifications:
| Brand | MRCOOL |
| Model | MDUCC15048060 |
| UPC | 810063867539 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Product Height (in) | 28.5 |
| Product Length (in) | 21.25 |
| Product Width (in) | 24.5 |
| Refrigerant | R-410a |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year Parts |
| Weight (lbs) | 110.0000 |
