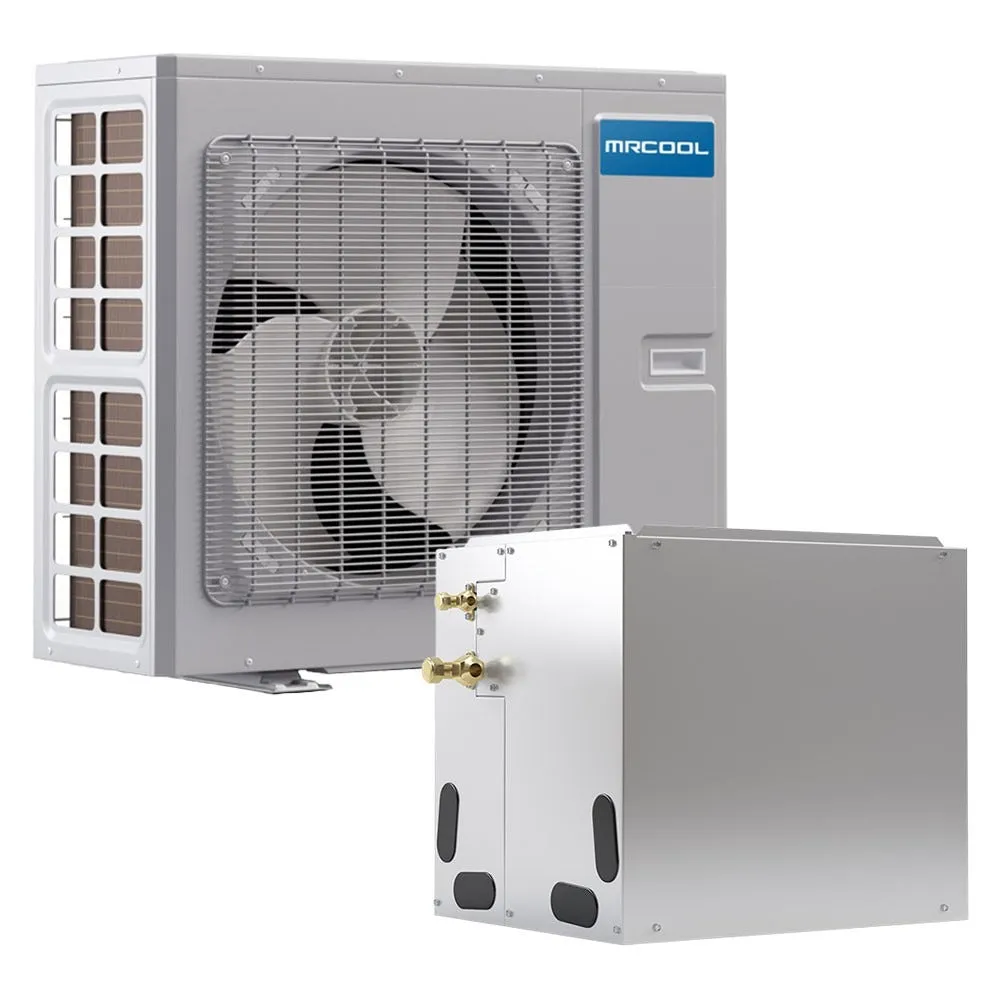

2 to 3 Ton 20 SEER MrCool Universal Mobile Home Air Conditioner & Coil System
Experience year-round comfort and savings with the 2 to 3 Ton 20 SEER MrCool Universal Mobile Home Air Conditioner & Coil System. This intelligently designed system from MrCool combines cutting-edge technology and high-quality components to ensure your living space remains cool in the hottest weather.

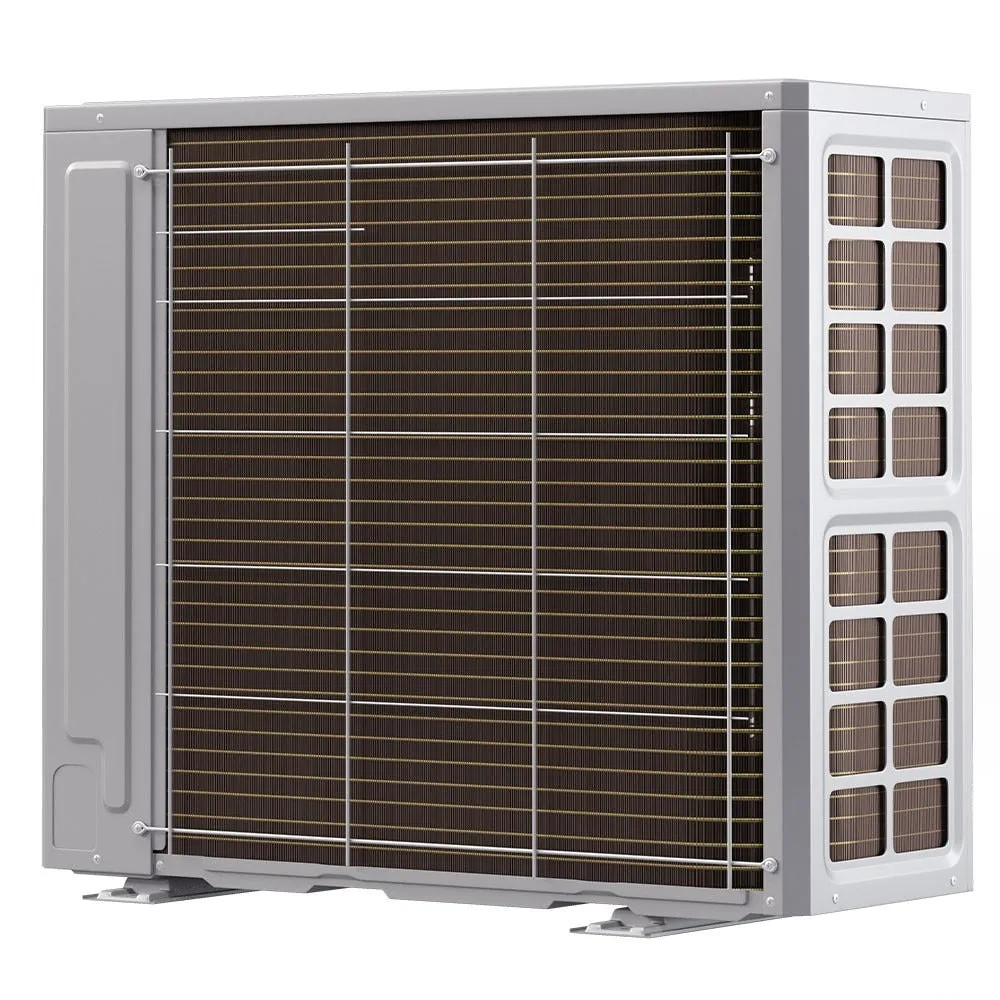

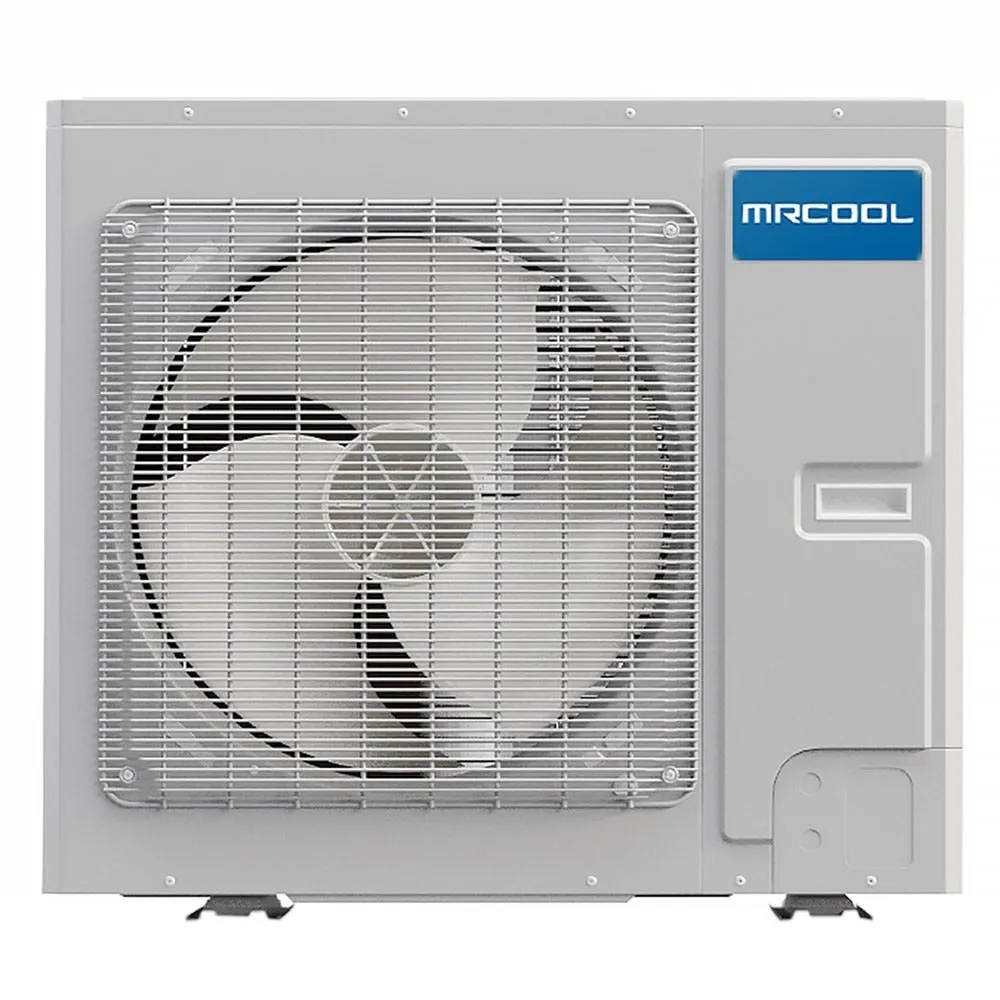

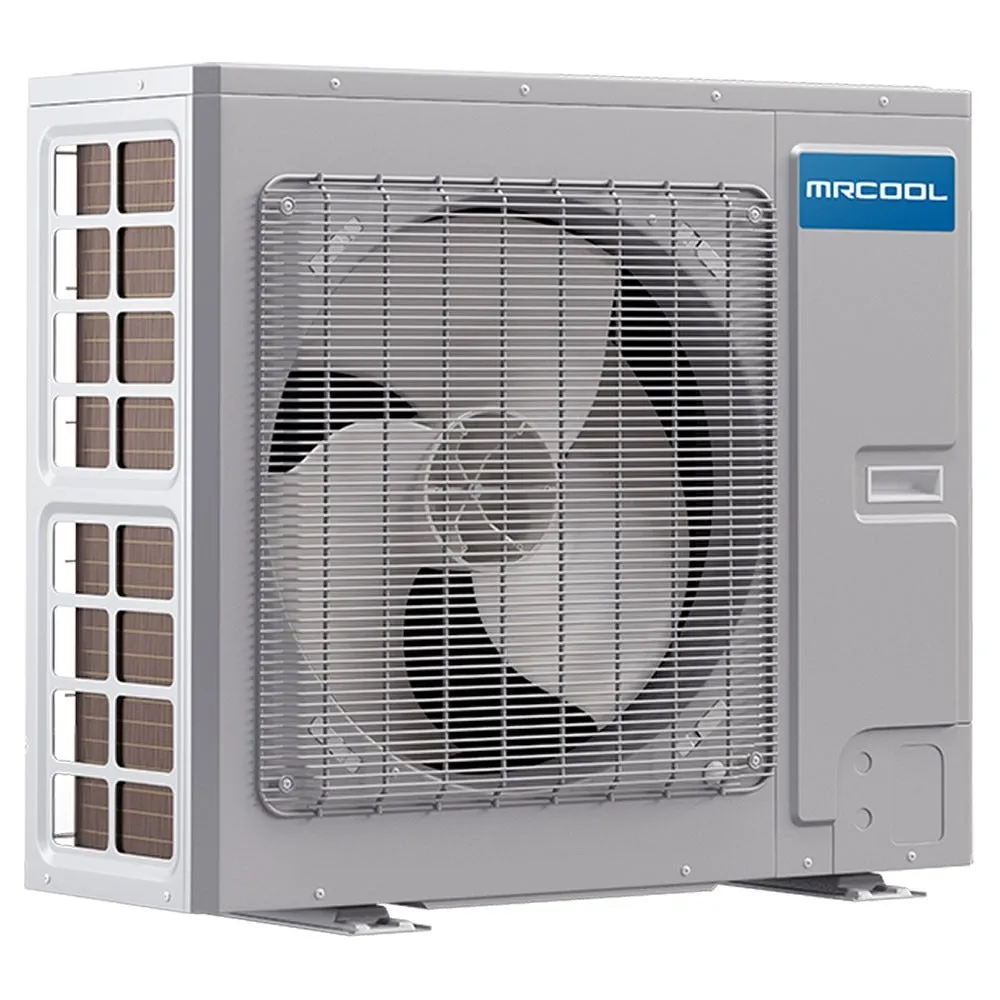

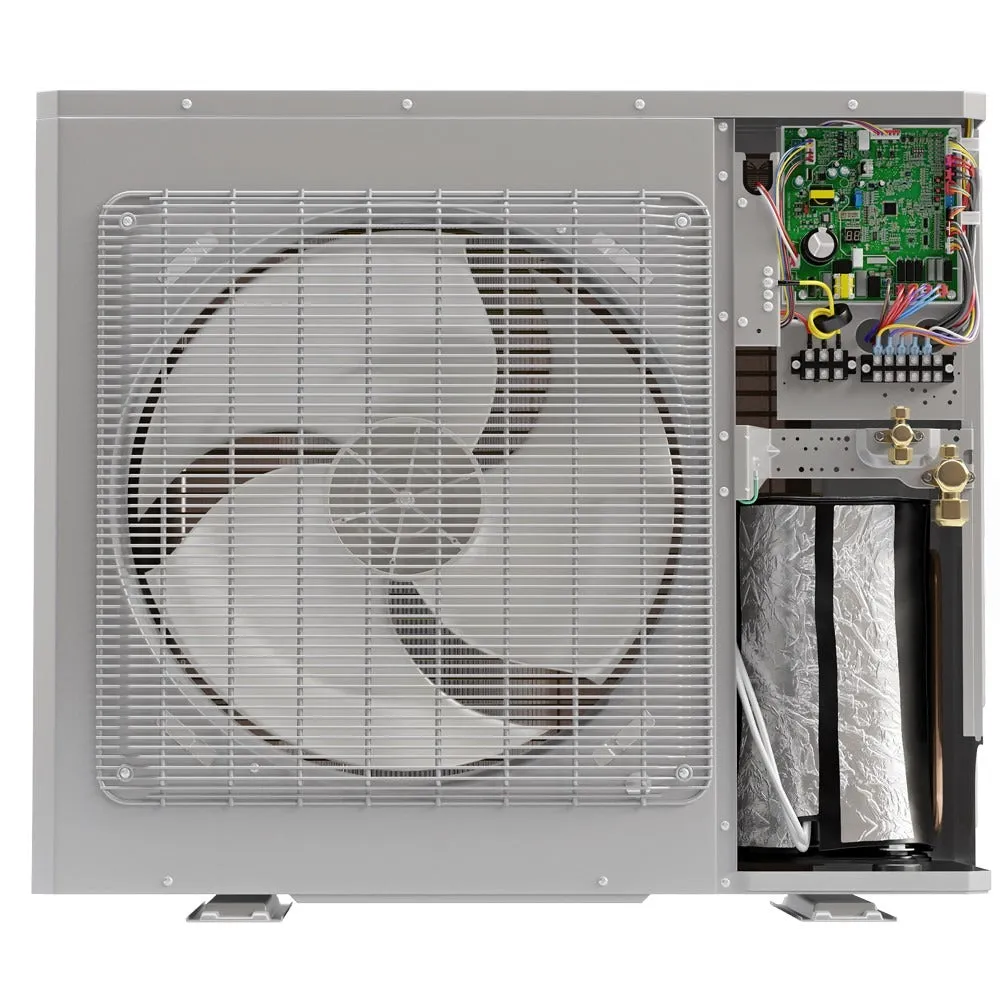

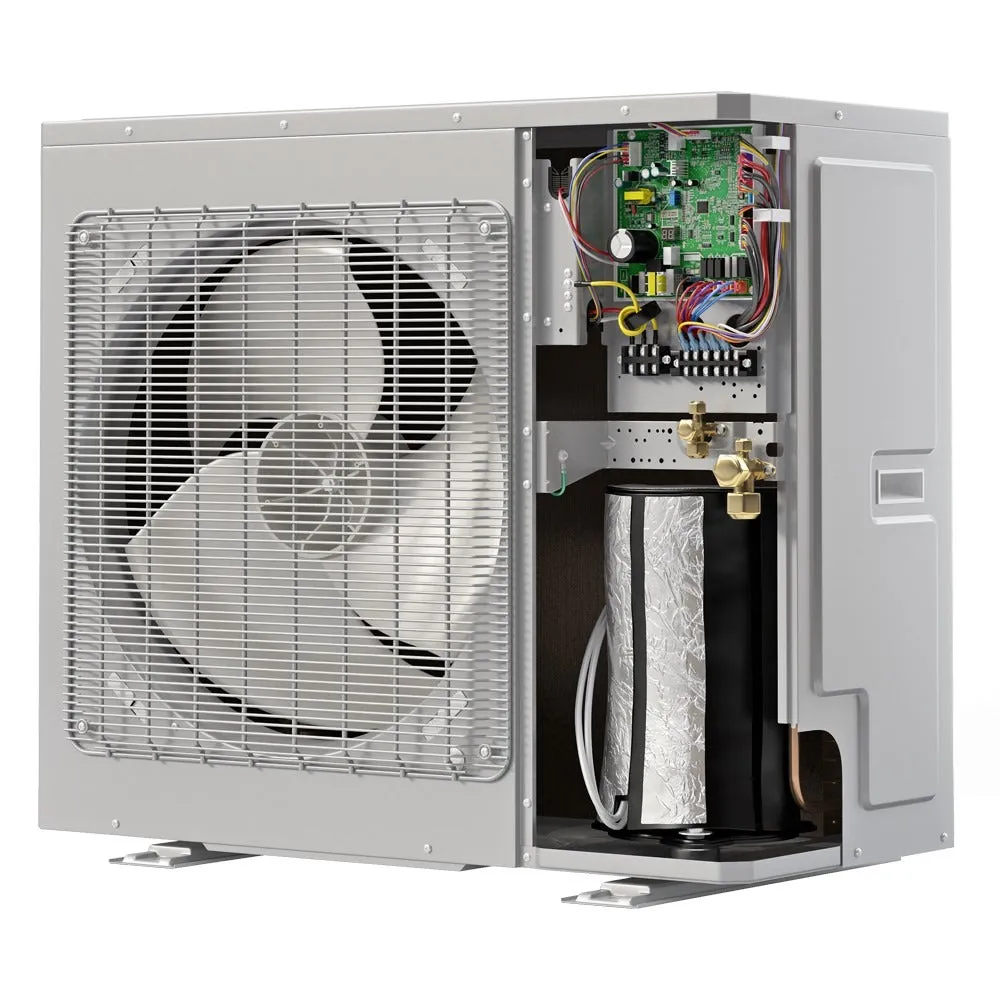

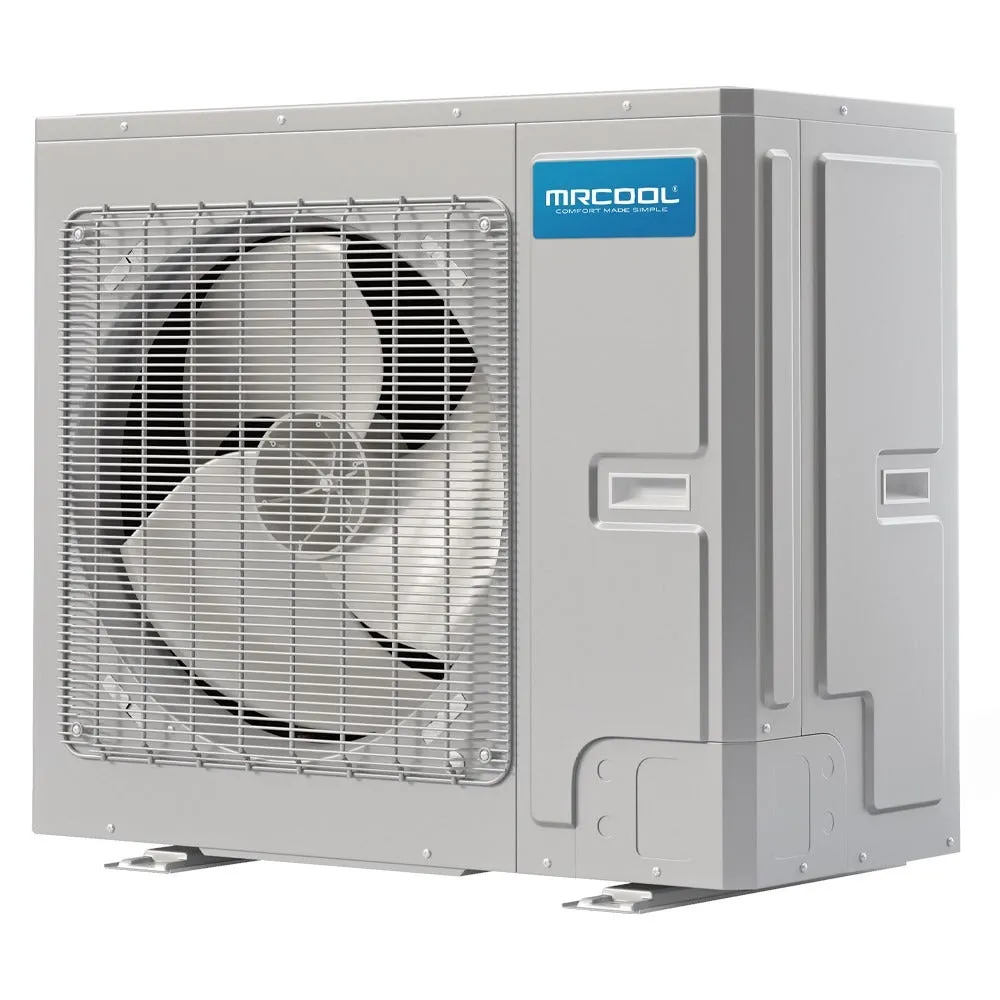

2 to 3 Ton 20 SEER MrCool Universal Central Air Conditioner Condenser - MDUCO18024036
The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser is ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 20 SEER rating.
- 2 Ton 20 SEER, 3 Ton 18 SEER
- Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty

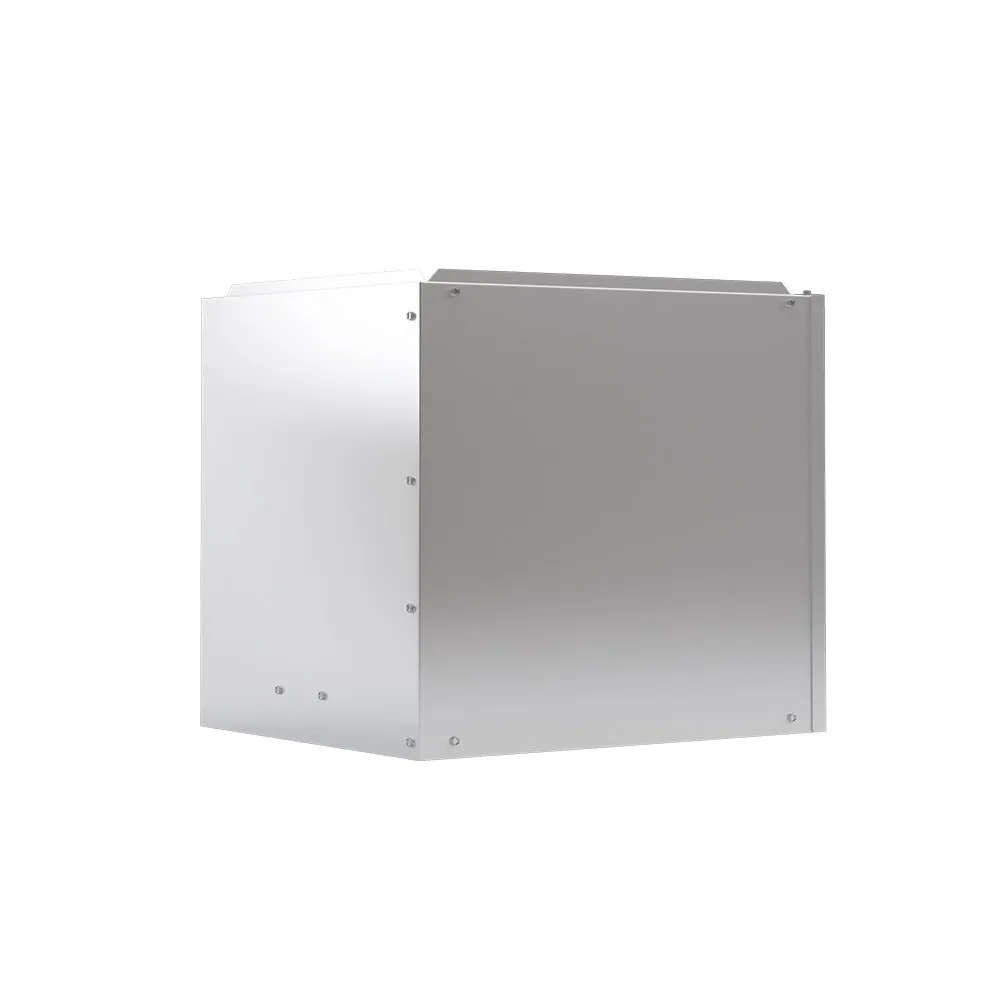

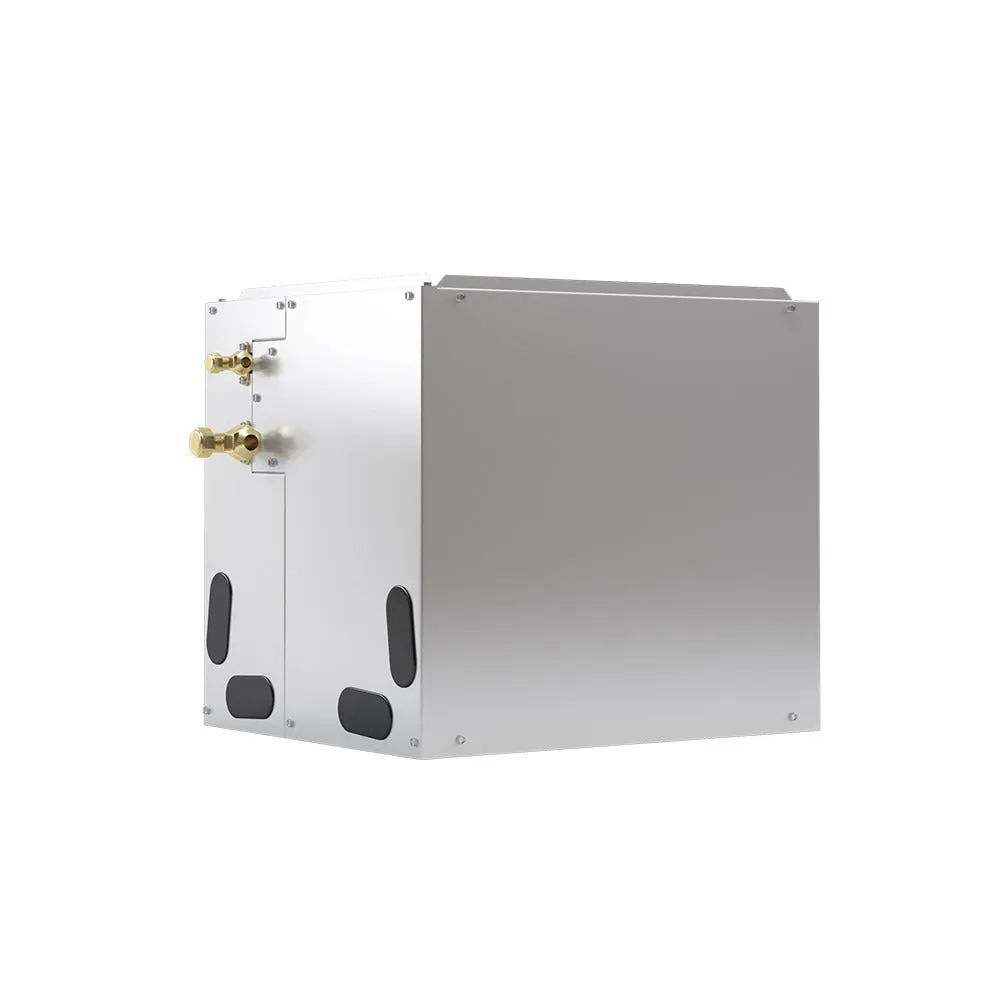

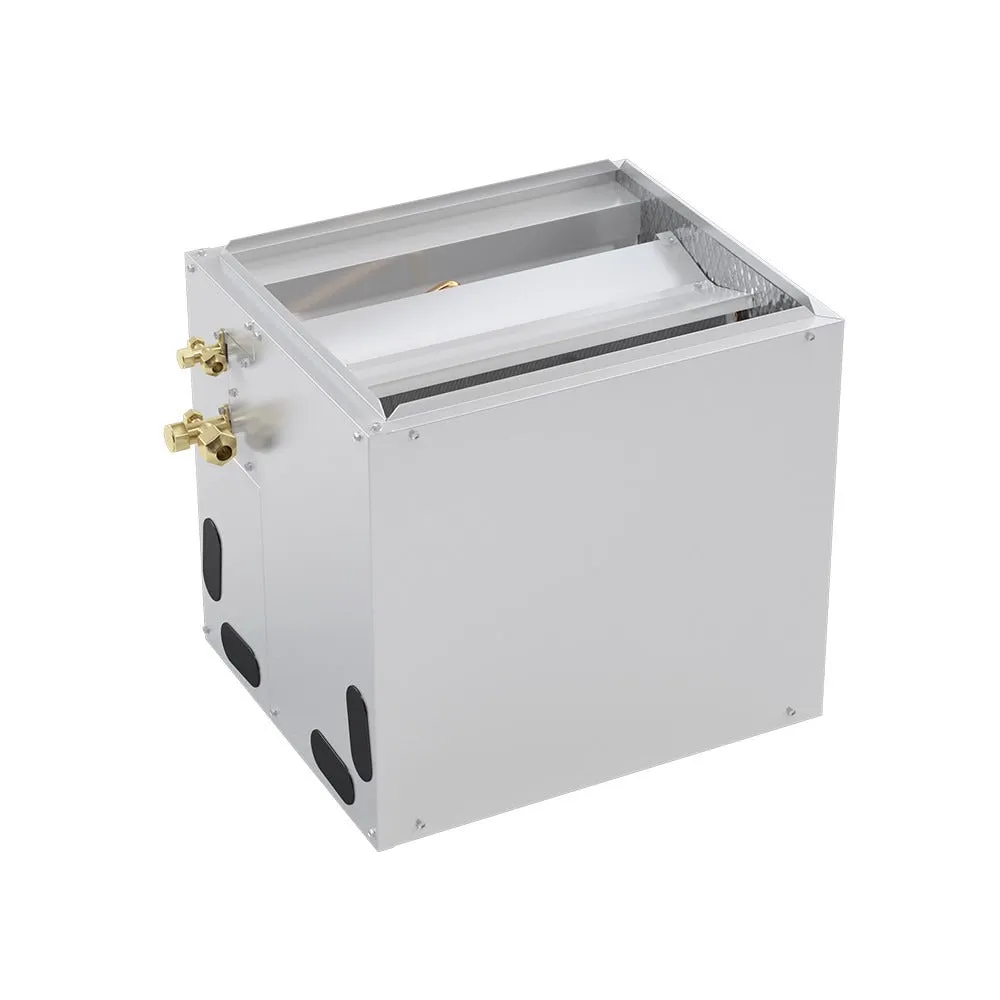

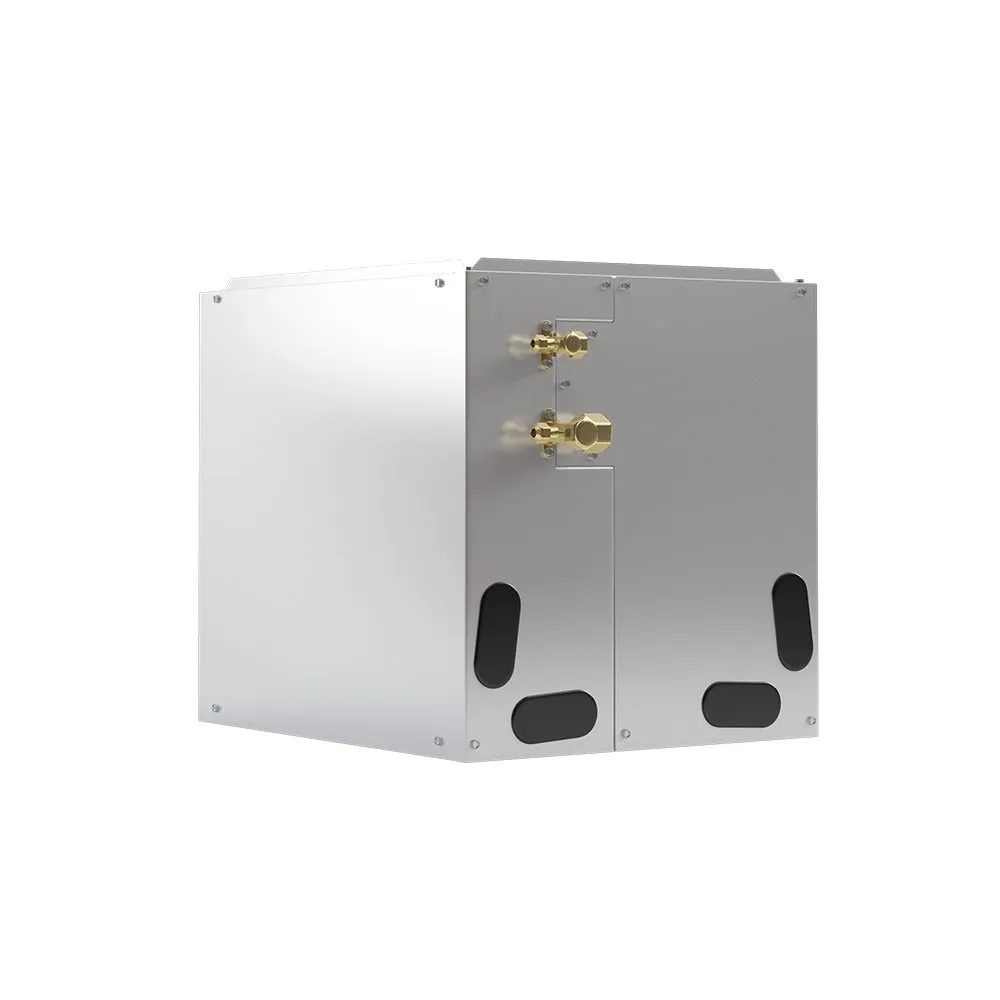

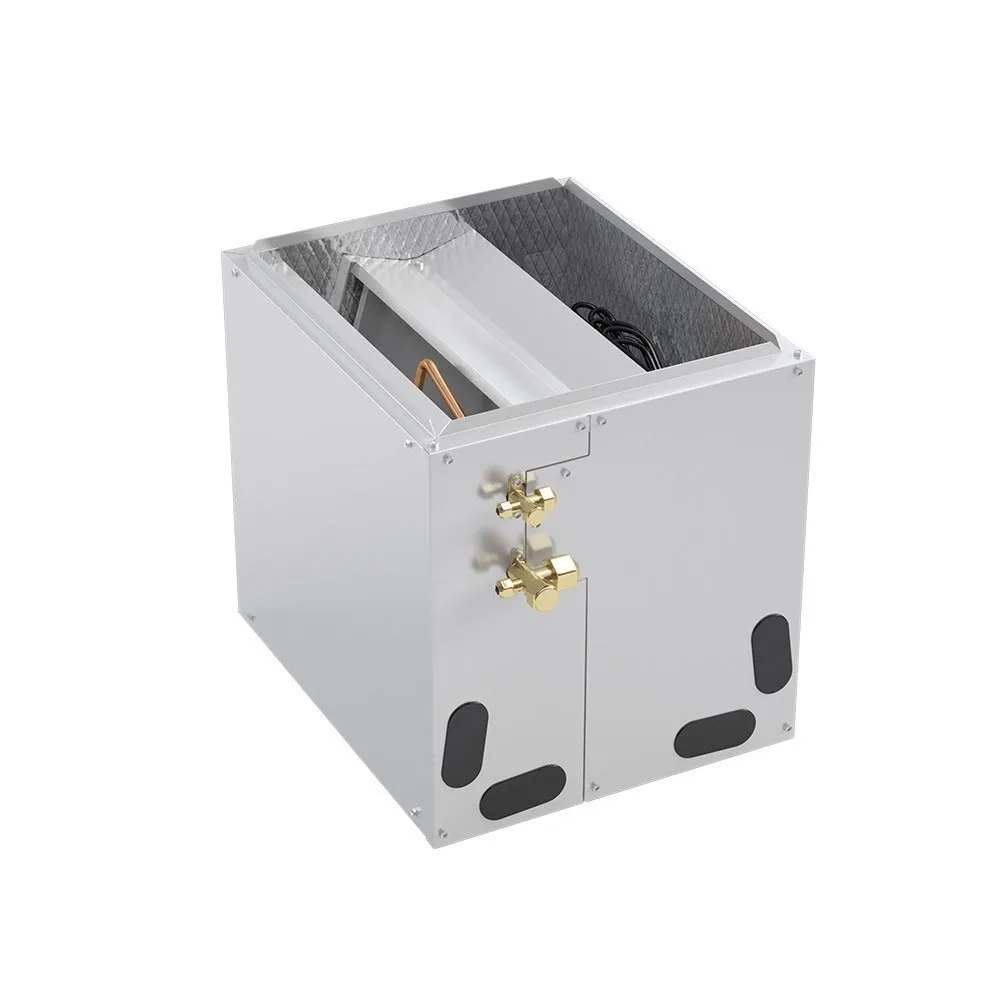

2 to 3 Ton MrCool Universal Evaporator Coil - MDUCC15024036
The Universal A-Coil is a versatile and adaptable option for your home comfort. It can be paired with other Universal units or as a replacement for an outdated, ineffective A-coil in your current system. The Universal A-Coil offers quieter operation and quick installation than many competitor models. It also features a liquid pipe designed to guard against excessive condensation. That could save you from costly property damage. It is equipped with multiple safeguards including protection against, high-pressure, high-discharge temperature, overload, IPM, and PFC in order to ensure effective and efficient operation for the life of the unit.
Bundled System Specifications:
| Brand | MRCOOL |
| Model | MDCACC18024036 |
| UPC | 810063869168 |
| AHRI Number | 207177526 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 12.5 |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | Prop 65 WARNING |
MDUCO18024036 Specifications:
| Brand | MRCOOL |
| Model | MDUCO18024036 |
| UPC | 810063867485 |
| Avg Coverage Area | 1,000 - 1,500 Sq Ft |
| Compressor | Inverter |
| Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Product Height (in) | 32.25 |
| Product Length (in) | 37 |
| Product Width (in) | 18.125 |
| Refrigerant | R-410a |
| Cooling Efficiency | 19 SEER and Above |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 208.3000 |
| Region Compatibility | North, Southeast |
MDUCC15024036 Specifications:
| Brand | MRCOOL |
| Model | MDUCC15024036 |
| UPC | 810063867522 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Product Height (in) | 23 |
| Product Length (in) | 21.25 |
| Product Width (in) | 17.5 |
| Refrigerant | R-410a |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year Parts |
| Weight (lbs) | 75.0000 |
